â
Line_NEXT_A (next)
ã
EFI2_B
ä
EFI2_A
Table 20: Pin assignment on the FX3-CPU3 main module with FX3-MLP1 system plug
Terminal Pin assignment
A1 24 V power supply for all modules, with the exception of the supply to
t
he outputs (Q1 … Q4)
A2 Power supply GND
EFI1_A Connections for EFI or for Flexi Link
EFI1_B
EFI2_B
EFI2_A
Line_PRE_A Connections for Flexi Line
Line_PRE_B
Line_NEXT_A
Line_NEXT_B
5.2.4 FX3-XTIO I/O module

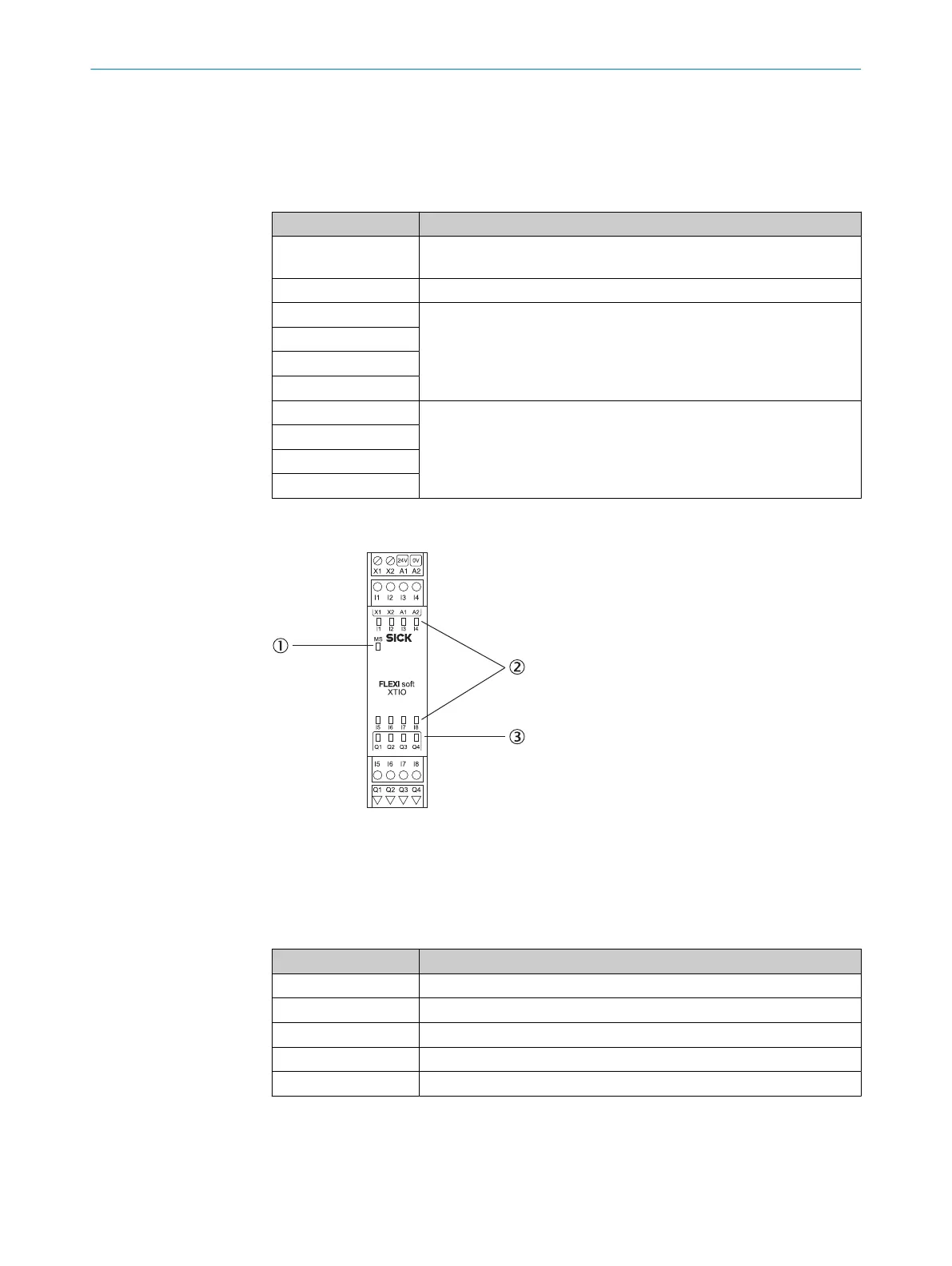

Figure 31: FX3-XTIO I/O module
1
MS LED (Module Status)
2
8 input LEDs
3
4 output LEDs
Table 21: Pin assignment for the FX3-XTIO I/O module
Terminal Pin assignment
A1 24 V
A2 GND
I1 … I8 Safety inputs 1 to 8
Q1 … Q4 Safety outputs 1 to 4
X1/X2 Test output 1/Test output 2
5 ELECTRICAL INSTALLATION
56
O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller 8012478/1IG6/2023-02-24 | SICK
Subject to change without notice

SICK Flexi Soft Specifications

General

Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Programming	Flexi Soft Designer
Power Supply	24 V DC
Safety Protocols	PROFIsafe, CIP Safety
Protection Class	IP20
Number of I/Os	Configurable
Operating Voltage	24 V DC
Power Consumption	Depends on configuration
Dimensions (W x H x D)	Varies depending on the module configuration
Weight	Varies depending on the module configuration
Number of Safety Inputs	Configurable
Number of Safety Outputs	Configurable
Safety Standard	IEC 61508, IEC 62061, ISO 13849
Operating Temperature	0°C to +55°C
Response Time	< 10 ms (typical)
Storage Temperature Range	-25°C to +70°C
Relative Humidity	15 % ... 95 %, non-condensing
