SICK Flexi Soft User Manual

5.2.9 Encoder/motor feedback connection units
Overview
T
he encoder/motor feedback connection units available as accessories facilitate the
connection of encoders to the encoder interface of the FX3-MOCx modules. This is
especially true for encoders that are used both for an FX3 MOCx and as motor feedback
of a drive system.
There are additional terminals on all encoder/motor feedback connection boxes. These
are designed for forwarding signals which are not required for the FX3-MOCx module
but can still be transmitted in the encoder cable (brake actuation, temperature sensor,
etc.).
Prerequisites
•
Mount encoder/mo
tor feedback connection units in an environment that complies
with enclosure rating IP54 (EN 60529), e.g. in a control cabinet with enclosure
rating IP54.
Encoder/motor feedback connection units
On r
ecommended connection types see "Connection of encoders", page 92.

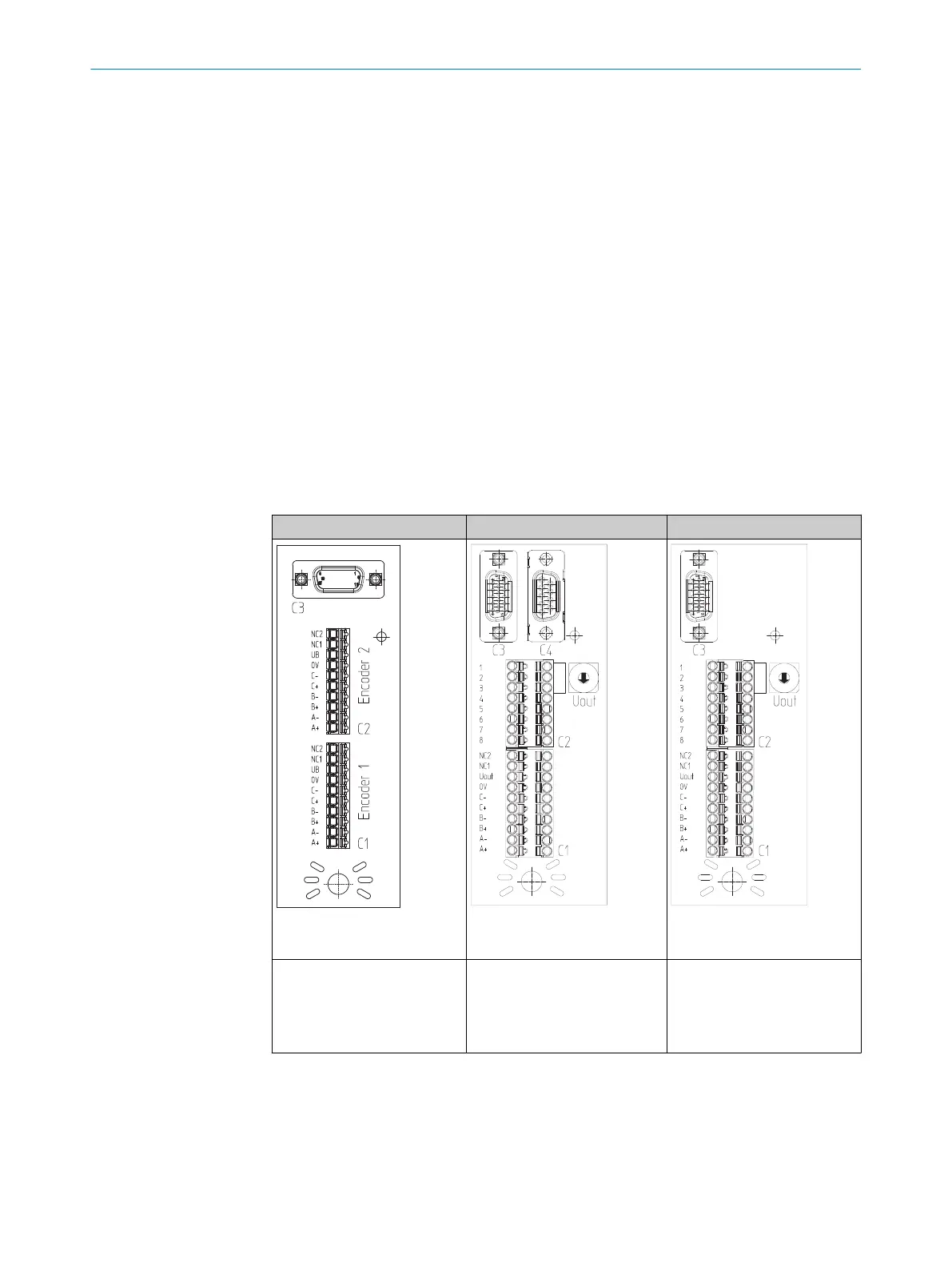

Table 26: Encoder/motor feedback connection units
FX3-EBX1 connection unit FX3-EBX3 connection unit FX3-EBX4 connection unit
Figure 36: FX3-EBX1 connec‐
t
ion overview
Figure 37: FX3-EBX3 connec‐
t
ion overview
Figure 38: FX3-EBX4 connec‐
t
ion overview
•
C
onnection option for 2
encoders
•
2 additional free terminals
per encoder for forwarding
signals.
•
Connection option for 1
encoder
•
10 additional free terminals
for forwarding signals.
•
Connection option for 2
encoders
•
2 additional free terminals
for encoder 1 for forward‐
ing signals.
ELECTRICAL INSTALLATION 5
8012478/1IG6/2023-02-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller
61
Subject to change without notice

SICK Flexi Soft Specifications

General

Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Programming	Flexi Soft Designer
Power Supply	24 V DC
Safety Protocols	PROFIsafe, CIP Safety
Protection Class	IP20
Number of I/Os	Configurable
Operating Voltage	24 V DC
Power Consumption	Depends on configuration
Dimensions (W x H x D)	Varies depending on the module configuration
Weight	Varies depending on the module configuration
Number of Safety Inputs	Configurable
Number of Safety Outputs	Configurable
Safety Standard	IEC 61508, IEC 62061, ISO 13849
Operating Temperature	0°C to +55°C
Response Time	< 10 ms (typical)
Storage Temperature Range	-25°C to +70°C
Relative Humidity	15 % ... 95 %, non-condensing
