Mechanical data
T
able 190: Mechanical data diode module DM8-A4K
Diode module DM8-A4K
Dimensions (W × H × D) 32mm × 87mm × 72mm
Weight 59g
Ambient data
T
able 191: Ambient data diode module DM8-A4K
Diode module DM8-A4K
Ambient operating temperature
(UL/C
SA: surrounding air tempera‐
ture)
-25 ... +55°C
Storage temperature -25 ... +70°C
Enclosure rating IP00

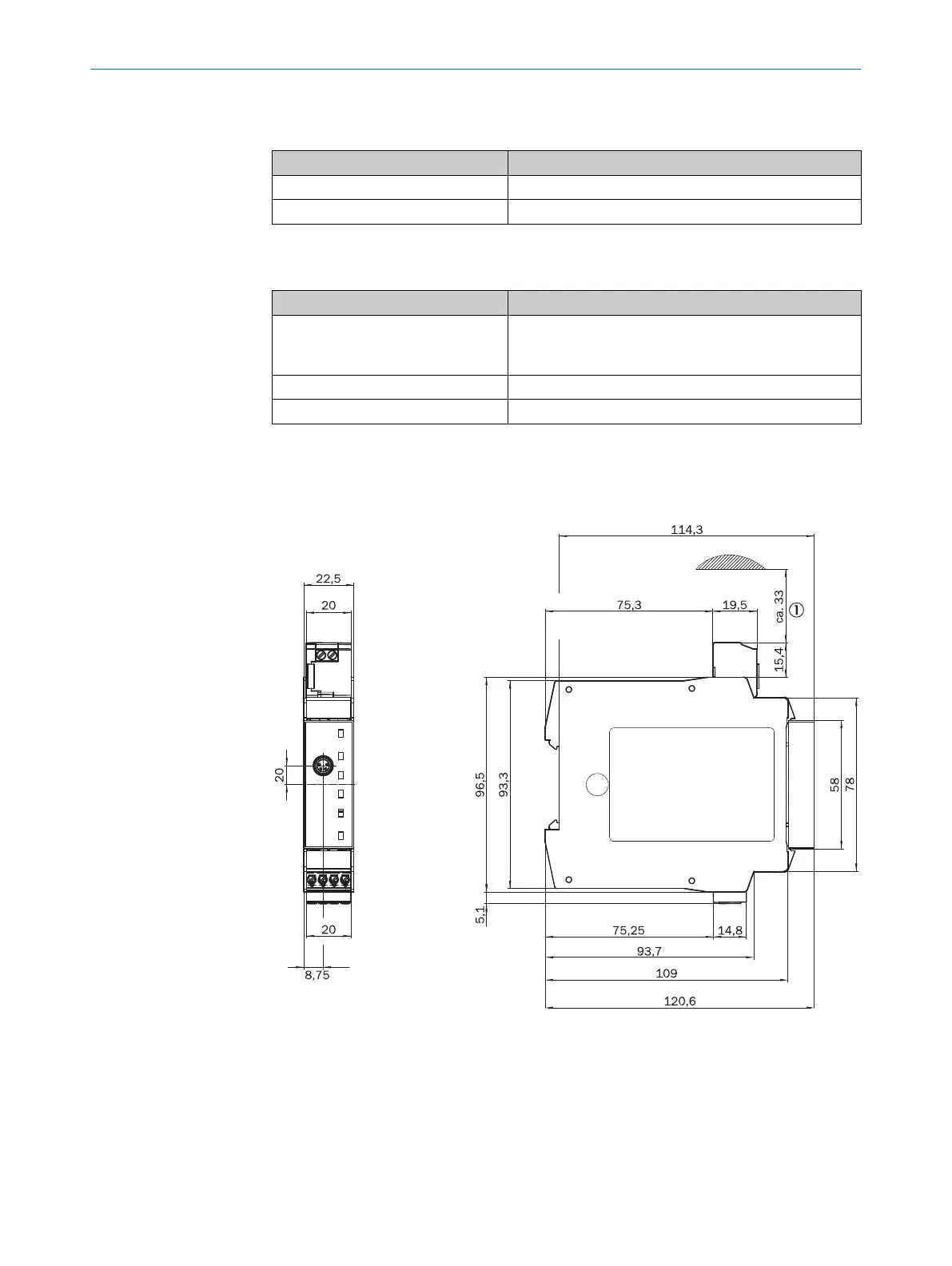

12.4 Dimensional drawings
12.4.1 FX3-CPUx main modules with system plug
Figure 70: Dimensioned drawing FX3-CPUx (mm)
1
Connector range
TECHNICAL DATA 12
8012478/1IG6/2023-02-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller
171
Subject to change without notice

SICK Flexi Soft Specifications

General

Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Programming	Flexi Soft Designer
Power Supply	24 V DC
Safety Protocols	PROFIsafe, CIP Safety
Protection Class	IP20
Number of I/Os	Configurable
Operating Voltage	24 V DC
Power Consumption	Depends on configuration
Dimensions (W x H x D)	Varies depending on the module configuration
Weight	Varies depending on the module configuration
Number of Safety Inputs	Configurable
Number of Safety Outputs	Configurable
Safety Standard	IEC 61508, IEC 62061, ISO 13849
Operating Temperature	0°C to +55°C
Response Time	< 10 ms (typical)
Storage Temperature Range	-25°C to +70°C
Relative Humidity	15 % ... 95 %, non-condensing
