FX3-CPU3 main module

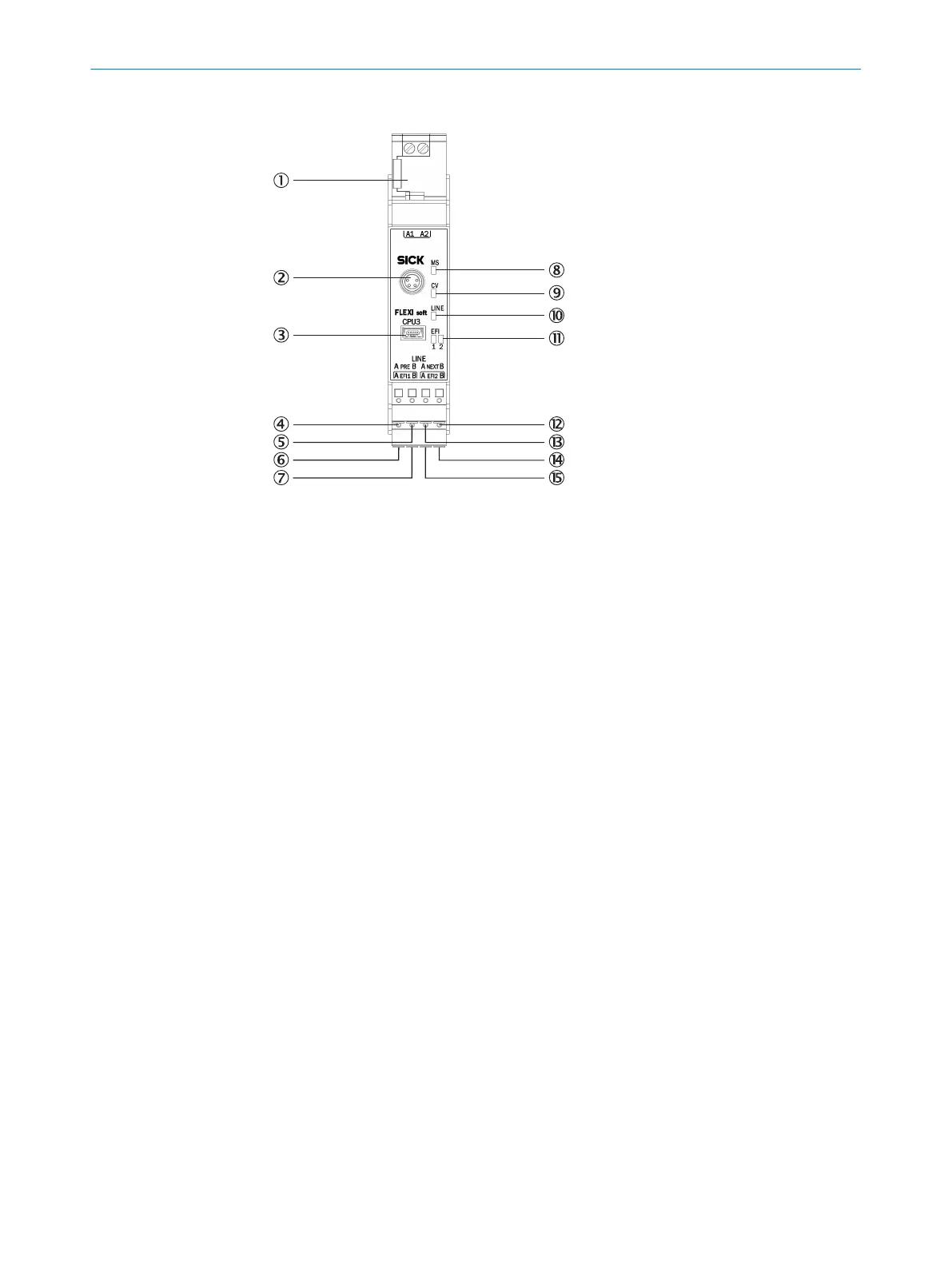

Figure 6: FX3-CPU3 main module
1
FX3-MPL1 system plug
2
RS-232 interface
3
USB interface
4
Line_PRE_A (previous)
5
Line_PRE_B (previous)
6
EFI1_A
7
EFI1_B
8
MS LED (Module St
atus)
9
CV LED (Configuration Verified)
ß
LINE LED
à
EFI1 and EFI2 LEDs
á
Line_NEXT_B (next)
â
Line_NEXT_A (next)
ã
EFI2_B
ä
EFI2_A
Further topics
•
"F
lexi Line", page 46
•
"USB", page 43
3.4.5 FX3-MPL0 and FX3-MPL1 system plugs
Overview
T
here is a system plug at each main module. The system configuration for the entire
Flexi Soft system is stored only in the system plug. This is beneficial when replacing
modules, because it means that a full reconfiguration of the Flexi Soft system is not
required.
PRODUCT DESCRIPTION 3
8012478/1IG6/2023-02-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller
23
Subject to change without notice

SICK Flexi Soft Specifications

General

Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Programming	Flexi Soft Designer
Power Supply	24 V DC
Safety Protocols	PROFIsafe, CIP Safety
Protection Class	IP20
Number of I/Os	Configurable
Operating Voltage	24 V DC
Power Consumption	Depends on configuration
Dimensions (W x H x D)	Varies depending on the module configuration
Weight	Varies depending on the module configuration
Number of Safety Inputs	Configurable
Number of Safety Outputs	Configurable
Safety Standard	IEC 61508, IEC 62061, ISO 13849
Operating Temperature	0°C to +55°C
Response Time	< 10 ms (typical)
Storage Temperature Range	-25°C to +70°C
Relative Humidity	15 % ... 95 %, non-condensing
