SICK Flexi Soft User Manual

1× M12, female con‐
nec
tor, 8-pin
Micro D-sub male connector of the FX3-MOCx Wiring
PIN PIN Designation SSI encoder
5 3 ENC1_C+ Clock+
6 11 ENC1_C– Clock-
7 12 ENC_0V GND connection for
encoder
8 4 ENC1_24V 24V voltage supply for
encoder
Further topics
•
"FX3-MOCx mo
tion control module", page 59
•
"Accessories for the motion control module", page 182
5.2.12 FX3-ANA0 analog input module
1
2
3

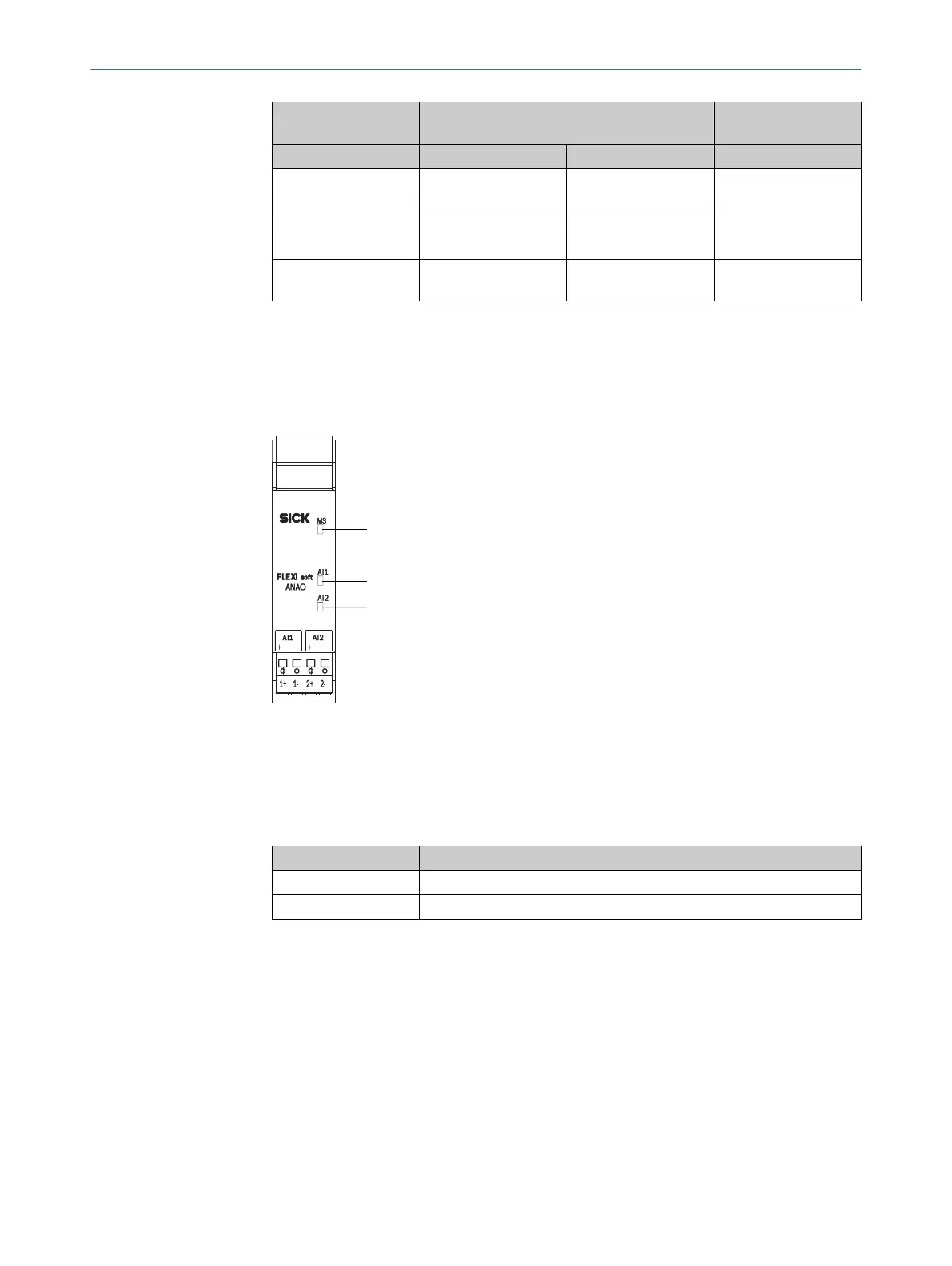

Figure 43: FX3-ANA0 analog input module
1
MS LED (module status)
2
LED AI1
3
LED AI2
Table 46: Pin assignment for the FX3-ANA0 analog input module
Terminal Pin assignment
1+, 1– Analog input AI1
2+, 2– Analog input AI2
5 ELECTRICAL INSTALLATION
74
O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller 8012478/1IG6/2023-02-24 | SICK
Subject to change without notice

SICK Flexi Soft Specifications

General

Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Programming	Flexi Soft Designer
Power Supply	24 V DC
Safety Protocols	PROFIsafe, CIP Safety
Protection Class	IP20
Number of I/Os	Configurable
Operating Voltage	24 V DC
Power Consumption	Depends on configuration
Dimensions (W x H x D)	Varies depending on the module configuration
Weight	Varies depending on the module configuration
Number of Safety Inputs	Configurable
Number of Safety Outputs	Configurable
Safety Standard	IEC 61508, IEC 62061, ISO 13849
Operating Temperature	0°C to +55°C
Response Time	< 10 ms (typical)
Storage Temperature Range	-25°C to +70°C
Relative Humidity	15 % ... 95 %, non-condensing
