12 Technical data
12.1 Minimum switch-off time
The minimum switch-off this (e.g. of the connected sensors) is the minimum time
dur
ing which a switch-off condition must be present to be recognized by the Flexi Soft
system.
The minimum switch-off time must correspond to the following requirements:
•
It must be greater than the logic execution time +1ms.
And:
•
W
hen connected to the device via a Flexi Soft test output, it must be greater than
the test gap + the maximum OFF-ON delay, when the test gap is >1ms.
And:
•
It must be greater than the test period (i.e. the higher value of the two test outputs
used) + the maximum OFF-ON delay if safety mats or bumpers are used.
9)
The minimum switch-off time of the sensors is usually listed in the technical data for
the sensors.
12.2 Maximum response time of the Flexi Soft system
All paths must be taken into account when calculating the response times in a Flexi
S
oft system.

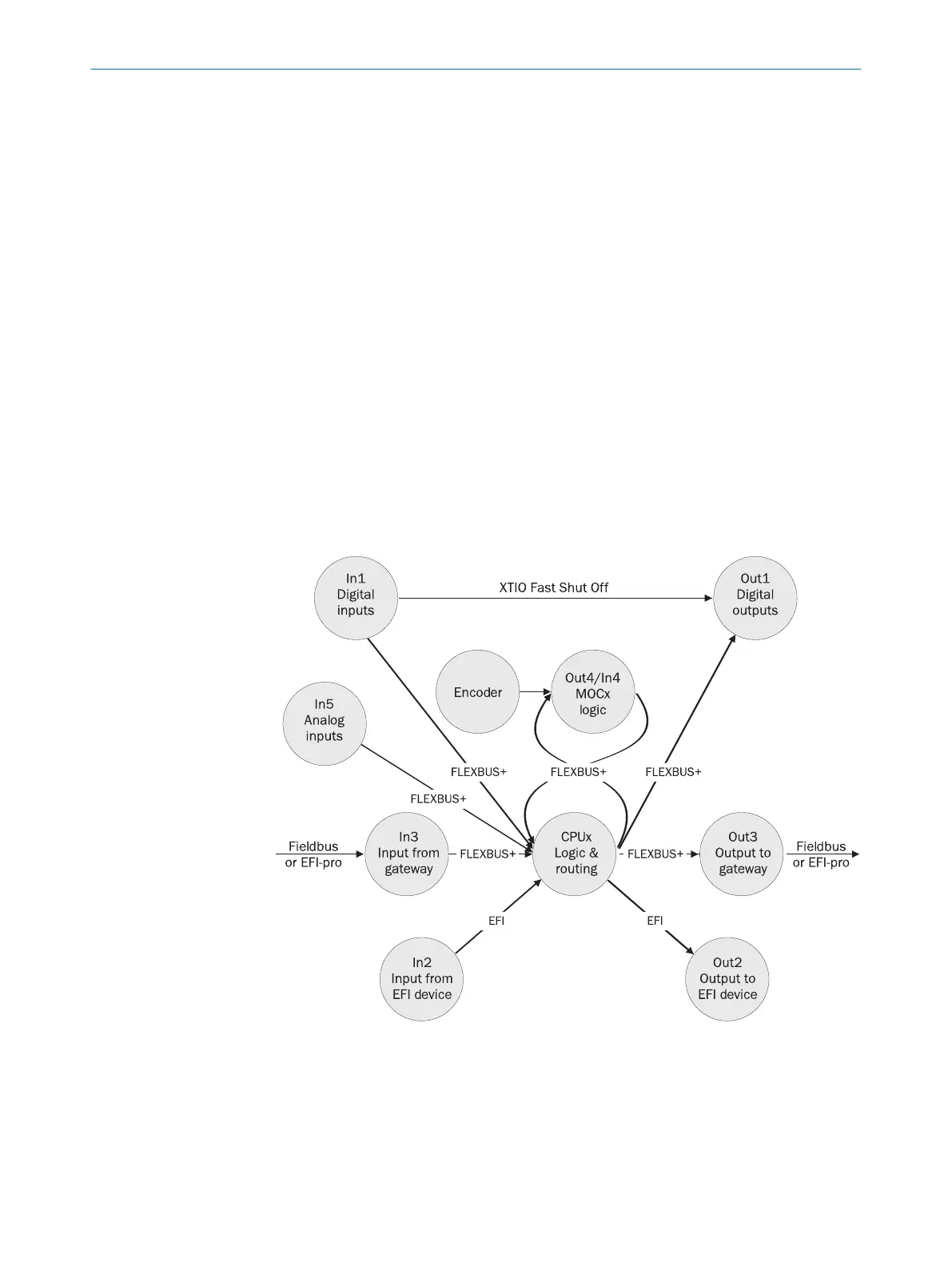

Figure 65: Response times within a Flexi Soft system
Fast shut-off
T
he fast shut-off function is supported on FX3-XTIO I/O modules. This function enables
a response time of 8 ms to be achieved.
9)
T
ake the values from the report in the configuration software.
12 T
ECHNICAL DATA
130
O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller 8012478/1IG6/2023-02-24 | SICK
Subject to change without notice

SICK Flexi Soft Specifications

General

Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Programming	Flexi Soft Designer
Power Supply	24 V DC
Safety Protocols	PROFIsafe, CIP Safety
Protection Class	IP20
Number of I/Os	Configurable
Operating Voltage	24 V DC
Power Consumption	Depends on configuration
Dimensions (W x H x D)	Varies depending on the module configuration
Weight	Varies depending on the module configuration
Number of Safety Inputs	Configurable
Number of Safety Outputs	Configurable
Safety Standard	IEC 61508, IEC 62061, ISO 13849
Operating Temperature	0°C to +55°C
Response Time	< 10 ms (typical)
Storage Temperature Range	-25°C to +70°C
Relative Humidity	15 % ... 95 %, non-condensing
