SICK Flexi Soft User Manual

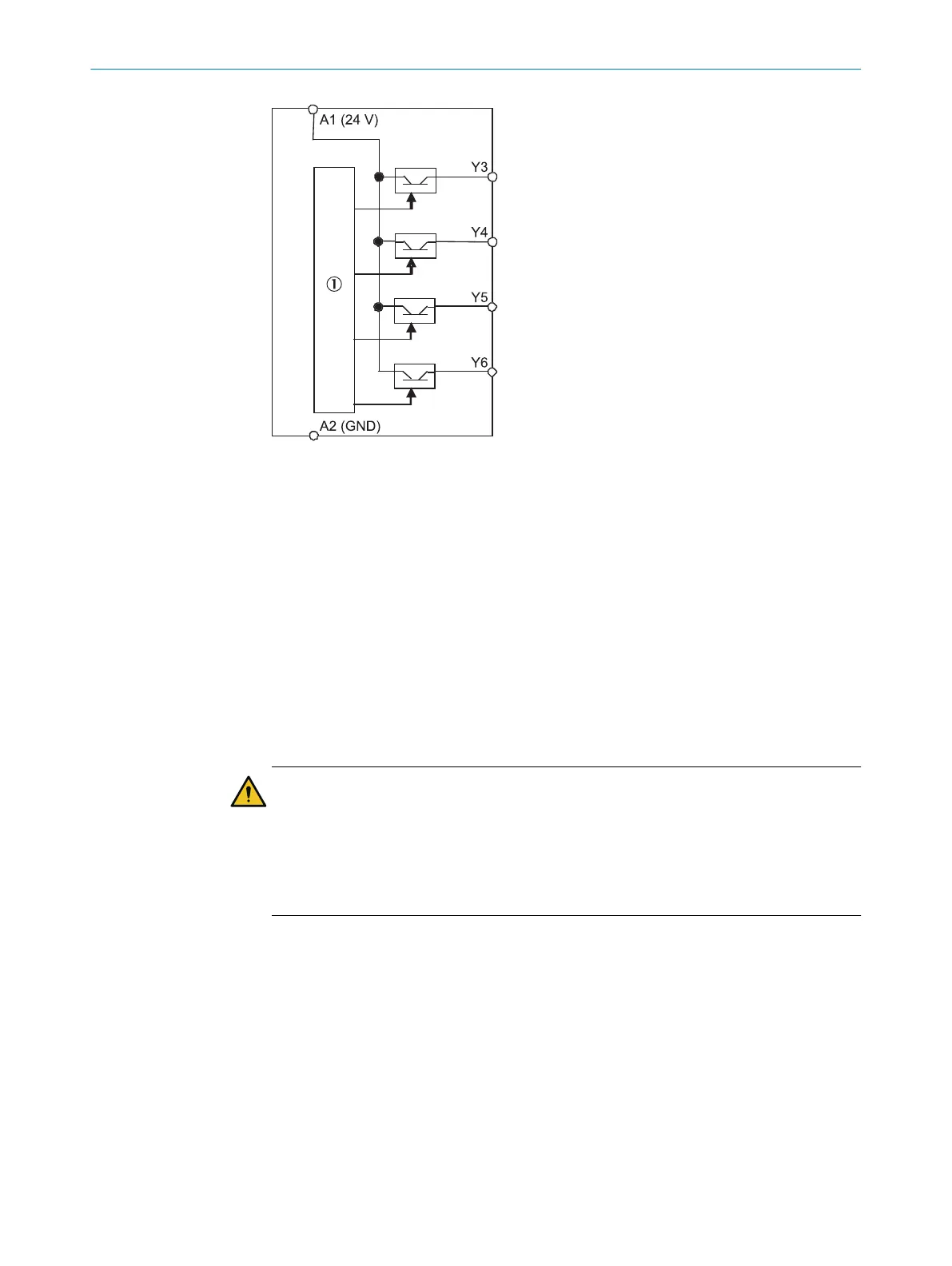

Figure 14: Internal structure of the FX3-XTDS – non-safe outputs
1
Internal logic
3.4.9 FX0-STIO I/O module
Overview
T
he FX0-STIO module is an expansion module with 6 non-safe inputs, 6 non-safe
outputs, and 2 connections that can be used as either non-safe inputs or non-safe
outputs.
The FX0-STIO module supports the following functions:
•
Forwarding of information at inputs I1 to I6 to the main module
•
Receipt of control signals from the main module and corresponding switching of
outputs
Important information
WARNING
Im
proper use of the non-safe modules
The dangerous state may not be stopped or not be stopped in a timely manner in the
event of non-compliance.
The target safety-related level may not be achieved in the event of non-compliance.
►
Do not use the FX0-STIO for safety-related functions.
Prerequisites
•
T
he module can only be operated with a main module.
I/O module FX0-STIO
T
he internal logic is supplied with voltage via the system plug and the internal FLEX‐
BUS+ bus.
The voltage supply of the outputs Y1 to Y6 and the IY7 and IY8 connections of the
FX0-STIO must be provided directly via A1/A2 on the respective module.
The IY7 and IY8 connections on a FX0-STIO module can be used either as non-safety
inputs or non-safety outputs.
3 P
RODUCT DESCRIPTION
32
O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller 8012478/1IG6/2023-02-24 | SICK
Subject to change without notice

SICK Flexi Soft Specifications

General

Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Programming	Flexi Soft Designer
Power Supply	24 V DC
Safety Protocols	PROFIsafe, CIP Safety
Protection Class	IP20
Number of I/Os	Configurable
Operating Voltage	24 V DC
Power Consumption	Depends on configuration
Dimensions (W x H x D)	Varies depending on the module configuration
Weight	Varies depending on the module configuration
Number of Safety Inputs	Configurable
Number of Safety Outputs	Configurable
Safety Standard	IEC 61508, IEC 62061, ISO 13849
Operating Temperature	0°C to +55°C
Response Time	< 10 ms (typical)
Storage Temperature Range	-25°C to +70°C
Relative Humidity	15 % ... 95 %, non-condensing
