SICK Flexi Soft - Page 33

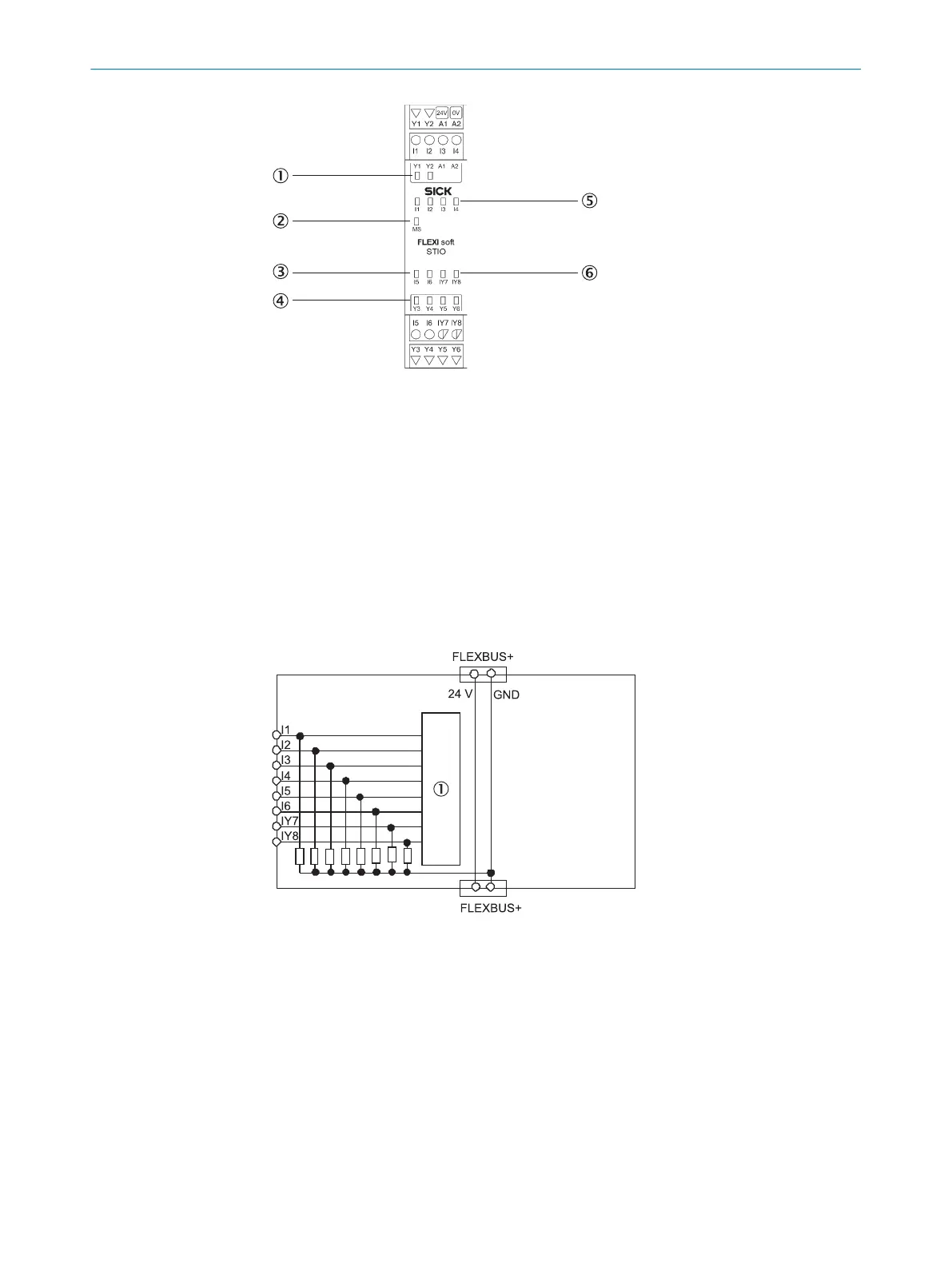

Figure 15: I/O module FX0-STIO
1
2 output LEDs
2
MS LED (Module St
atus)
3
2 input LEDs
4
4 output LEDs
5
4 input LEDs
6
2 LEDs for configurable inputs or outputs
Further topics
•
"C
onstruction and function", page 17
3.4.9.1 Internal circuitry
Figure 16: Internal structure of the FX0-STIO – non-safe inputs
1
Internal logic
