FX3-CPU2 main module

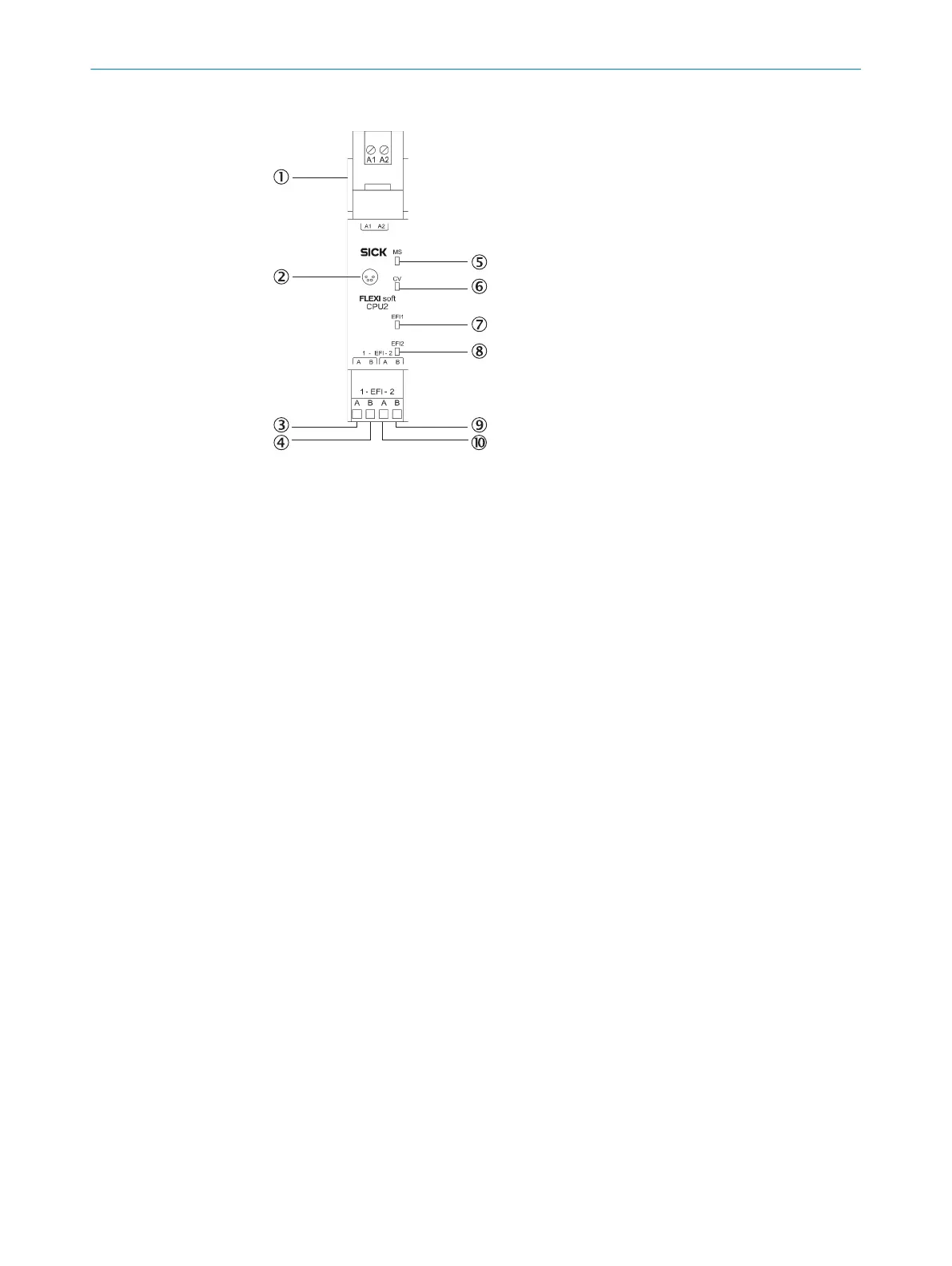

Figure 5: FX3-CPU2 main module
1
FX3-MPL1 system plug
2
RS-232 interface
3
EFI1_A
4
EFI1_B
5
MS LED (Module St
atus)
6
CV LED (Configuration Verified)
7
EFI1 LED
8
EFI2 LED
9
EFI2_B
ß
EFI2_A
Further topics
•
A
CR: "Automatic configuration recovery (ACR)", page 47 and “Flexi Soft in Flexi
Soft Designer configuration software” operating instructions.
3.4.4 FX3-CPU3 main module
Overview
T
he functions of the FX3-CPU3 main module are the same as those of the FX3-CPU2
main module.
This module also has a Flexi Line interface to support the safe networking of up to 32
Flexi Soft stations.
Prerequisites
•
T
he main module can only be operated together with the FX3-MPL1 system plug.
3 P
RODUCT DESCRIPTION
22
O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller 8012478/1IG6/2023-02-24 | SICK
Subject to change without notice

SICK Flexi Soft Specifications

General

Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Programming	Flexi Soft Designer
Power Supply	24 V DC
Safety Protocols	PROFIsafe, CIP Safety
Protection Class	IP20
Number of I/Os	Configurable
Operating Voltage	24 V DC
Power Consumption	Depends on configuration
Dimensions (W x H x D)	Varies depending on the module configuration
Weight	Varies depending on the module configuration
Number of Safety Inputs	Configurable
Number of Safety Outputs	Configurable
Safety Standard	IEC 61508, IEC 62061, ISO 13849
Operating Temperature	0°C to +55°C
Response Time	< 10 ms (typical)
Storage Temperature Range	-25°C to +70°C
Relative Humidity	15 % ... 95 %, non-condensing
