SICK Flexi Soft User Manual

FX3-CPU1 main module

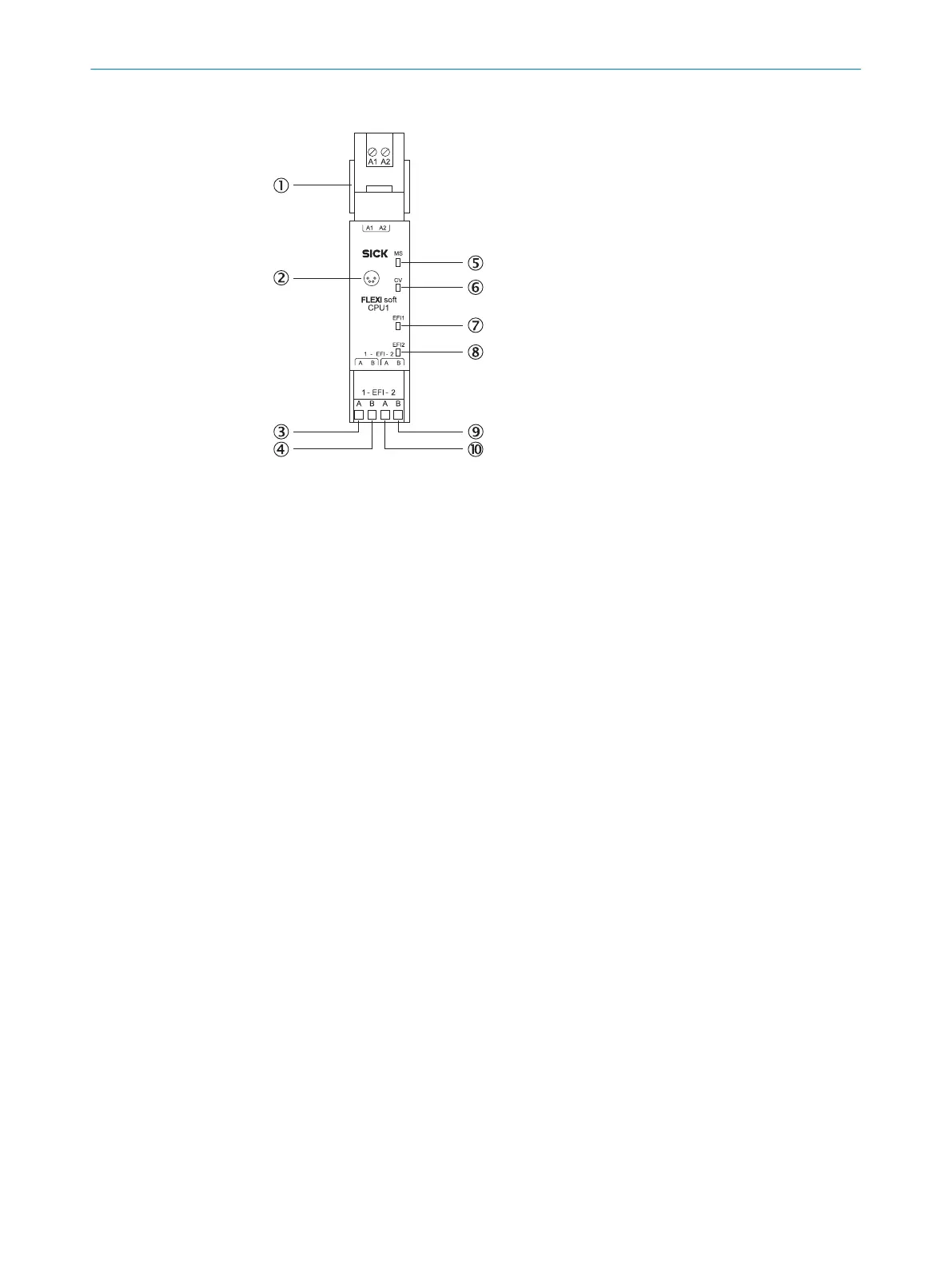

Figure 4: FX3-CPU1 main module
1
FX3-MPL0 system plug
2
RS-232 interface
3
EFI1_A
4
EFI1_B
5
MS LED (Module Status)
6
CV LED (Configuration Verified)
7
EFI1 LED
8
EFI2 LED
9
EFI2_B
ß
EFI2_A
Further topics
•
"F
lexi Line", page 46
•
"Enhanced Function Interface (EFI)", page 44
3.4.3 FX3-CPU2 main module
Overview
T
he functions of the FX3-CPU2 main module are the same as those of the FX3-CPU1
main module.
In addition, the FX3-CPU2 main module has a function for automatic configuration of
connected EFI-capable devices (ACR).
Prerequisites
•
T
he main module can only be operated together with the FX3-MPL1 system plug.
PRODUCT DESCRIPTION 3
8012478/1IG6/2023-02-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller
21
Subject to change without notice
