SICK Flexi Soft User Manual

Important information
WARNING
Ine
ffectiveness of the protective device due to undetected short-circuits between the
test pulse generators
The dangerous state may not be stopped or not be stopped in a timely manner in the
event of non-compliance.
►
Rule out short-circuits between the odd-numbered test outputs X1, X3, X5 and X7
through suitable wiring (e.g. separate routing, protected cables).
►
Rule out short-circuits between the even-numbered test outputs X2, X4, X6 and X8
through suitable wiring (e.g. separate routing, protected cables).
►
Configure the test outputs of the Flexi Soft expansion modules with test pulse
widths ≤4ms and a test pulse interval ≥200ms.
Prerequisites
•
T
he module can only be operated with a main module.
I/O module FX3-XTDI
T
he voltage supply for the internal logic and the test outputs is provided via the system
plug and the internal FLEXBUS+ bus.

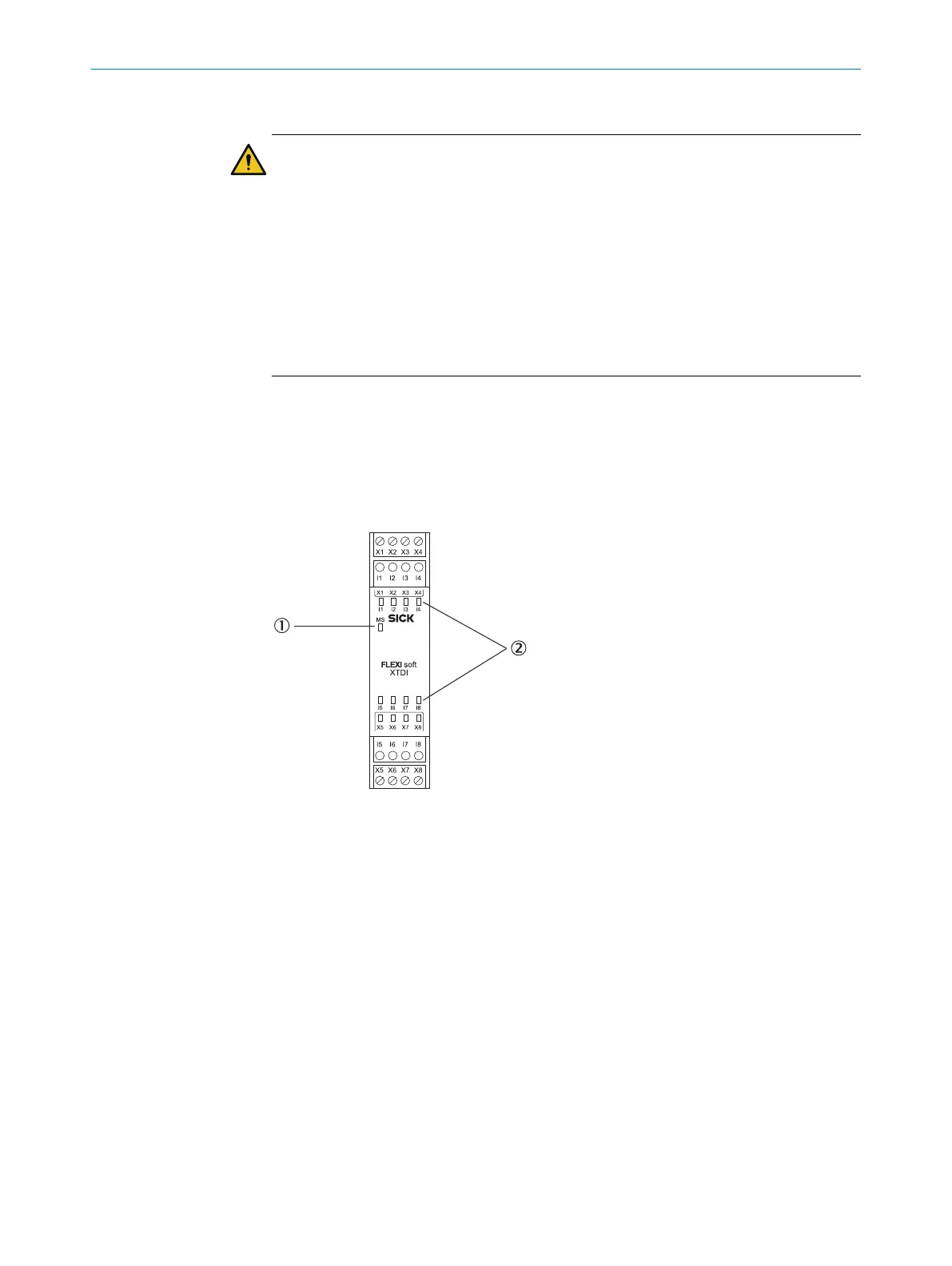

Figure 10: I/O module FX3-XTDI
1
MS LED (Module St
atus)
2
8 input LEDs
Further topics
•
"C
onstruction and function", page 17
•
"Connection of devices", page 77
PRODUCT DESCRIPTION 3
8012478/1IG6/2023-02-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller
29
Subject to change without notice

SICK Flexi Soft Specifications

General

Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Programming	Flexi Soft Designer
Power Supply	24 V DC
Safety Protocols	PROFIsafe, CIP Safety
Protection Class	IP20
Number of I/Os	Configurable
Operating Voltage	24 V DC
Power Consumption	Depends on configuration
Dimensions (W x H x D)	Varies depending on the module configuration
Weight	Varies depending on the module configuration
Number of Safety Inputs	Configurable
Number of Safety Outputs	Configurable
Safety Standard	IEC 61508, IEC 62061, ISO 13849
Operating Temperature	0°C to +55°C
Response Time	< 10 ms (typical)
Storage Temperature Range	-25°C to +70°C
Relative Humidity	15 % ... 95 %, non-condensing
