FX3-EBX4 dual encoder/motor feedback connection box

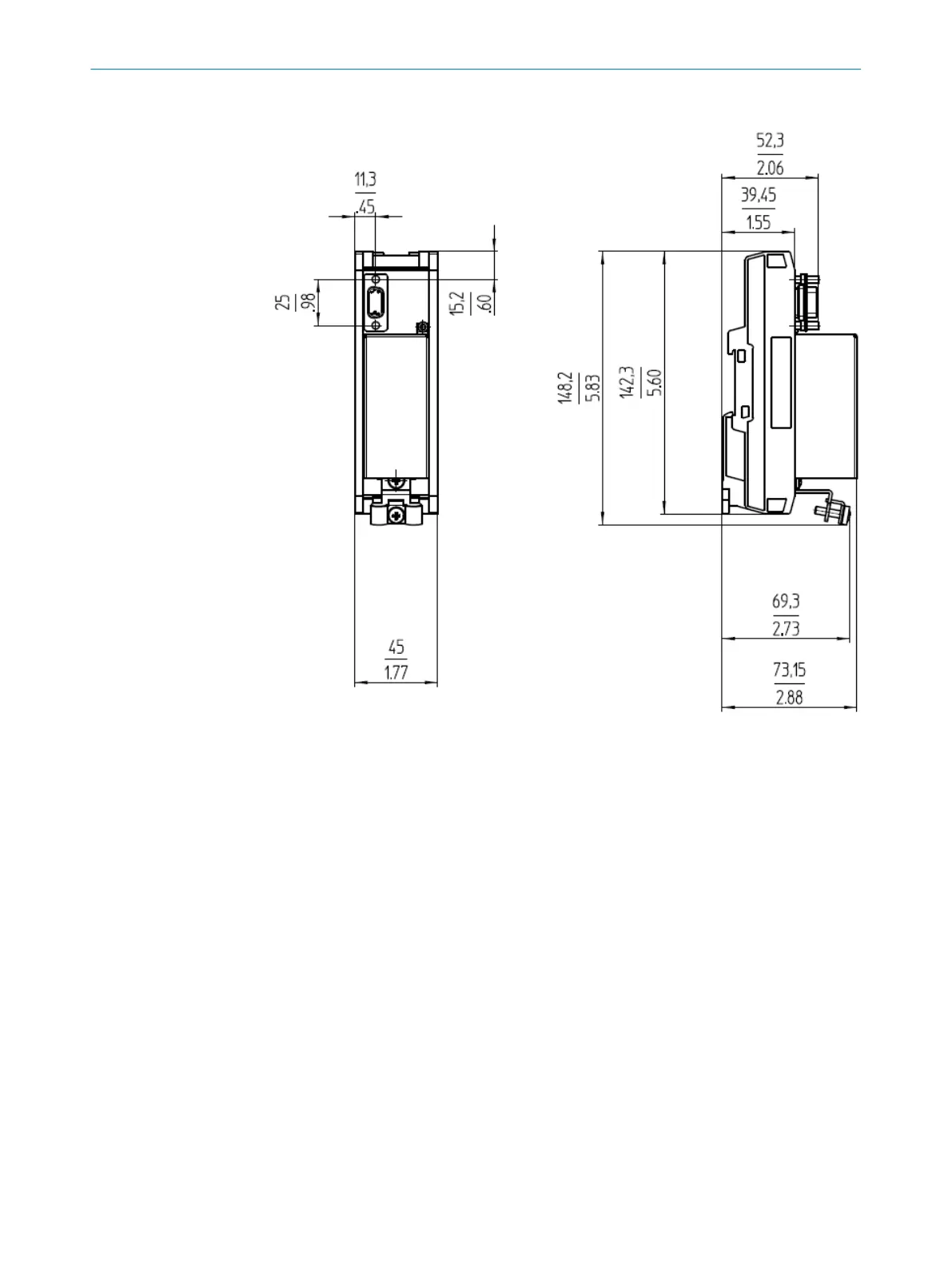

Figure 76: Dimensional drawing for the FX3-EBX4 dual encoder/motor feedback connection box
(mm/
in)
