SICK Flexi Soft User Manual

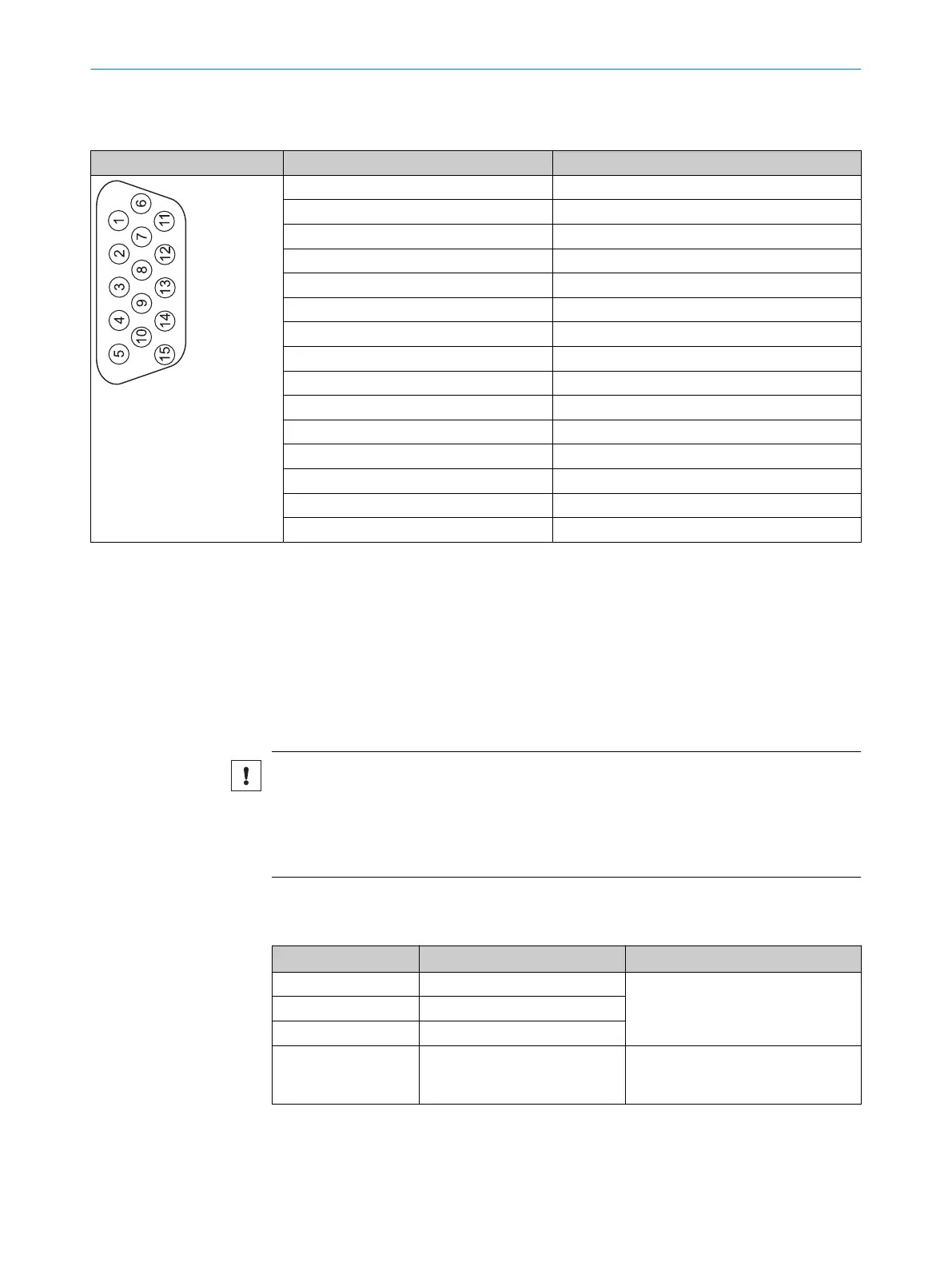

C3 HD-D-Sub female connector
T
able 37: 00C3 HD-D-Sub female connector, FX3-EBX4, for connection to FX3-MOCx
Female connector PIN Designation
1 ENC1_A+
2 ENC1_A–
3 ENC1_24V
4 ENC2_A+
5 ENC2_A–
6 ENC1_B+
7 ENC1_B–
8 ENC_0V
9 ENC2_B+
10 ENC2_B–
11 ENC1_C+
12 ENC1_C–
13 ENC2_24V
14 ENC2_C+
15 ENC2_C–
5.2.9.4 On-board voltage supply U
out
Overview
T
he FX3-EBX3 and FX3-EBX4 connection units have an on-board voltage supply. The
on-board voltage supply can optionally be used for the encoders and is powered by
the FX3-MOCx (C3.ENC1_24V and C3.ENC2_24V). Output voltage U
out
can be switched
between 5 V, 7 V, 12 V and 24 V nominal by means of a rotary switch.
Important information
NOTICE
T
he voltage peaks when switching the supply voltage
The encoder/motor feedback connection unit may be damaged if this is not observed.
►
Only actuate the rotary switch for the supply voltage on the encoder/motor feed‐
back connection unit when the voltage supply is switched off.
On-board voltage supply U
out
T
able 38: Setting of supply voltage for the encoders at FX3-EBX3 and FX3-EBX4
Switch setting Supply voltage U
out
Notes
0 5 V Tolerance U
out
: 5%
1 7 V
2 12 V
3 24 V nominal Depending on the voltage level of the
F
lexi Soft voltage supply at the sys‐
tem plug
Complementary information
A
void common cause errors when using the on-board voltage supply, see "Motion
Control FX3-MOC0", page 34 and see "Motion Control FX3-MOC1", page 36.
5 ELE
CTRICAL INSTALLATION
68
O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller 8012478/1IG6/2023-02-24 | SICK
Subject to change without notice

SICK Flexi Soft Specifications

General

Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Programming	Flexi Soft Designer
Power Supply	24 V DC
Safety Protocols	PROFIsafe, CIP Safety
Protection Class	IP20
Number of I/Os	Configurable
Operating Voltage	24 V DC
Power Consumption	Depends on configuration
Dimensions (W x H x D)	Varies depending on the module configuration
Weight	Varies depending on the module configuration
Number of Safety Inputs	Configurable
Number of Safety Outputs	Configurable
Safety Standard	IEC 61508, IEC 62061, ISO 13849
Operating Temperature	0°C to +55°C
Response Time	< 10 ms (typical)
Storage Temperature Range	-25°C to +70°C
Relative Humidity	15 % ... 95 %, non-condensing
