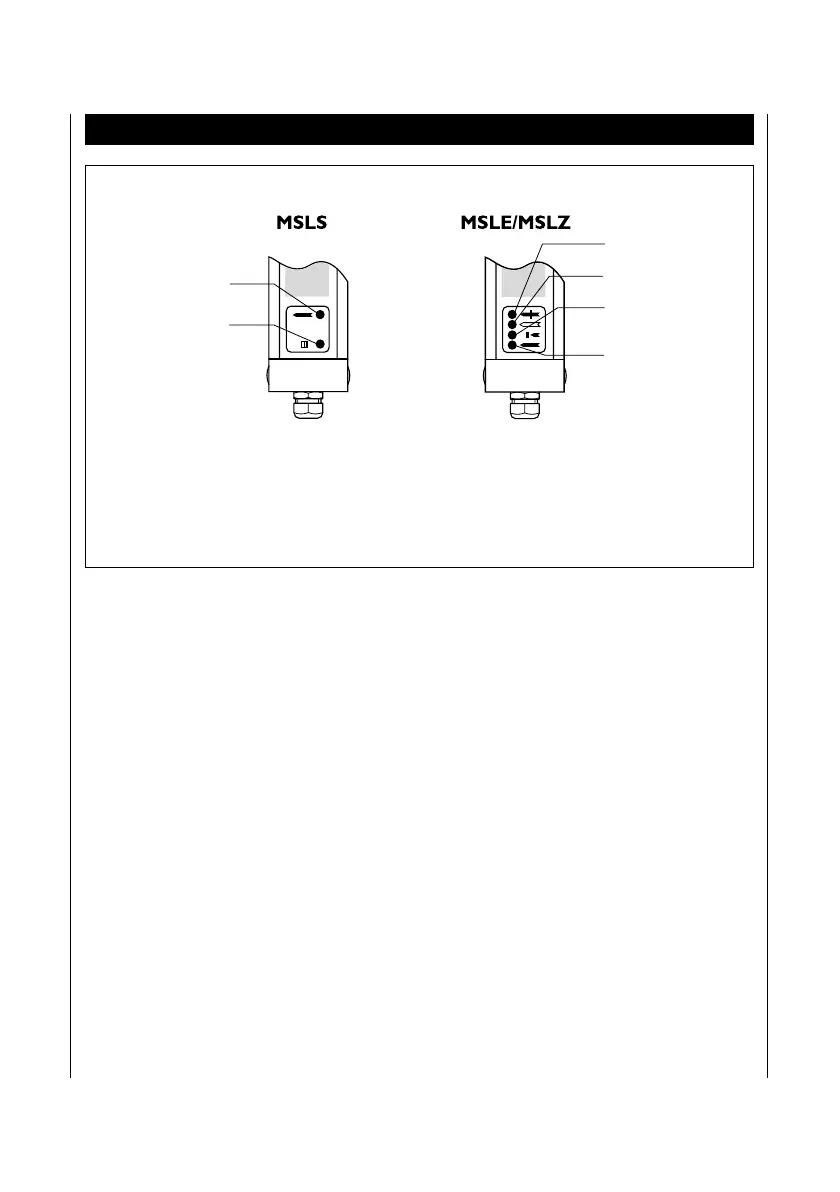

4 Operating state display with error diagnosis
yellow Press control switch
amber Contamination
red Outputs inactive
green Light beam unbroken,
outputs active
yellow Off: Sender active, range 0 … 18 m
On: Sender active, range 15 … 70 m
amber Operating voltage applied
yellow
amber
yellow
amber
red
green
