MSL coded version
8 007 898/O369/05-04-04 Operating instruction • MSL cod. © SICK AG • Safety Systems • Germany • All rights reserved

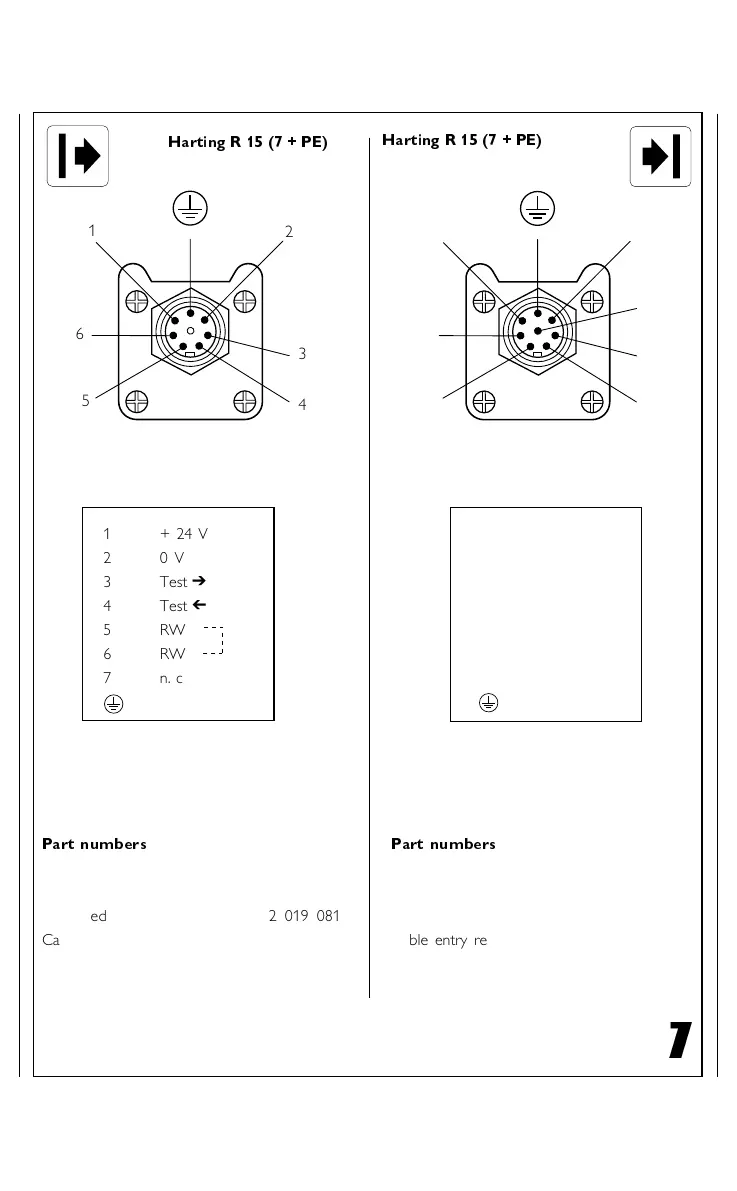

Harting R 15 (7 + PE)
Harting R 15 (7 + PE)
1
6
4
3
2
5
1+ 24 V
20 V
3 Test 
4 Test 
5RW
6RW
7 n. c.
PE
1+ 24 V
20 V
3 OSSD 1
4 OSSD 2
5 RES
6 EDM
7 OWS
PE
7
Part numbers
Quick-disconnect plug
straight 2 018 549
angled 2 019 081
Cable entry receptacle
cable-Æ 11 ... 15 mm 6 011 105
cable-Æ 15 ... 20,5 mm 6 011 058
Part numbers
Quick-disconnect plug
straight 2 018 550
angled 2 018 551
Cable entry receptacle
cable-Æ 11 ... 15 mm 6 011 105
cable-Æ 15 ... 20,5 mm 6 011 058
1
6
4
3
2
5
7
241967_MSLcod_App.p65 10.12.04, 13:48297
