MSL coded version
8 007 898/O369/05-04-04 Operating instruction • MSL cod. © SICK AG • Safety Systems • Germany • All rights reserved
3
xx mm !

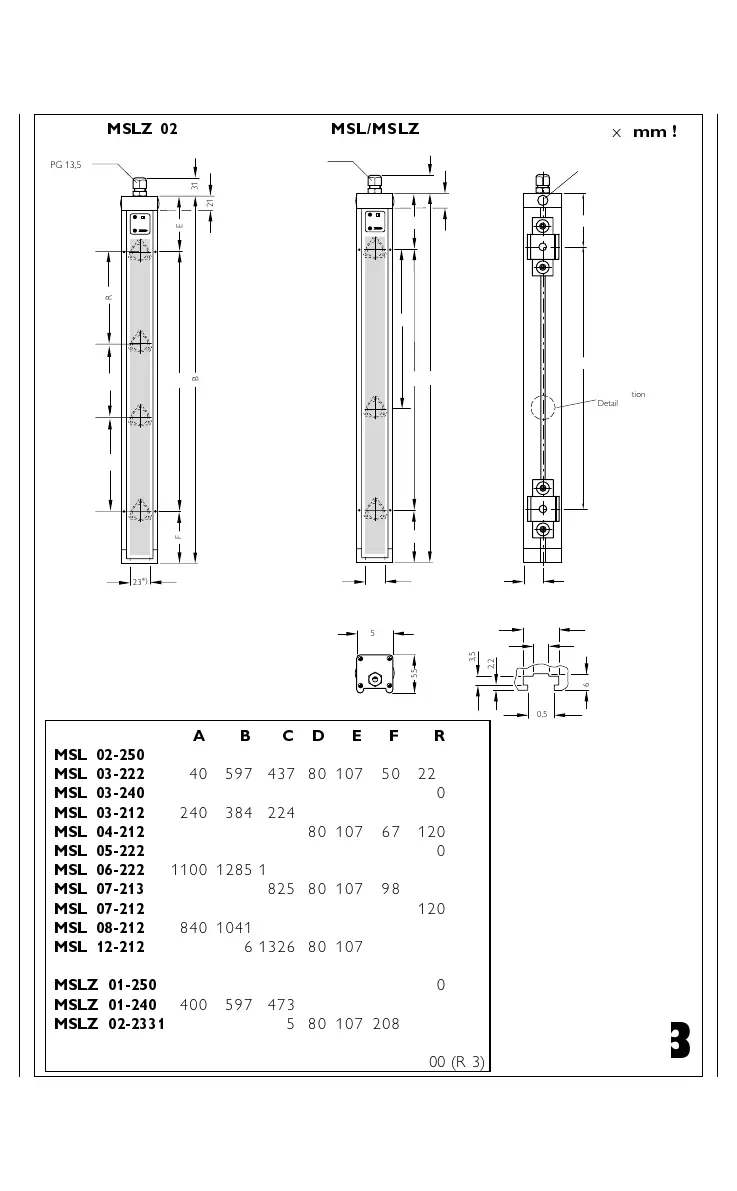

MSLZ 02 MSL/MSLZ
A
F
B
21
31
23
*)
E
PG 13,5
R3
R1
R2
*) With respect of centre of
housing
ABCDEFR
MSL 02-250 500 684 524 80 107 77 500
MSL 03-222 440 597 437 80 107 50 220
MSL 03-240 800 985 825 80 107 78 400
MSL 03-212 240 384 224 80 107 37 120
MSL 04-212 360 534 374 80 107 67 120
MSL 05-222 880 1041 881 80 107 54 220
MSL 06-222 1100 1285 1125 80 107 78 220
MSL 07-213 780 985 825 80 107 98 130
MSL 07-212 720 880 720 80 107 53 120
MSL 08-212 840 1041 881 80 107 94 120
MSL 12-212 1320 1486 1326 80 107 59 120
MSLZ 01-250 500 684 524 80 97 87 500
MSLZ 01-240 400 597 473 80 97 87 400
MSLZ 02-2331 970 1285 1125 80 107 208 400 (R 1)
170 (R 2)
400 (R 3)
55
52
A
F
B
C
21
31
23
*)
D
E
27,5
10,5
2,2
3,5
6,7
14
6
Detail A
Cross Section
Detail A
PG 13,5
R
PG 9
241967_MSLcod_App.p65 10.12.04, 13:48293
