Description

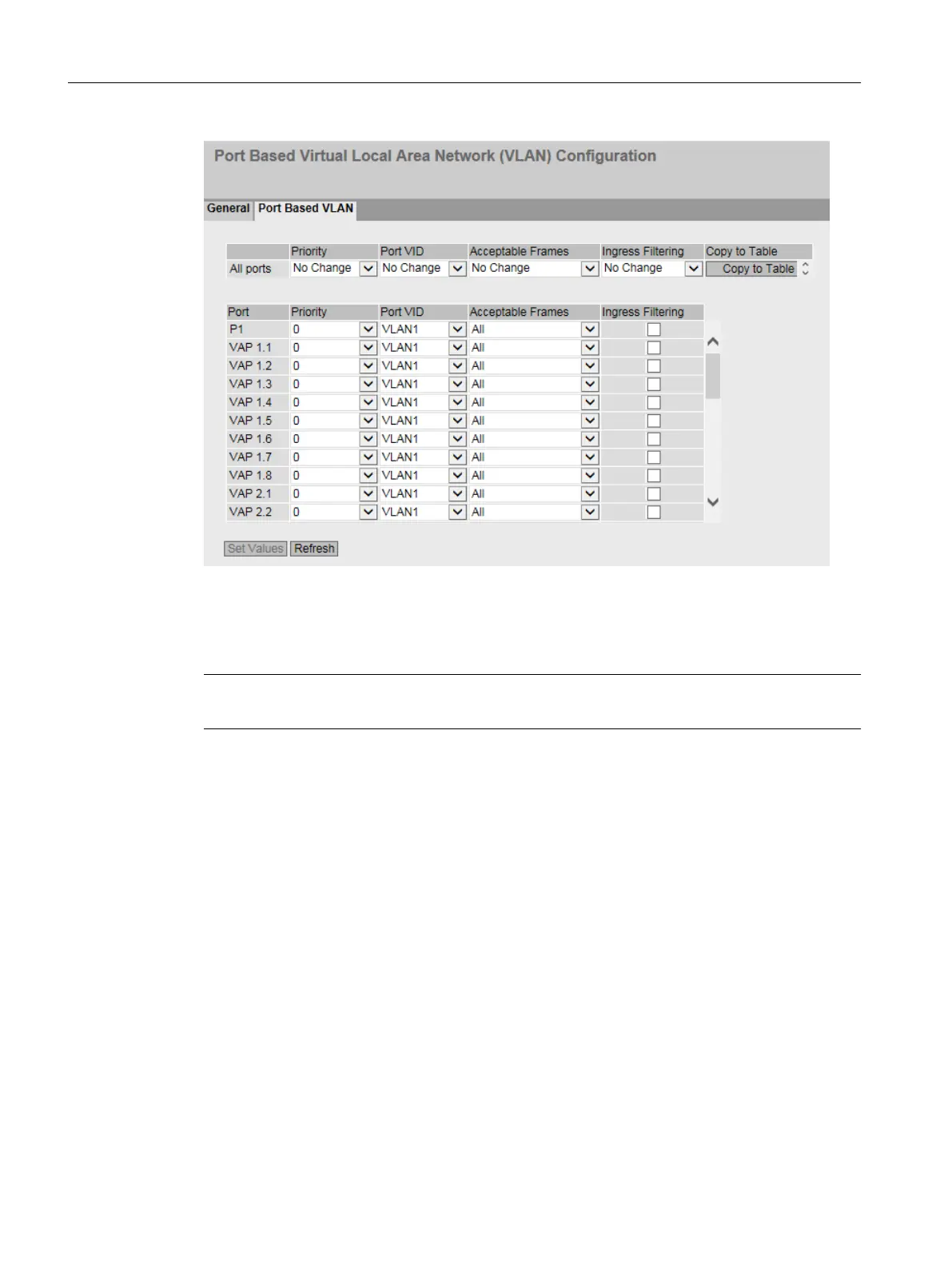

Table 1 has the following columns:
Note
Table 1 is only available if at least one VLAN is configured.
● Port
Shows that the settings are valid for all ports of table 2.
● Priority / Port VID / Acceptable Frames / Ingress Filtering
In the drop-down list, select the setting for all ports. If "No Change" is selected, the entries
of the corresponding column in Table 2 remain unchanged.
● Copy to Table
If you click the button, the setting is adopted for all ports of table 2.
Table 2 has the following columns:
● Port
Shows the available ports and interfaces.
● Priority
From the drop-down list, select the priority given to untagged frames.
The CoS priority (Class of Service) used in the VLAN tag. If a frame is received without a tag,
it will be assigned this priority. This priority specifies how the frame is further processed
compared with other frames.
There are a total of eight priorities with values 0 to 7, where 7 represents the highest priority
(IEEE 802.1p Port Priority).
Configuring with Web Based Management
6.7 "Layer 2" menu
SCALANCE W1780/W1740 according to IEEE 802.11ac Web Based Management
266 Configuration Manual, 11/2019, C79000-G8976-C485-03
