Displaying maintenance statuses
The view is displayed for the Compact Field Unit from the Field devices area.
Note
This view is available for the MS Standard version of the Maintenance Station.
Maintenance statuses
In this view the maintenance statuses of the individual channels of the CFU are displayed.
CFU type Left half of the window Right half of the window
CFU PA Status of eight binary I/O channels shown:
8 connections for sensors and/or actuators
(DIQ: DIQ0 to DIQ7)
The status of the eight fieldbus connections
is shown:
8 fieldbus connections (FIELDBUS; FB0 to
FB7)
CFU DIQ Status of eight binary I/O channels shown:
8 connections for sensors and/or actuators
(DIQ: DIQ0 to DIQ7)
Status of eight binary I/O channels shown:
8 connections for sensors and/or actuators
(DIQ: DIQ8 to DIQ15)

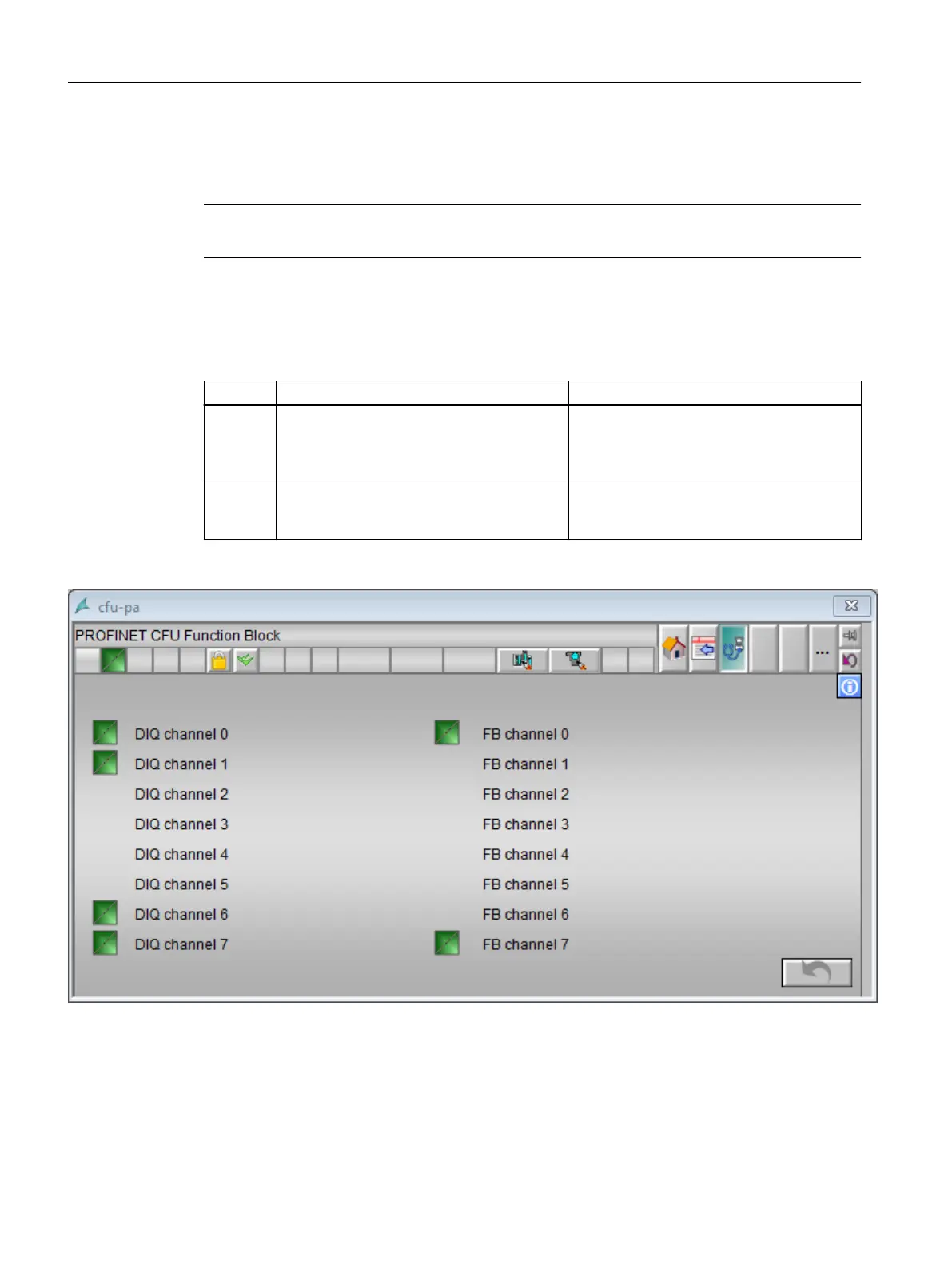

The figure below shows an example of the CFU PA view:
Display
The status of the CFU is marked with the maintenance symbols.
Status display of channels/field devices
Diagnostics of the CFU
9.3 Diagnostics with the Maintenance Station
SIMATIC CFU
112 Commissioning Manual, 08/2019, A5E39252870-AD
