6.9 Axes and spindles
6-145
 Siemens AG 2000 All Rights Reserved
SINUMERIK 840D Installation and Start-Up Guide (IAD) – 04.00 Edition
IS “Change over gear” (DB31, ... DBX82.3)
IS “Setpoint gear stage” (DB31, ... DBX82.0 to DBX82.2)
IS “No speed monitoring for gear changeover”
(DB31, DBX16.6)
IS “Gear stage changed over” (DB31, ... DBX16.3)
IS “ActGear stage” (DB31, ... DBX16.0 to DBX16.2)
IS “Oscillation speed” (DB31, ... DBX18.5)
IS “Oscillation via PLC” (DB31, ... DBX18.4)
IS “Oscillation mode” (DB31, ... DBX84.6)
IS “Open-loop control mode” (DB31, ... DBX84.7)
IS “Traversing keys minus” (DB31, DBX4.6)
IS “Traversing keys plus” (DB31, ... DBX4.7)
Speed
Max. spindle speed
ÉÉÉ
ÉÉÉ
ÉÉÉ
ÉÉÉ
ÉÉÉ
ÉÉÉ
ÉÉÉ
ÉÉÉ
Max. speed of gear stage 2
Max. speed for gear stage 2 changeover
Max. speed of gear stage 1
Max. speed for gear stage 1 changeover
Min. speed for gear stage 2 changeover
Min. speed of gear stage 2
Min. speed for gear stage 1 changeover
Min. speed of gear stage 1
Min. spindle speed
(rev./min)
ÉÉÉ
ÉÉÉ
ÉÉÉ
ÉÉÉ
ÉÉÉ
ÉÉÉ
Gear stage 2 Gear stage 1
0

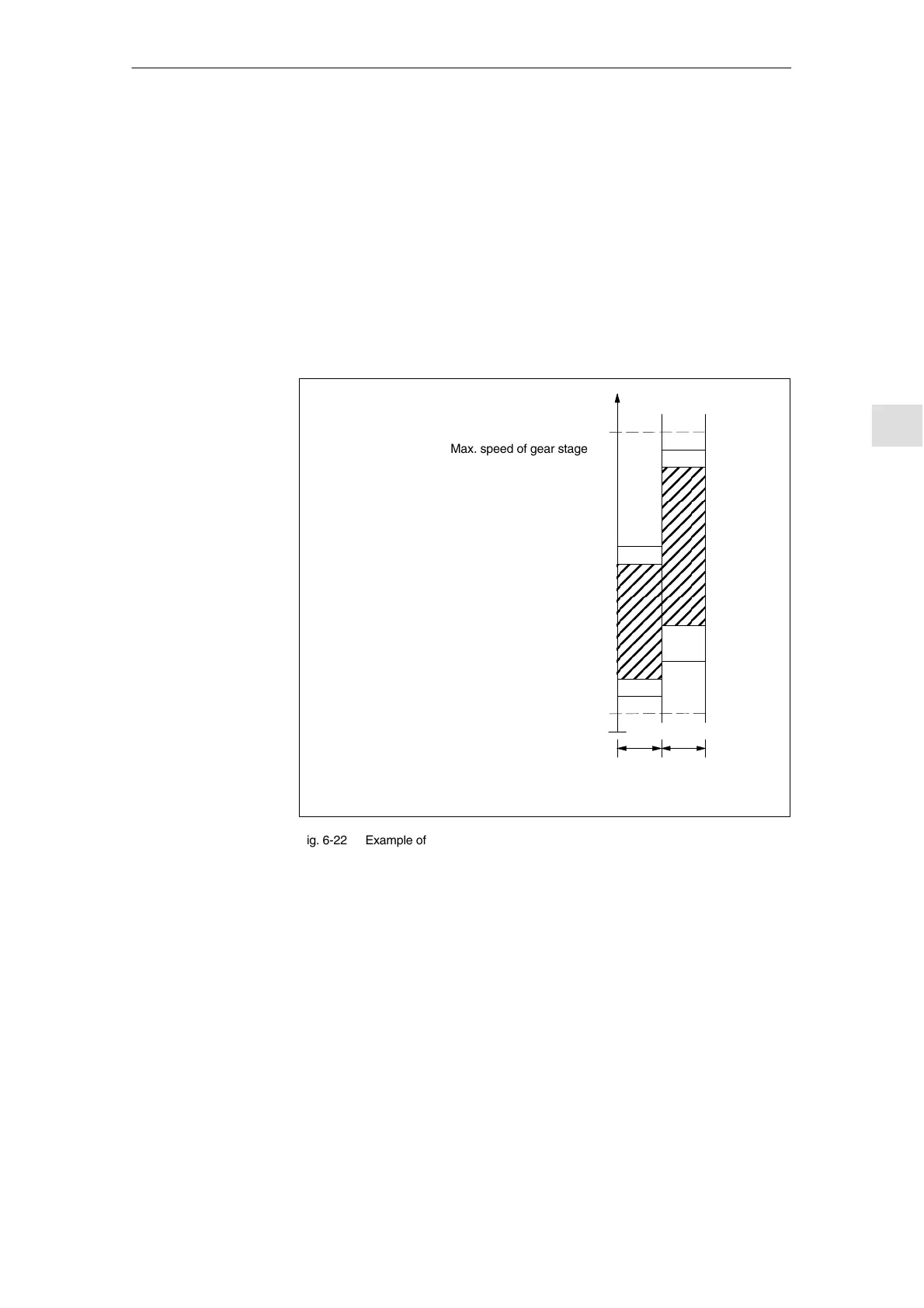

Fig. 6-22 Example of speed ranges with automatic gear stage selection (M40)
6.9.17 Spindle positioning
The control provides an “oriented spindle stop” function with which the spindle
can be moved into a certain position and held there (e.g. for tool changing pur-
poses). Several programming commands are available for this function which
define the approach and program processing.
References: /PA/, Programming Guide
