11.3 Data backup via MMC 102/103
11-258
 Siemens AG 2000 All Rights Reserved
SINUMERIK 840D Installation and Start-Up Guide (IAD) – 04.00 Edition
11.3.3 Output of drive data via V.24 on the MMC102/103
NC data are all data stored in the SRAM of the NC (excluding the part program
and cycles).
The following data are stored in the NC active data area:
S NC machine data (MD11210 UPLOAD_MD_CHANGES_ONLY =1)
S Option data
S Setting data
S Tool/machine data
S ZO
S R parameters
S Global user data
S Protection zones
S Compensation data
– Measuring system error compensation (LEC=EEC)
– Sag/angularity compensation (CEC)
– Quadrant error compensation (QEC)

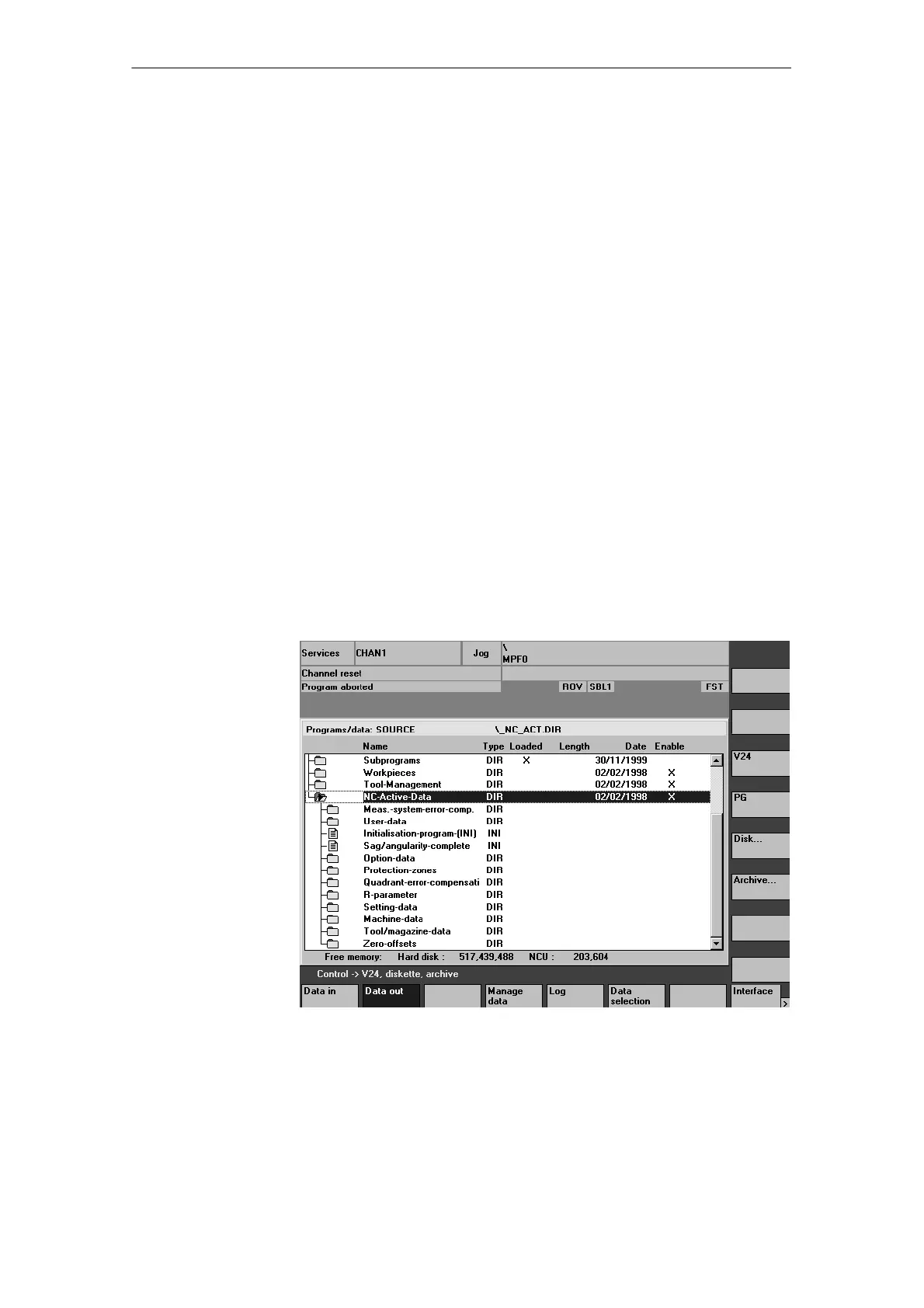

Fig. 11-3 NC active data
NC data
11 Data Backup
