10
03.96
10.8 Trace function (SW 4.2 and higher)
10-231
Siemens AG 2000 All Rights Reserved
SINUMERIK 840D Installation and Start-Up Guide (IAD) – 04.00 Edition
10.8.7 Print graph
You can access the basic display for printer selection (Fig. 10-14) with softkeys
MMC \ Printer selection.
With the toggle key you can selection whether the graph displayed is to be sent
directly to the printer or to a bitmap file when actuating the softkey Print graph.

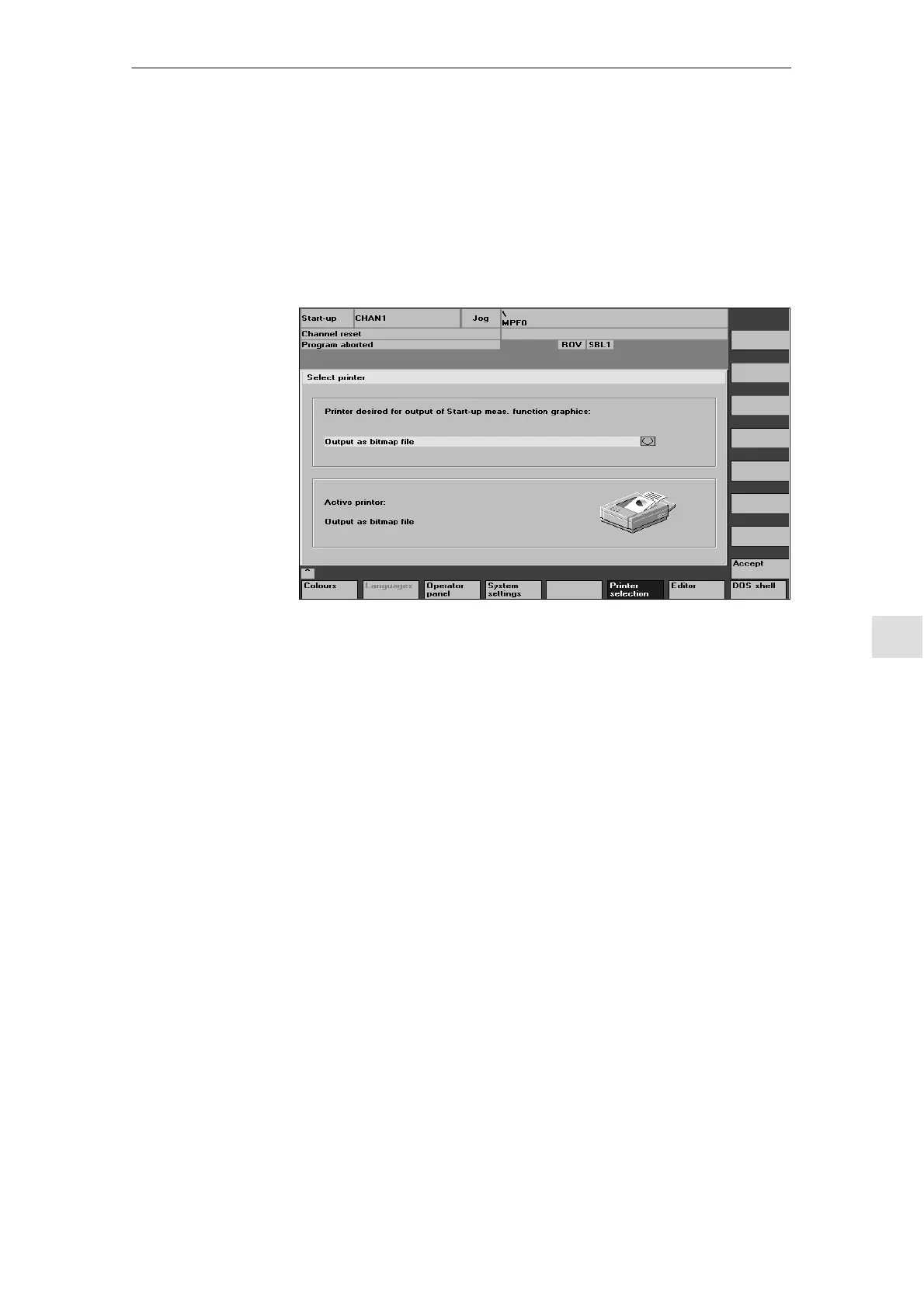

Fig. 10-14 Basic display of the printer selection
The printer must be set up under MS–Windows.
Set “Output to printer” in the selection field.
In the display called “Display” you can press the softkey Print graph to output
the graph displayed to the connected printer.
You want to save the graph as a bitmap file (*.bmp).
In the selection field for printer setting, set “Output to bitmap file”.
After you have pressed the Print graph softkey in the display called “Display”,
the screen form for assigning a file name is displayed (Fig. 10-15). In the drop-
down list, you can enter a new file name or an existing file name for overwriting.
Printer setting
Direct output to
printer
Output to
bitmap file
10 Drive Optimization with Start-Up Tool
05.98
