10
03.96
10.8 Trace function (SW 4.2 and higher)
10-230
Siemens AG 2000 All Rights Reserved
SINUMERIK 840D Installation and Start-Up Guide (IAD) – 04.00 Edition
10.8.6 File function
With the File functions softkeys you can switch to the display “File functions”.
Here, you can save/load/delete the measurement settings and the measured
values of the trace function.
The file functions are not intended to be a substitute for making a copy of all
system and user data, e.g. for archiving or series start-up purposes.

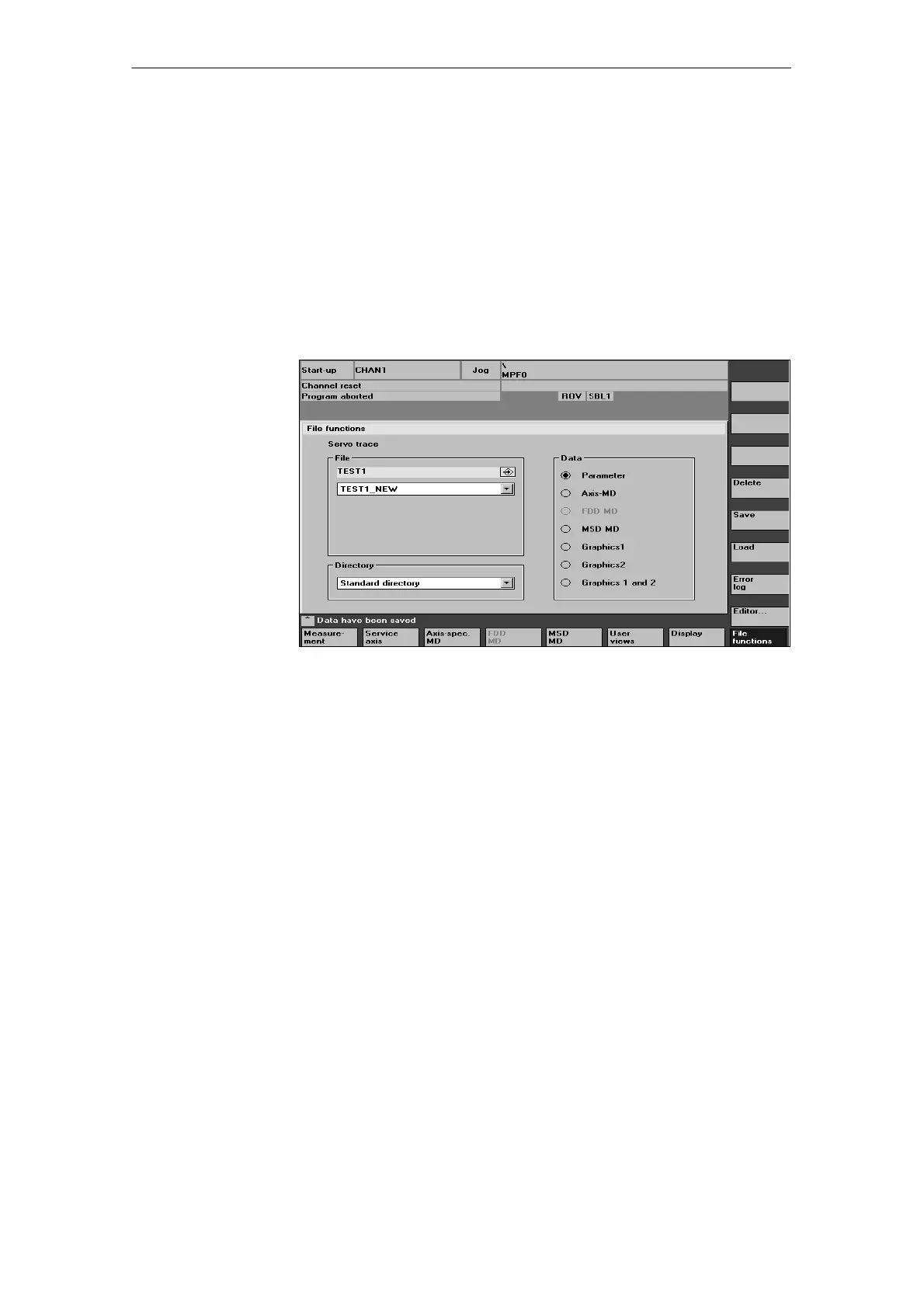

Fig. 10-13 File function servo trace
In the “File” frame, you can select an existing file from the dropdown list or enter
one in the text field underneath.
In the “Directory” frame, you can select the directory under which you want to
save the file.
This can also be a directory under “Services” or the basic directory of data man-
agement (list entry: standard directory).
In the “Data” frame, you can select the data to be stored.
You can only select one data type. You select it using the cursor keys and ac-
cept it with the toggle key.
New directories are created in the “Services” area.
You create a new directory in “Data management” mode under the directory
“Diagnostics”.
See operating area Services.
References: /BA/, Operator’s Guide
Description
Assigning
file names
Selecting the
directory
Selecting the data
type
Creating
subdirectories
10 Drive Optimization with Start-Up Tool
05.98
