10
03.96
10.8 Trace function (SW 4.2 and higher)
10-229
Siemens AG 2000 All Rights Reserved
SINUMERIK 840D Installation and Start-Up Guide (IAD) – 04.00 Edition

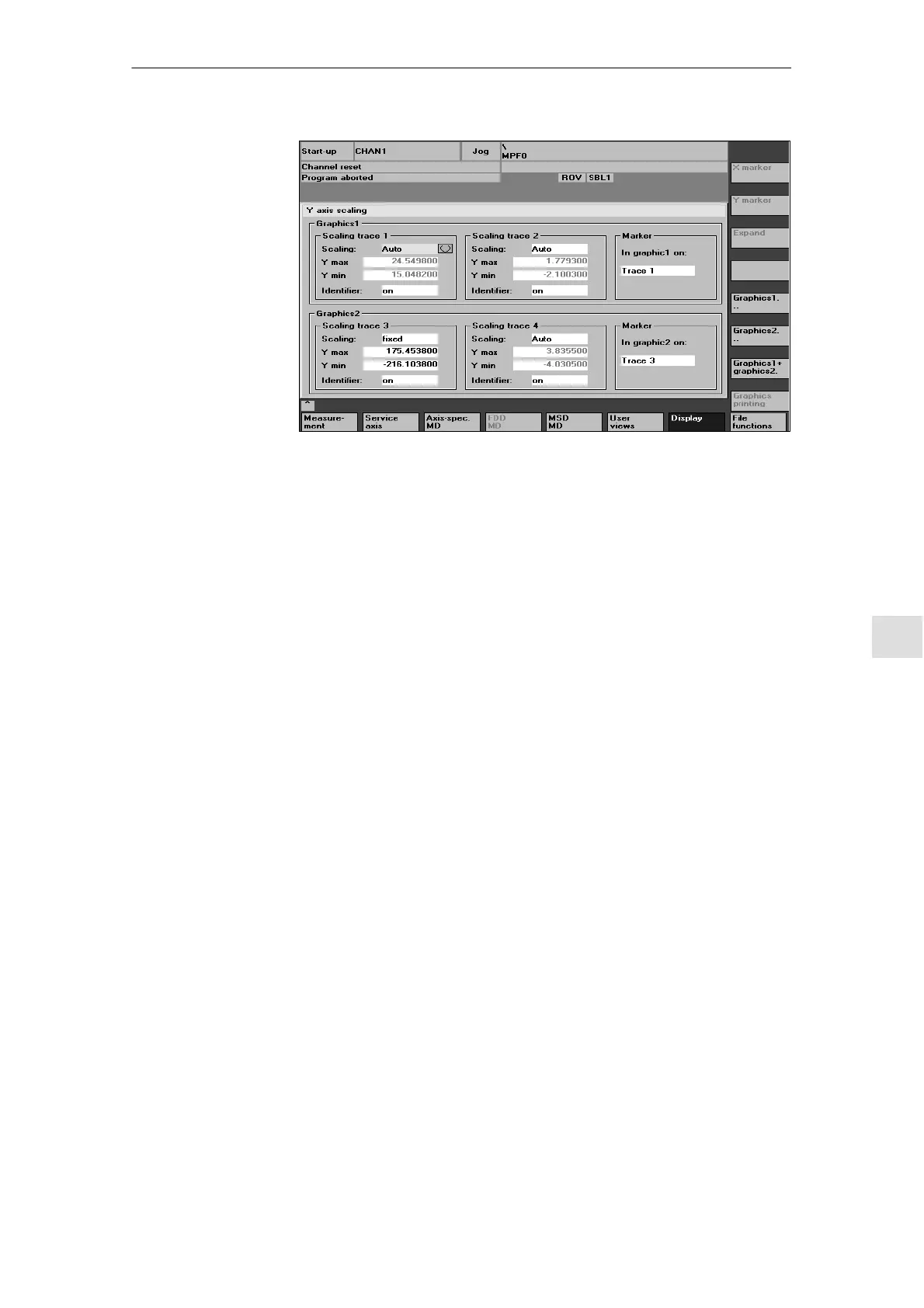

Fig. 10-12 Scaling of Graph1 and Graph2
On the “Scaling” field, you can select between automatic and manual (fixed)
scaling using the toggle key.
For every trace you can enter the scaling in the input fields Y max and Y min.
You can only select the input fields if the type of scaling is “fixed”.
With “fixed” scaling the inputs are only transferred to the graph when you exit
the display.
In the “Markers” field , you can assign the marker to the appropriate traces with
the toggle key.
In Graph1 you can select the marker for trace 1 or trace 2 and in Graph2 for
trace3 or trace4.
With the softkeys Graph1 or Graph2, you can display either graphs as a large
single display. You can switch back with the vertical softkeys
Graph1 + Graph2.
With the softkey Print graph you can print the displays
(Graph1/Graph2 or Single displays) on the printer selected in the printer setup.
Graph
parameterization
Scaling field
Y max
Y min
fields
Markers field
Softkeys
Graph1...
Graph2...
Softkey
Print
graph
10 Drive Optimization with Start-Up Tool
05.98
