10.8 Trace function (SW 4.2 and higher)
10-232
Siemens AG 2000 All Rights Reserved
SINUMERIK 840D Installation and Start-Up Guide (IAD) – 04.00 Edition

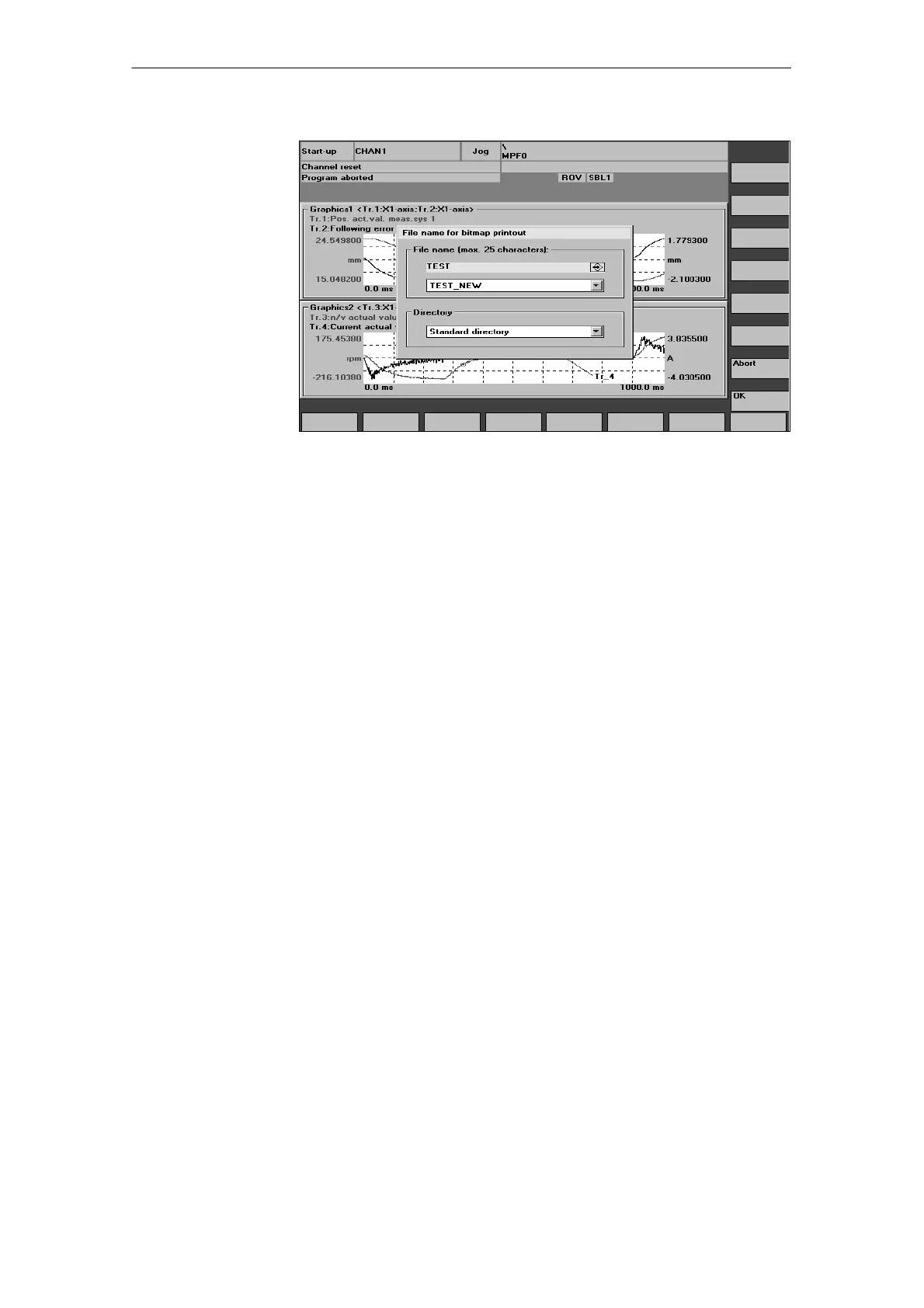

Fig. 10-15 File name assignment for bitmap printing
In the “File name” box, you can select an existing file from the dropdown list or
enter one in the text field underneath.
In the “Directory” box, you can select the directory under which you want to
save the file.
This can also be a directory under “Services” or the basic directory of data man-
agement (list entry: standard directory).
With the softkey OK, the file is saved.
With the softkey Cancel you can return to the current graphic display.
Assigning
file names
Selecting the
directory
