6.10 Linear motors (1FN1 and 1FN3 motors)
6-173
 Siemens AG 2000 All Rights Reserved
SINUMERIK 840D Installation and Start-Up Guide (IAD) – 04.00 Edition
The temperature sensors can be evaluated, for example, as follows:
S Temperature sensor
– Motor 1: Evaluation via the drive
– Motor 2: Not connected
(shorted-circuited or connected to PE)
S Temperature switch or PTC
– Motors 1 and 2: External evaluation
SIMODRIVE
611 D
–X411
U2 V2 W2 PE
Drive A
white
black
yellow
red
brown + black
1FN
Temperature sensor
coupling lead
Pin 13 Pin 25
Linear scale
Power cable
orange + red
white
black
yellow
red
1FN
Power cable
External
evaluation
Motor 1
Motor 2

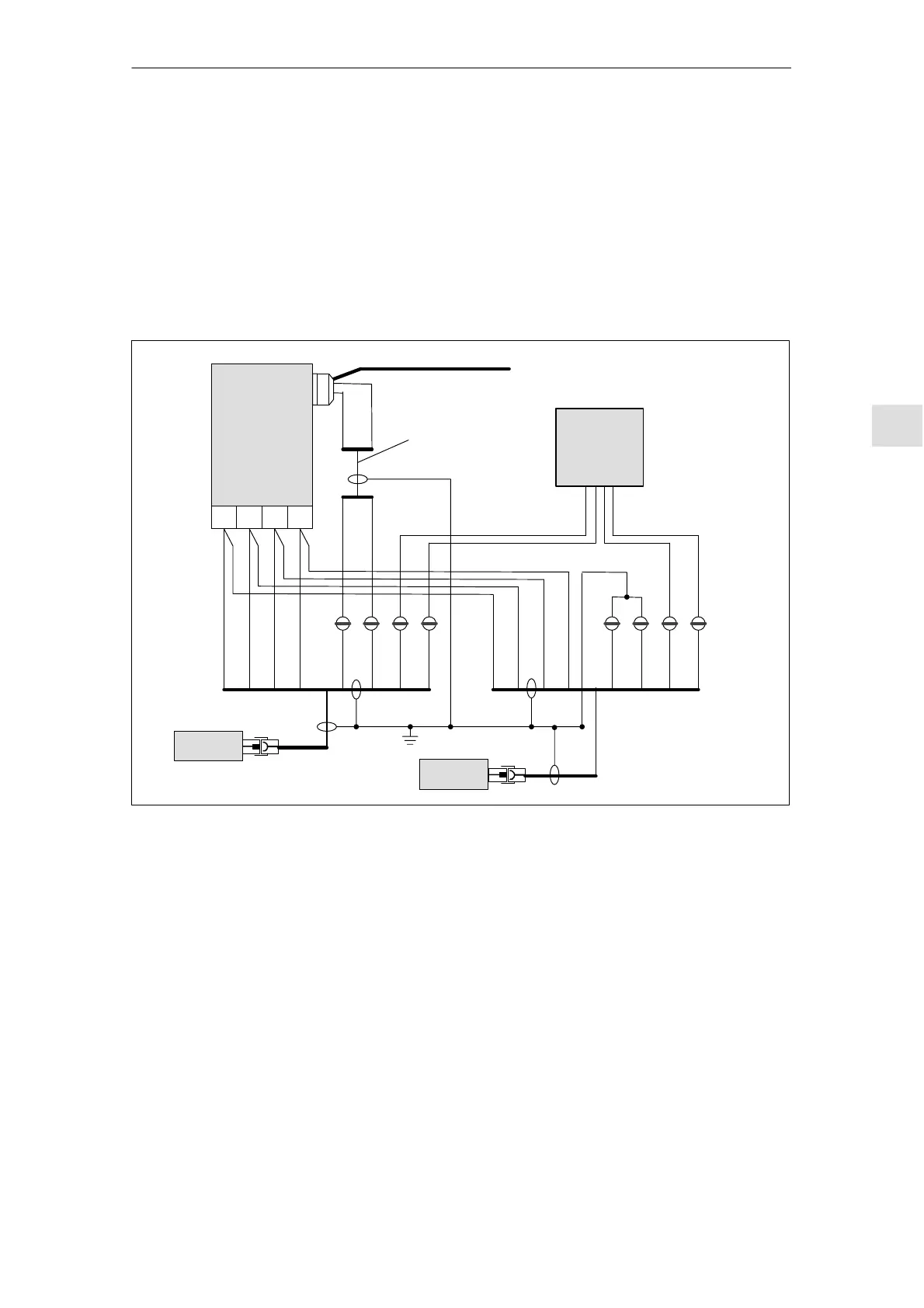

Fig. 6-41 Wiring of parallel-connected linear motors
Temperature
sensor and
electrical wiring
(see
Section 6.10.5)
