6.12 System settings for power up, RESET and part program start
6-179
 Siemens AG 2000 All Rights Reserved
SINUMERIK 840D Installation and Start-Up Guide (IAD) – 04.00 Edition
S After part program start
MD 20112: START_MODE_MASK, bit 4–10 = 0 or 1
Bits 4 to 10 can be combined in any way.
Part program start
MD 20112
START_MODE_MASK
bits 4 – 10
bits 4–10
= 0
bits 4–10= 1
The current settings are retained with
respect to
– Current plane
– Currently settable frame
– Active tool offset
– Active transformation
– Coupled-axis groupings
– Tangential correction
– Unconfigured synchronous spindle
coupling
The current settings are reset with respect to:
– Current plane
– Currently settable frame
– Active tool offset
– Active transformation
– Coupled-axis groupings
– Tangential correction
– Unconfigured synchronous spindle coupling

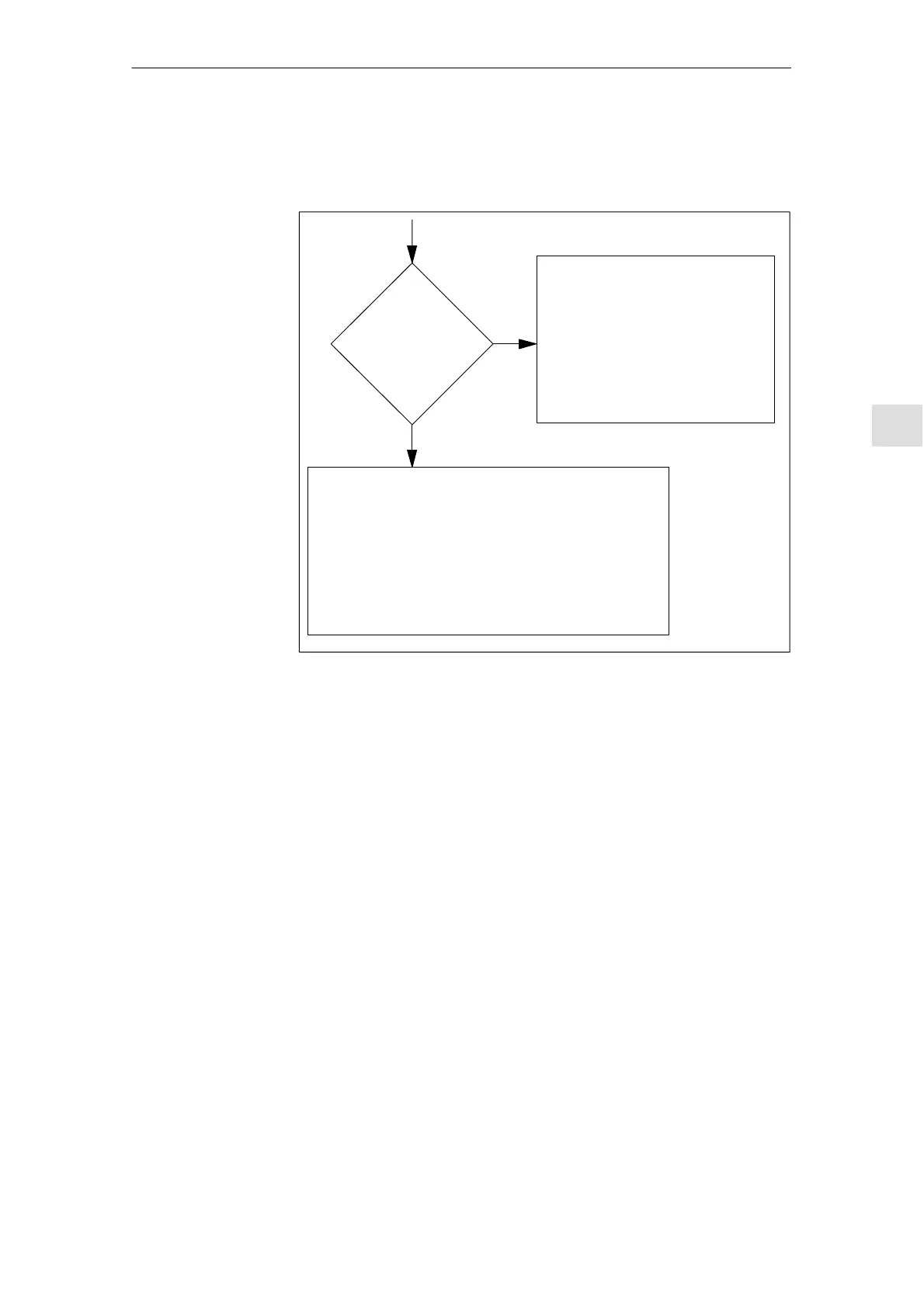

Fig. 6-47 System settings after part program start
References: /FB/ “K2”, Coordinate Systems:
Workpiece-Related Actual-Value System
