10.8 Trace function (SW 4.2 and higher)
10-226
Siemens AG 2000 All Rights Reserved
SINUMERIK 840D Installation and Start-Up Guide (IAD) – 04.00 Edition
The output point is the basic display of the servo trace function.
S The signal type “physical address” must be selected in the trace.
S The cursor in the trace must be in the associated field of the signal selection
(to physical address).
If you press the softkey Physical address the input screen form is displayed.
Note
This function is only required in exceptional cases, for example, if the informa-
tion provided by the known signals (see “Signal selection” list field) is not ade-
quate. Please discuss how to proceed after that with the SIMODRIVE hotline.

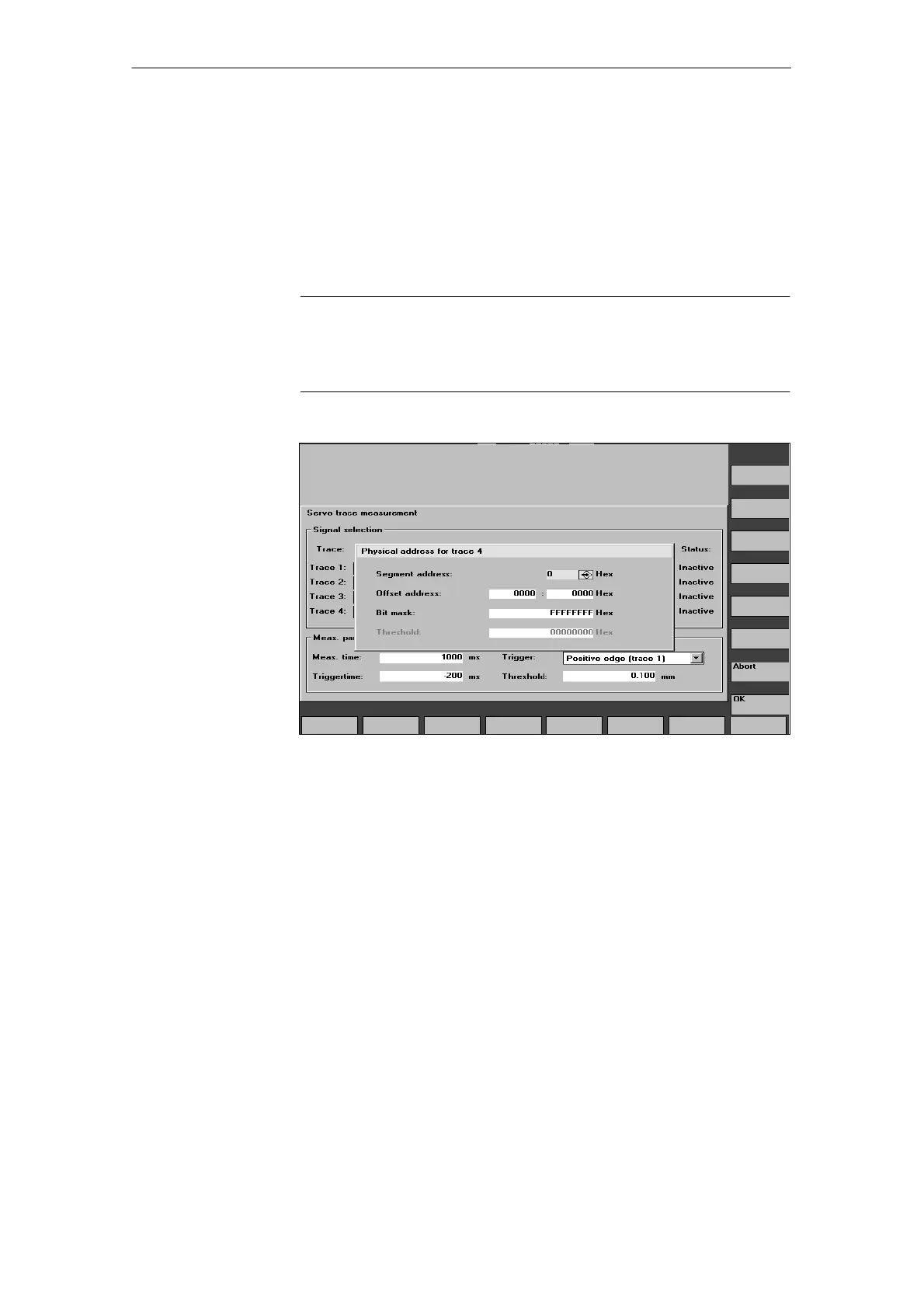

Fig. 10-10 Input screen form for parameterization of the physical address
All parameters are input in hex format.
Direct input of the segment address of the signal to be recorded.
Direct input of the offset address of the signal to be recorded.
If you only want certain bits to be displayed you can select them here.
The field labeled “Threshold” is only used to enter the triggering threshold for
the physical address of trace 1. If you exit the input screen form with the Ok
softkey, this hex value is then entered in the field “Threshold” of the basic servo
trace display.
Physical address
softkey
Segment address
field
Offset address field
Mask field
Threshold field
