Siemens SINUMERIK 810D Installation And Startup Guide

3
03.96
3.2 Standard configuration
3-41
 Siemens AG 2000 All Rights Reserved
SINUMERIK 840D Installation and Start-Up Guide (IAD) – 04.00 Edition
ËËËËË
ËËËËË
ËËËËË
ËËËËË
ËËËËË
MMC
100/102/103
ËËËËË
ËËËËË
ËËËËË
ËËËËË
ËËËËË
ËËËËË
ËËËËË
ËËËËË
NCK
PLC
ËËËËËËË
ËËËËËËË
ËËËËËËË
MCP/interface to
customer operator
panel
OPI 1.5
Mbaud
1
6
Standard bus addresses
X101
SINUMERIK 840D
ËËËËË
ËËËËË
ËËËËË
ËËËËË
ËËËËË
Programming
device/
start-up tool
MPI 187.5
kbaud
0
13
3
2
X122
*)

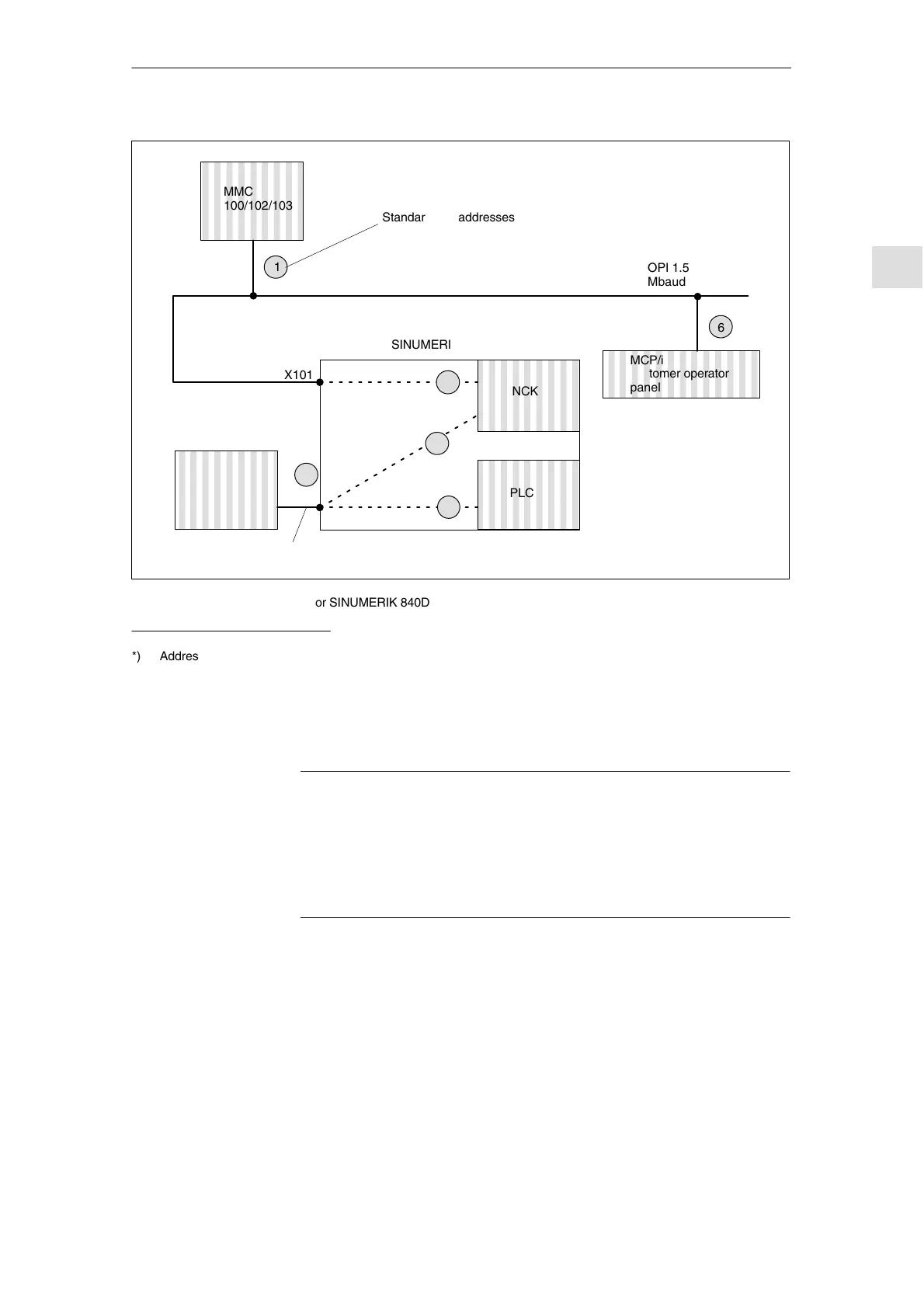

Fig. 3-4 Standard application for SINUMERIK 840D
*) Address depending on software version:
Address NCK to MPI = address PLC+1=3
PLC 314 SW 3.5 and higher
Note
The logical addressing of components in the PLC basic program is performed
by means of the bus address parameter setting (for the machine control panel)
or the GD circle (for the handheld operator unit). The GD circles are always
used for physical addressing on the OPI/MPI. Each machine control panel,
customer operator panel interface, etc., must be addressed with a separate GD
circle.
In the control, the conversion of the bus address in the associated GD circle is
performed via the PLC program.
The bus address, and therefore the setting of the associated GD circles, are set
on the machine control panel by means of DIP–FIX switches.
The same GD circles are set, however, with different bus addresses on the MPI
for machine control panel, customer operator panel, PP031 and handheld pro-
gramming unit components. Allowance should be made for this when using
more than one machine control panel, etc.
The table below shows the relationship.
Bus address and
GD circle
3 Settin
g
s, MPI / OPI05.98
