Basic logic functions: PLC basic program solution line (P3 sl)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
125

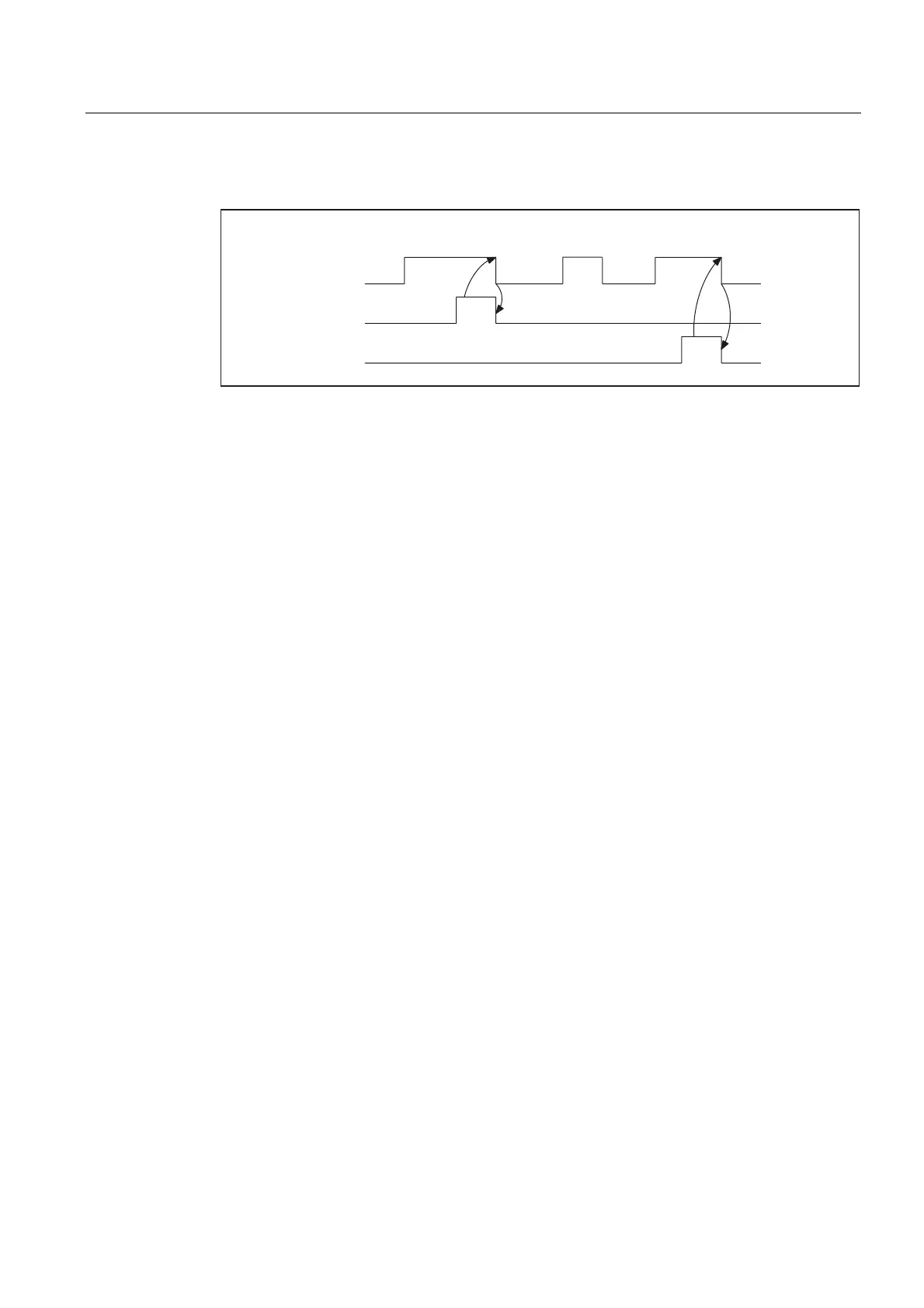

Pulse diagram
'RQH
5HT
(UURU








(1) Activation of function
(2) Positive acknowledgment: PI service has been executed
(3) Reset function activation after receipt of acknowledgment
(4) Signal change by means of FB
(5) Not permissible
(6) Negative acknowledgment: Error has occurred, error code in the output parameter State
