Siemens SINUMERIK 810D

Detailed description
2.1 Axis monitoring
Basic logic functions: Axis monitoring, protection zones (A3)
10 Function Manual, 11/2006, 6FC5397-0BP10-2BA0
2.1.2 Positioning, zero speed and clamping monitoring
2.1.2.1 Correlation between positioning, zero-speed and clamping monitoring
Overview

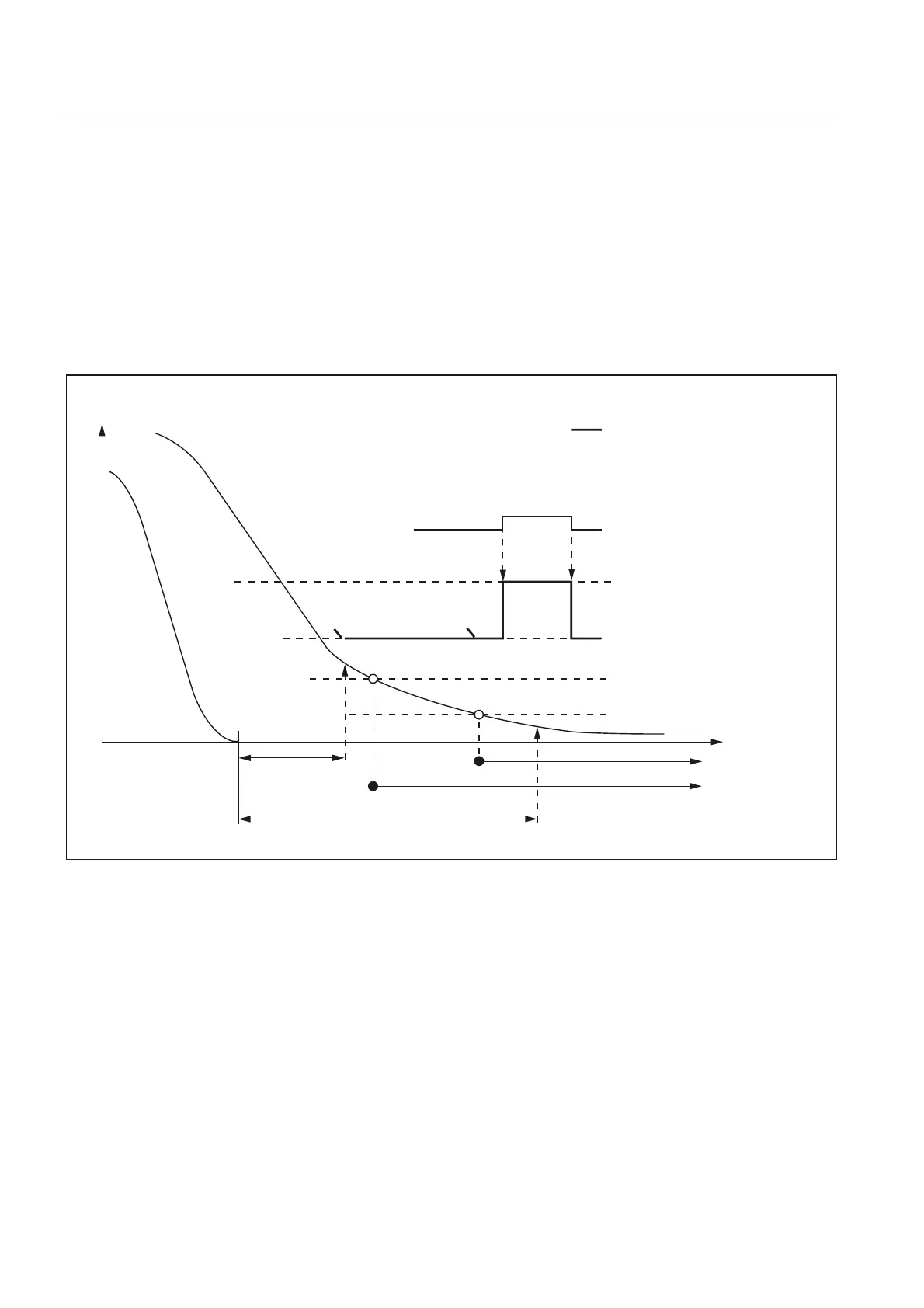

The following overview shows the correlation between the positioning, zero speed and
clamping monitoring functions:
W
0'
0$B67$1'67,//
B'(/$<B7,0(
0'0$B&/$03B326B72/
0'0$B67$1'67,//B326B72/
0'0$B6723B/,0,7B&2$56(
0'0$B6723B/,0,7B),1(
0'0$B326,7,21,1*B7,0(
'%'%;FODPSLQJLQSURJUHVV
([DFWVWRSILQHVLJQDO
([DFWVWRSFRDUVHVLJQDO
$FWXDO
YDOXH
6HWSRLQW
9RUV
(IIHFWLYHWROHUDQFH
IRU]HURVSHHGDQG
FODPSLQJPRQLWRULQJ
2.1.2.2 Positioning monitoring
Function
At the end of a positioning operation:
• Set velocity = 0 AND
• DB31, ... DBX64.6/64.7 (motion command minus/plus) = 0
checks the position monitoring to ensure that the following error of every participating
machine axis is smaller than the exact-stop fine tolerance during the delay time.
MD36010 $MA_STOP_LIMIT_FINE (exact stop fine)
