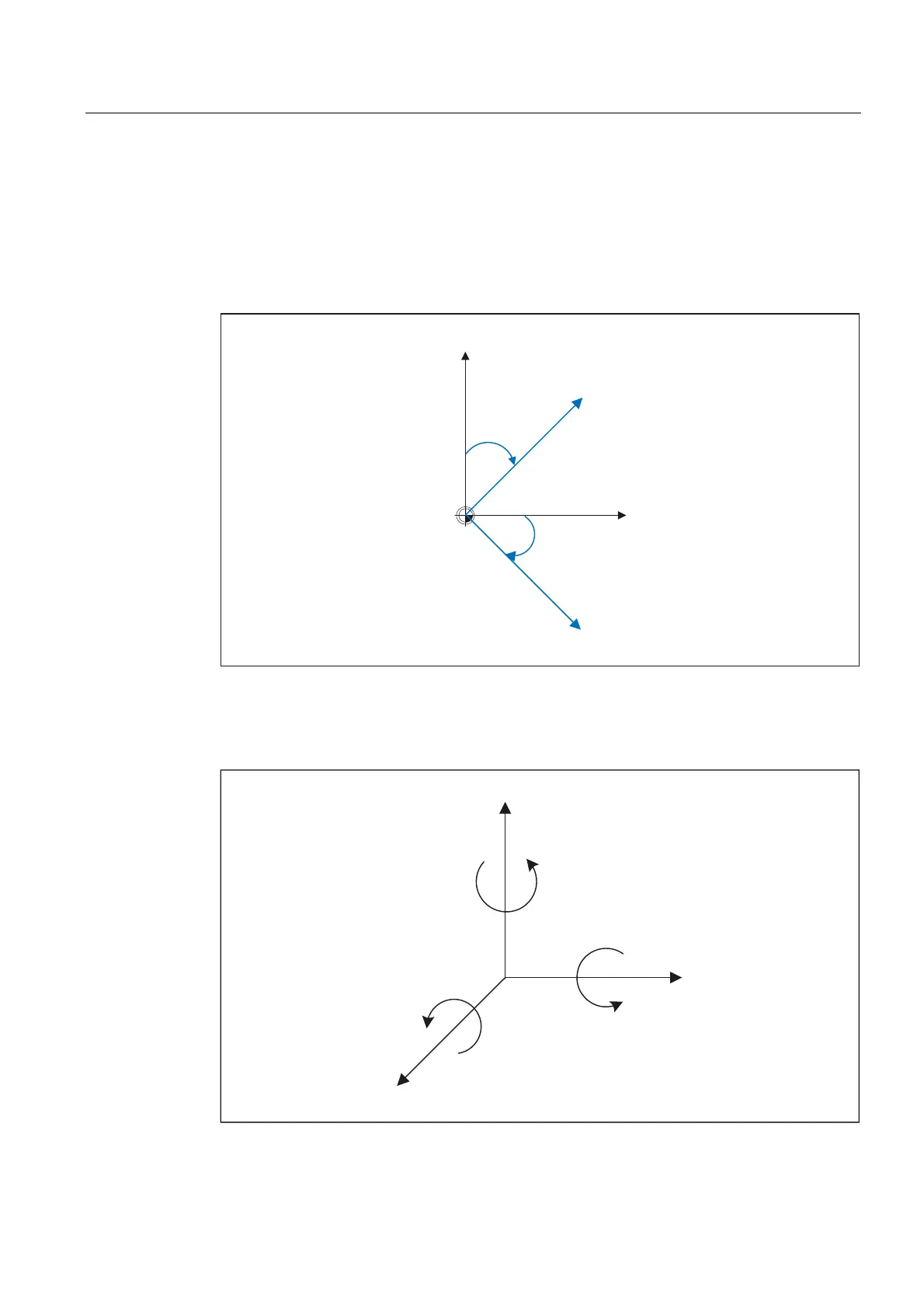

2.4.2.3 Rotations for geometry axes
Function
The direction of rotation about the coordinate axes is determined by means of a right-hand,
rectangular coordinate system with axes X, Y and Z.
[
[
\
\
Rotations
If the rotary motion is in a clockwise direction when looking in the positive direction of the
coordinate axis, the direction of rotation is positive. A, B and C identify rotations whose axes
are parallel to X, Y and Z.
%
$
\
[
&
]
5LJKWKDQGUHFWDQJXODU
FRRUGLQDWHV\VWHP
