Detailed description
2.1 Path feedrate F
Basic logic functions: Feeds (V1)
26 Function Manual, 11/2006, 6FC5397-0BP10-2BA0
Retraction movement
The retraction motion (liftfast) for thread cutting is controlled by the following keywords:
• LFON
⇒ Enable liftfast for thread cutting.
• LFOF
⇒ Disable liftfast for thread cutting.
These G functions can always be programmed.
The default setting for NC Reset and/or NC Start is specified in machine data:
MD20150 GCODE_RESET_VALUES.
The following sources can initiate a retraction motion during thread cutting:
• Fast inputs (programming with SETINTLIFTFAST for "LIFTFAST" option)
• NC Stop
• Alarms that implicitly initiate the NC stop.
',/)
;
=
6WDUWSRVLWLRQ
7KUHDGFXWWLQJ
7DUJHWSRVLWLRQ
7KUHDGFXWWLQJ
$[LVVWDQGVWLOO
5HWUDFWLRQFRPSOHWHGWKUHDG
FXWWLQJVWRSSHG
]1&BVWRSBVWDUWBUHWU
DFWLRQBPRWLRQ

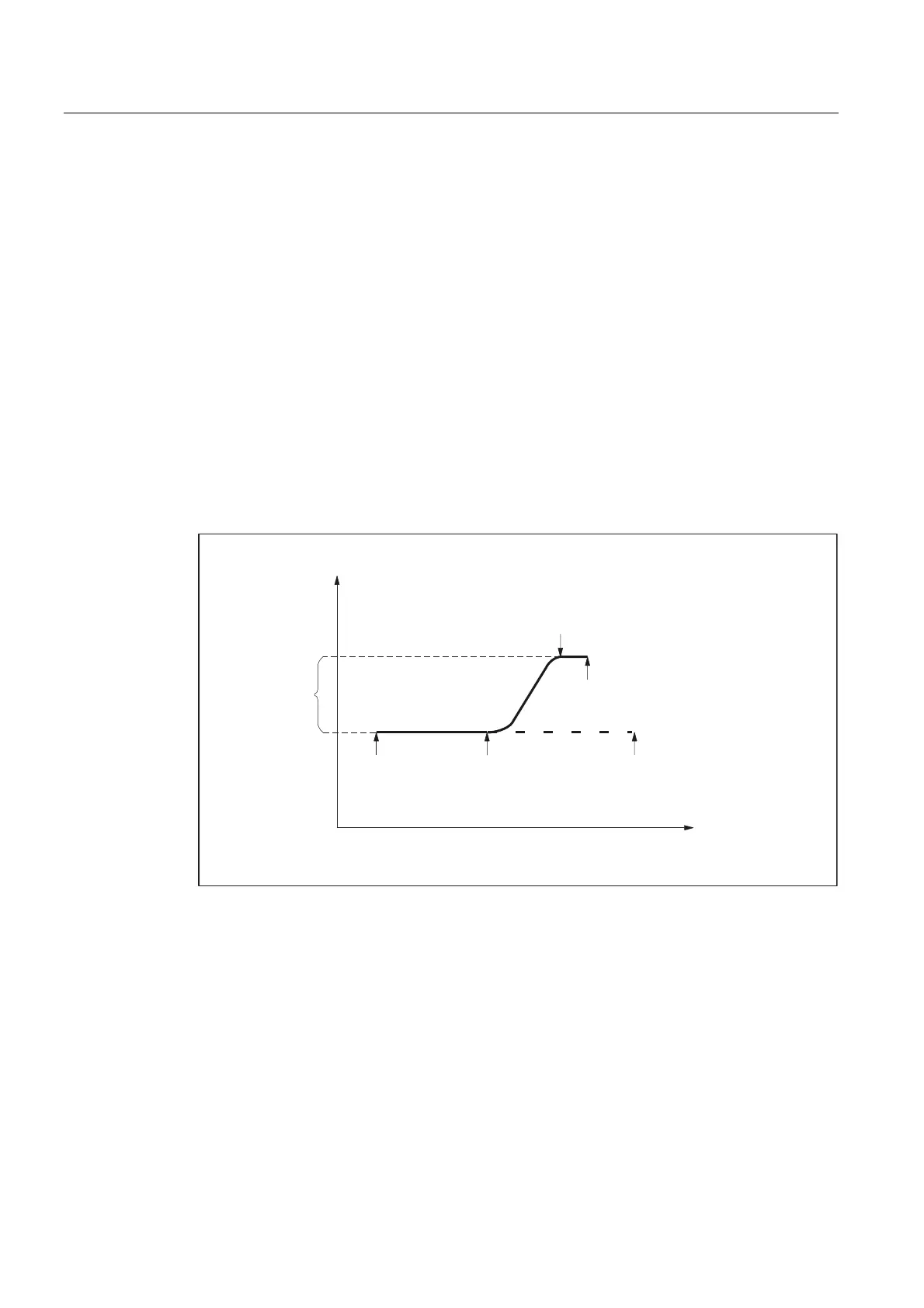

Figure 2-3 Interruption of G33 through retraction motion
Retraction path
The retraction path can be configured in machine data:
MD21200 LIFTFAST_DIST.
If required, this path in the part program can be changed by writing DILF at any point.
Following an NC reset, the value entered in machine data:
MD21200 LIFTFAST_DIST
(default value) is always active.
