2.9 Mode group, channel, program operation, reset response (K1)
Basic logic functions: NC/PLC interface signals (Z1)
94 Function Manual, 11/2006, 6FC5397-0BP10-2BA0
DB21, ...
DBX32.5
M00/M01 active

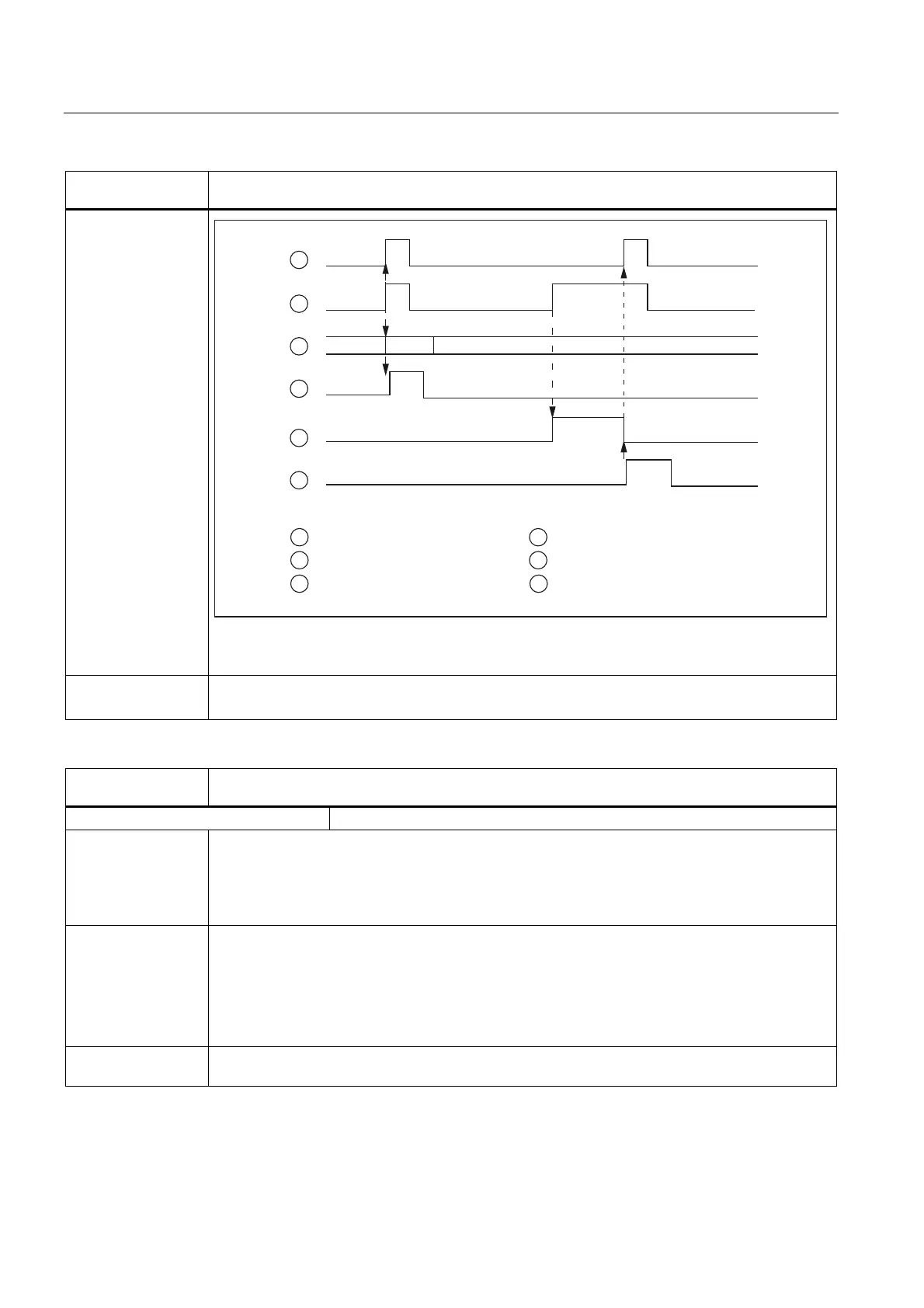

Fig.












0
,6&KDQQHOVWDWHDFWLYHHYHQZKHQ
D[HVDUHPRYHGLQ-2*PRGH
0FKDQJHVLJQDO3/&F\FOHWLPH
,600DFWLYH
1&EORFNZLWK0
%ORFNSURFHVVHG
'DWDWUDQVIHUWRZRUNLQJPHPRU\
Corresponds to .... DB21, ... DBX0.5 (activate M01)
DB21, ... DBX24.5 (M01 selected)
DB21, ...
DBX32.6
Last action block active
Edge evaluation: no Signal(s) updated: cyclic
Signal state 1 or
edge change
0 → 1
The last action block is being executed.
This means, that all the action blocks on the side of NC have been processed and the actions on
the side of PLC (ASUP, FC) or the operator such as overstore, mode change according to
JOG/REPOS are possible. In this way the PLC for example can still perform a tool change before
the start of movement.
Signal state 0 or
edge change
1 → 0
The last action block is not being executed. Action blocks contain the actions collected during
"block search with computation" such as
• outputting help function H, M00, M01, M..
• Tool programming T, D, DL
• Spindle programming S-Value, M3/M4/M5/M19, SPOS
• Feed programming, F
Additional
References
/FB1/ Functions Manual Basic Functions; K1 Channel, Program Operation, Reset Response
