Detailed Description
2.9 Mode group, channel, program operation, reset response (K1)
Basic logic functions: NC/PLC interface signals (Z1)
102 Function Manual, 11/2006, 6FC5397-0BP10-2BA0
DB21, ...
DBX318.0 ASUB is stopped
Edge evaluation: no Signal(s) updated: cyclic
Signal state 1 or
edge change
0 → 1
The signal is set to 1 if the control stops automatically prior to the end of the ASUB.
The NST DB21, ... DBX318.0 (ASUP is stopped) is supplied only for the case "Interrupt in a
program mode and channel status stopped".
Signal status 0 or
edge change
1 → 0
The NST DB21, ... DBX318.0 (ASUP is stopped) is set to 0 at Start and Reset.

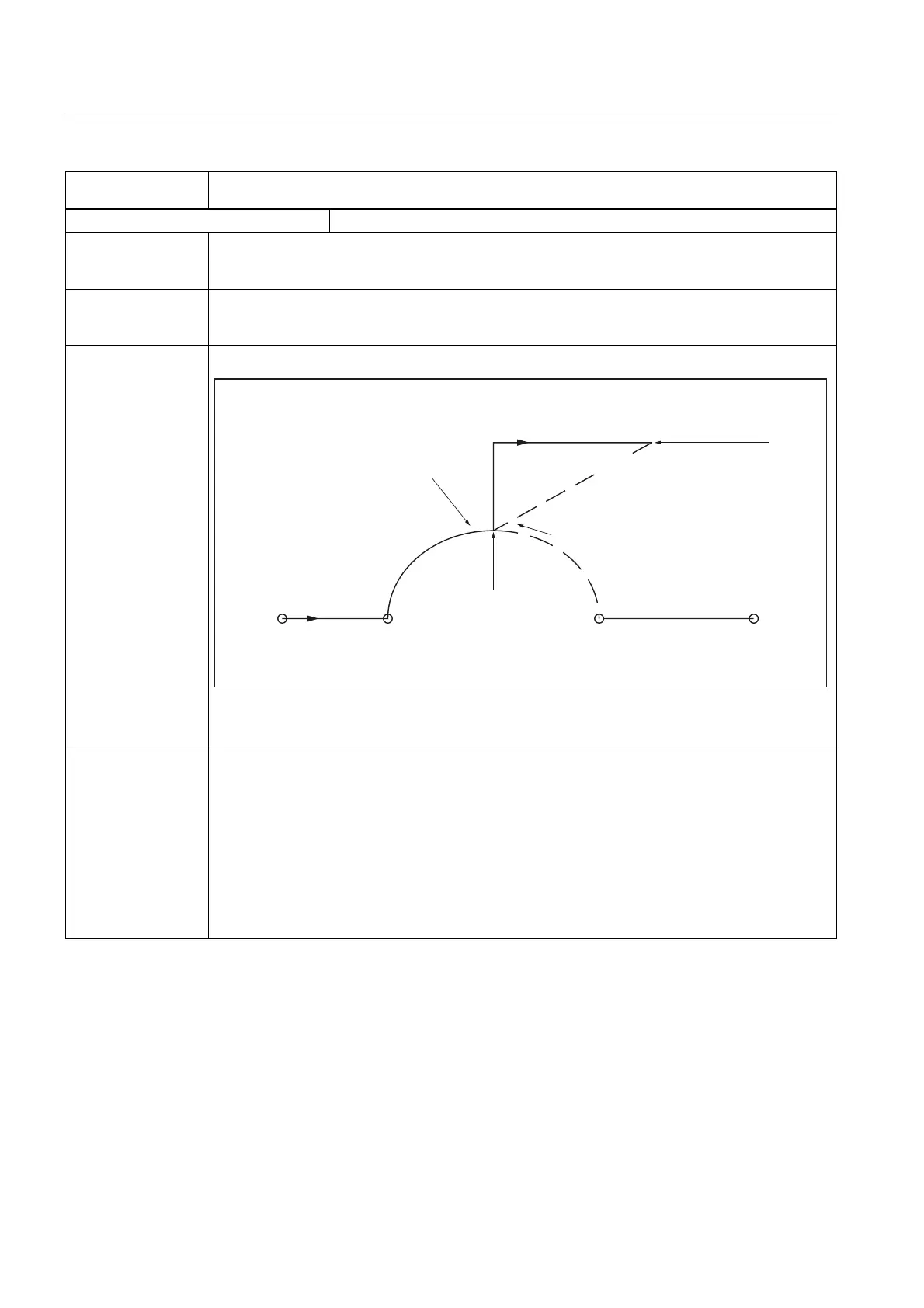

Typical sequence of an ASUB with REPOSA:
&RQWUROKDVVWRSSHG
DXWRPDWLFDOO\
,6$68%VWRSSHGLV
VHW
3DWKPRWLRQRIDQ
$68%ZLWK5(326$
)&EORFNVLJQDOV$68%'RQH
3DWKRIWKHSDUWVSURJUDP
&RQWUROV\VWHPVWRSSHG
$68%LVWKHQVWDUWHGE\WKH
)&
(YHQWWKDWEULQJVWKHFRQWURO
LQWRWKHVWRSSHGVWDWXV
RFFXUV
([DPSOH6WRSNH\
$68%ZLWK5(326$
ASUB with REPOSA
is triggered in the
status AUTOMATIC
mode stopped
If the interrupt routine is ended with REPOSA, then the following sequence is typical:
• The part program is stopped using the stop key, stop-all key or as a result of an alarm.
• The controller assumes program status "Stopped".
• The PLC initiates an ASUB via block FC9.
• Before the re-approach to the contour, the controller stops and goes to program status
"Stopped". NST DB21, ... DBX318.0 (ASUP is stopped) is set.
• The user presses Start. The NST DB21, ... DBX318.0 (ASUP is stopped) is set back, the repeat
approach movement is started.
• At the end of the re-approach motion, the FC9 signal "ASUB done" is set and the path of the
interrupted part program is continued.
