Siemens SINUMERIK 810D Function Manual

Detailed description
2.3 Setpoint /actual-value system
Basic logic functions: Velocities, Setpoint/Actual Value Systems, Closed-Loop Control (G2)
40 Function Manual, 11/2006, 6FC5397-0BP10-2BA0
Special features of SINUMERIK 840D/810D with SIMODRIVE 611 digital:
• MD30110 $MA_CTRLOUT_MODULE_NR[n]
and
MD30220 $MA_ENC_MODULE_NR[n]
always have the same logical drive number with either indirect measuring systems
or if the motor encoder has to be evaluated in the NC.
• If direct measuring systems are installed, you can also configure encoders that are
connected to other drives.
SINUMERIK 810D with axis expansion interface
Integrated drive no. 4 should be assigned to machine axis "X1":
Motor measurement channel X414
Pulse interface X304
Measurement channel no. 6 should be assigned to machine axis "X1":
X416 as direct measuring system.
The logical number of the drive is set automatically to 4.
;
; ;
;;
;
0''5,9(B/2*,*B15
0'180B(1&6
0'&75/287B15 
0'&75/287B02'8/(B15 
0'&75/287B7<3( 
0''5,9(B02'8/(B7<3( 
0'(1&B7<3(
0'(1&B02'8/(B15
0'(1&B,1387B15

'
0*
'
7DEOH
6SLQGOH
/LQHDUVFDOH
3RZHU
$[LVH[SDQVLRQ
LQWHUIDFH
$FWXDOYDOXH
FRQQHFWRU
3RZHUXQLW
H[WHUQDO

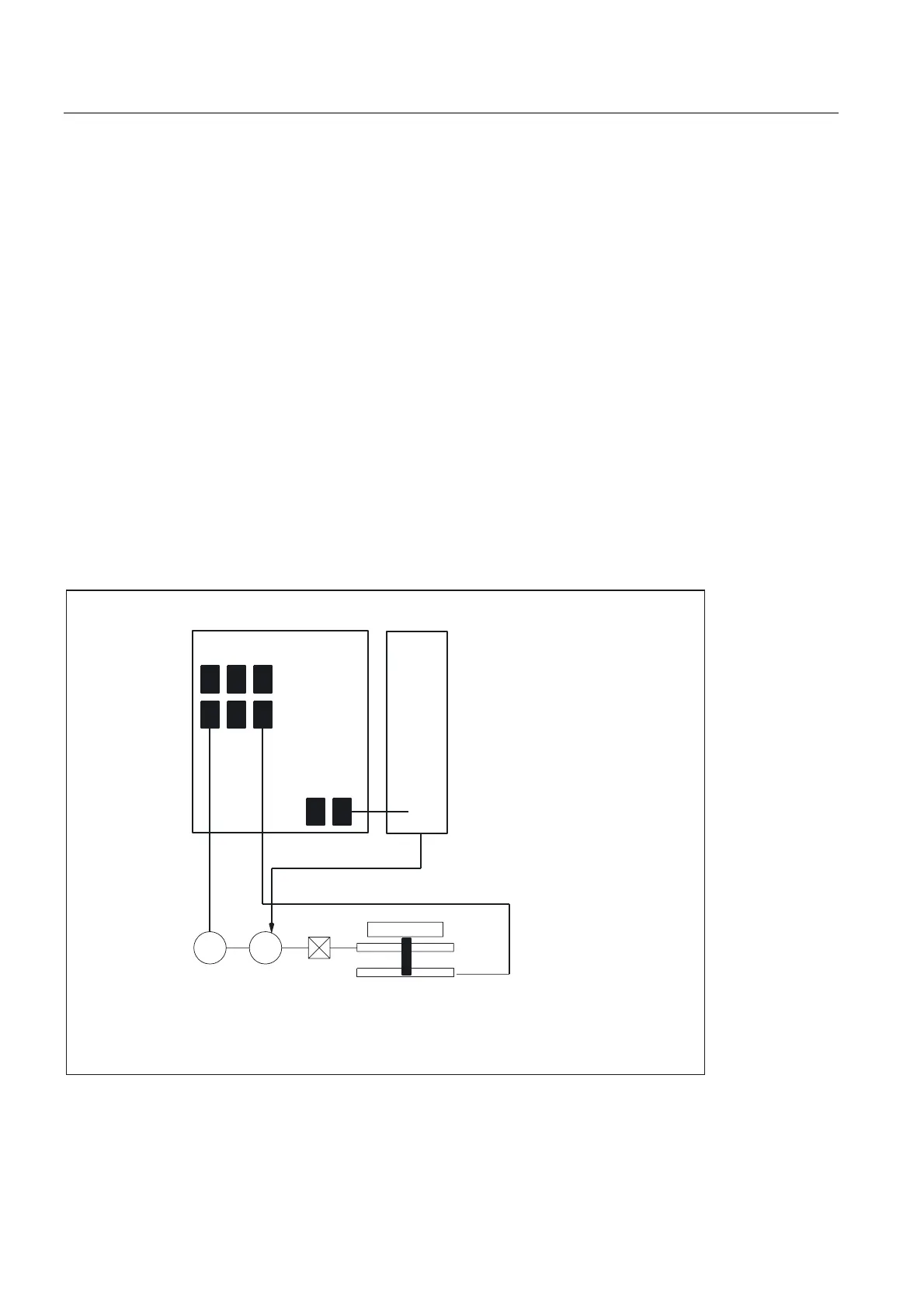

Figure 2-3 Example of setpoint/actual-value routing with axis expansion interface
