Detailed description
2.1 Axis monitoring
Basic logic functions: Axis monitoring, protection zones (A3)
18 Function Manual, 11/2006, 6FC5397-0BP10-2BA0
0RWLRQFRPPDQG
&ODPSD[LV
)HHGVWRS
6HUYRHQDEOH
$[LVFODPSLQJSUHVVXUH
6HWD[LVFODPSLI
0'0$B6723B21B&/$03,1*>@ +
W>PV@
)HHGRYHUULGH
3DWKYHORFLW\
7XUQ
URWDU\
WDEOH
*;$SSURDFK *=$SSURDFK *=0DFKLQH
1
*$
1 1 1

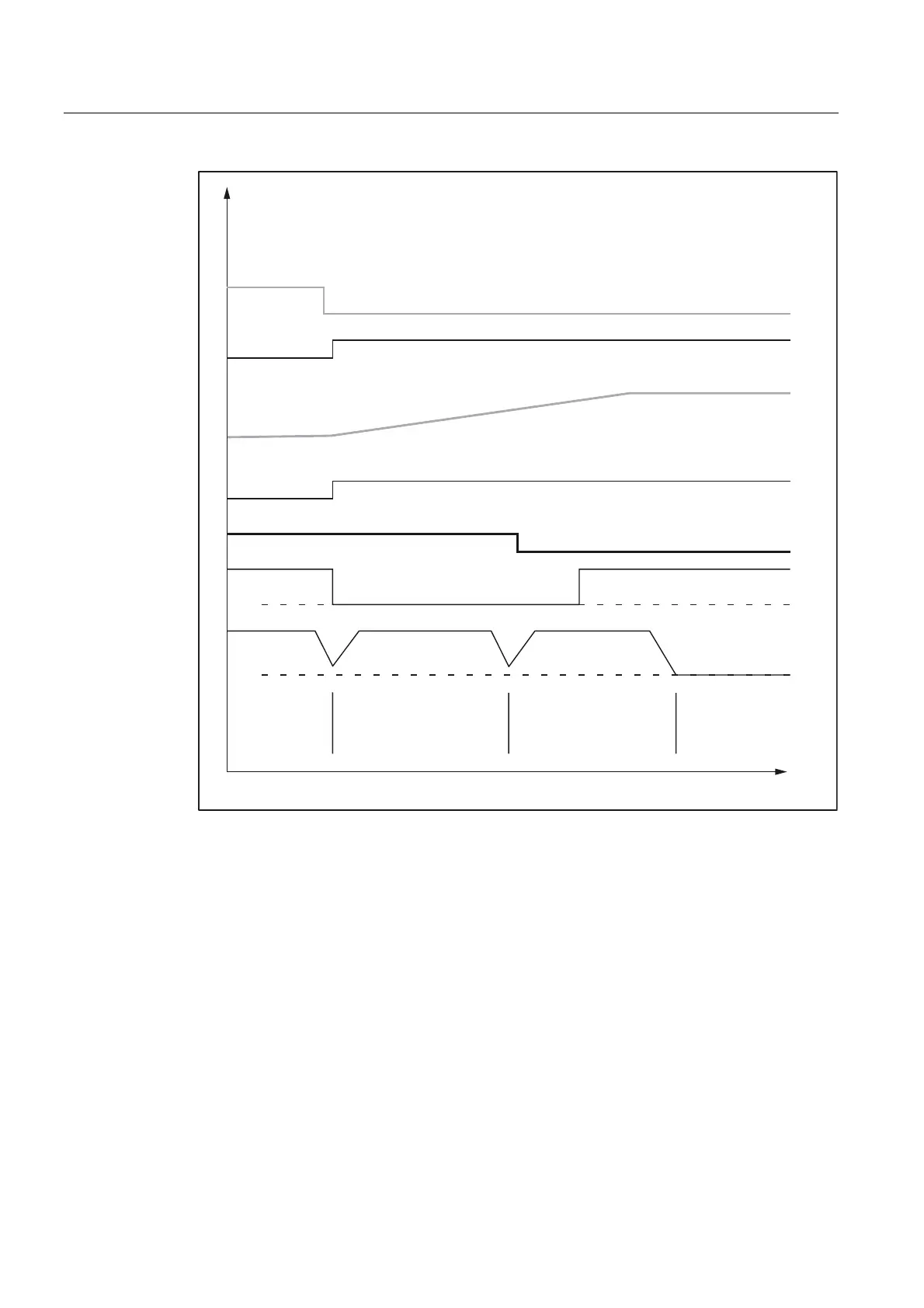

Figure 2-4 Set axis clamp if MD36052 $MA_STOP_ON_CLAMPING = 'H04'
Constraints
Continuous-path mode
For the above-mentioned functions:
• Automatic stopping for removal of the clamp
• Optimized releasing of the axis clamp via travel command
• Automatic stopping for setting of the clamp
the "Look Ahead" function must be active.
Part-program blocks without path motion (e.g., M82/M83) interrupt continuouspath mode and
thus also the "Look Ahead" function.
Example:
The part-program blocks N320 and N420 are inserted in the programming example used.
