Detailed description
2.4 Frames
Basic logic functions: Axes, coordinate systems, frames (K2)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
101

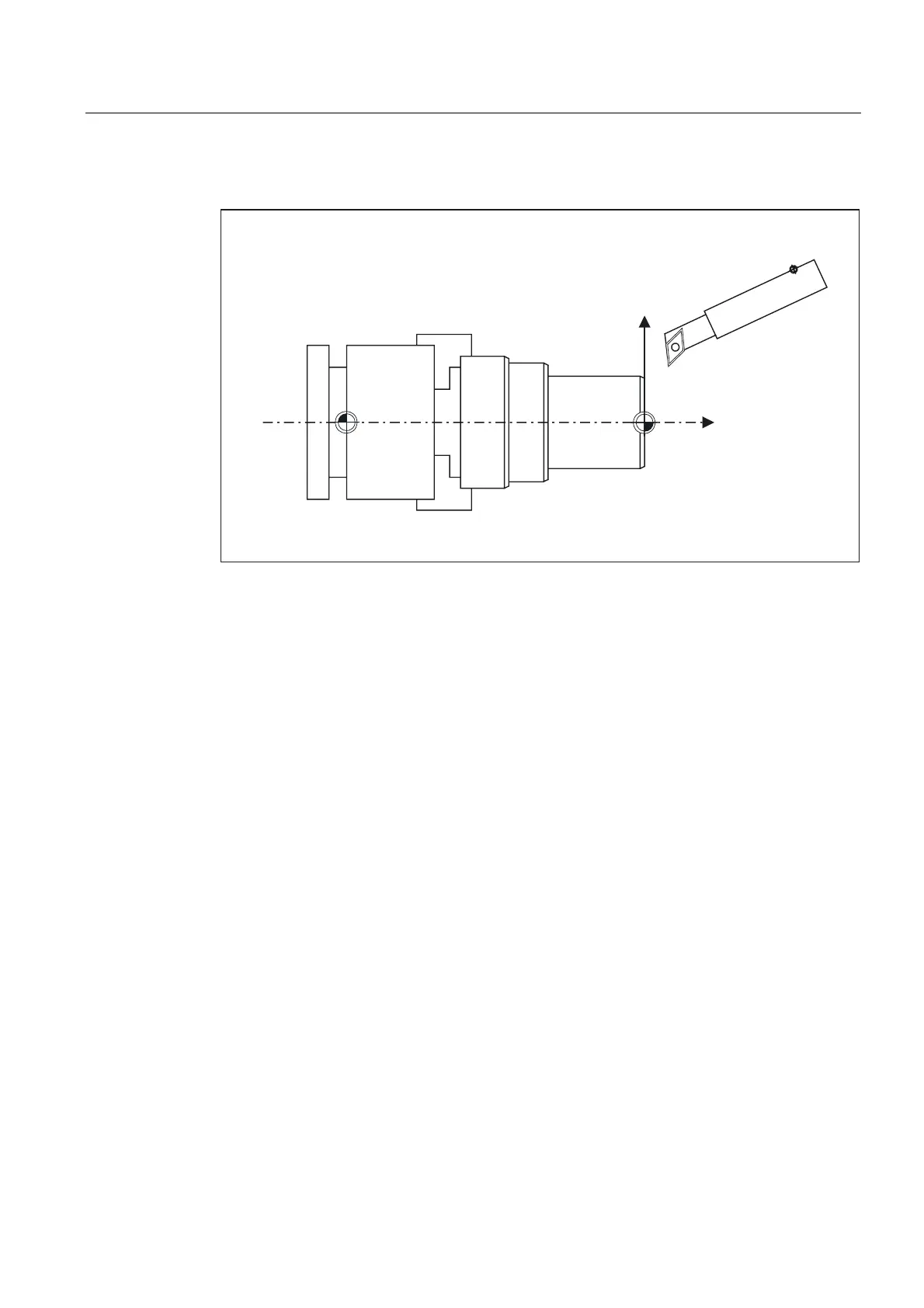

TRAANG
]
[
Frame expansions:
The expansions described below are only valid for the machine data
MD10602 $MN_FRAME_GEOAX_CHANGE_MODE = 1
MD10602 $MN_FRAME_GEOAX_CHANGE_MODE = 2
Translations:
On selecting traang, translations of the virtual axis are retained.
Rotations:
Rotations before the transformation are taken over.
Mirrorings:
Mirrorings of the virtual axis are taken over.
Scalings:
Scalings of the virtual axis are taken over.
Example:
Machine data for TRAANG:
