Accessories
12.3 SIRIUS infeed system for 3RA6
SIRIUS 3RA6 Compact Starter
98 System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
Each slot is individually coded for compact starters with a particular current setting range.
$ $
$ $
$
$
$ $ $
$
    

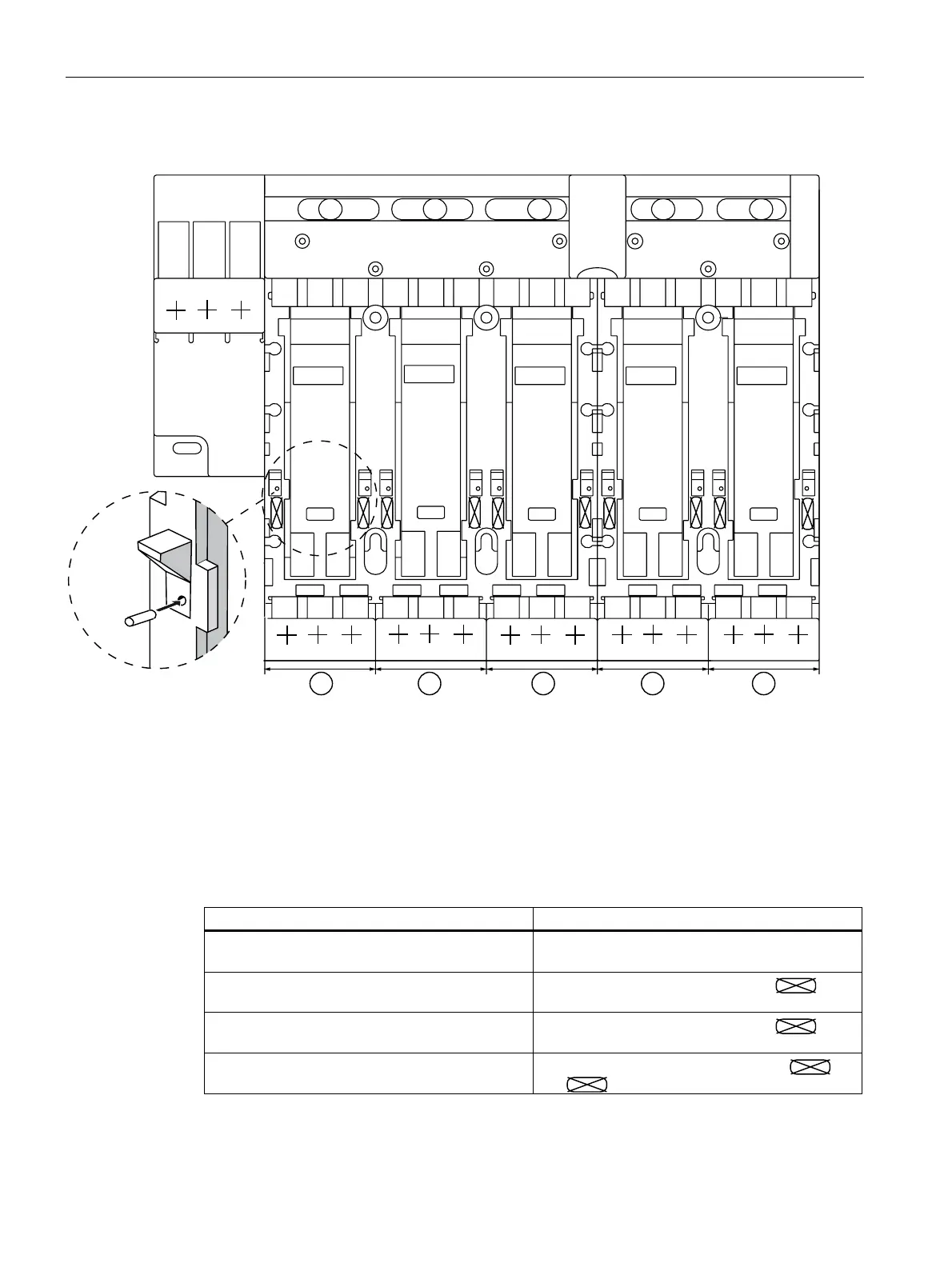

Figure 12-3 Coding the SIRIUS infeed system for 3RA6
(1) Slot 1 coding (4) Slot 4 coding
(2) Slot 2 coding (5) Slot 5 coding
(3) Slot 3 coding
The following options are available for coding the infeed system slots:
Coding Procedure
No locking. i.e. all types of compact starter can be
installed
No measures required, i.e. no cylindrical pin
needs to be inserted into the infeed system slot
Compact starters for the current setting range
3 - 12 A must not be used.
Insert the cylindrical pin into the hole
 $
.
Compact starters for the current setting range
8 - 32 A must not be used.
Insert the cylindrical pin into the hole
 $
.
Compact starters for the current setting range
3 - 12 A and 8 - 32 A must not be used.
Insert the cylindrical pins into the holes
 $
and
 $
.
