Siemens SIRIUS Series System Manual

System description
3.2 System configuration
SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
15
3.2 System configuration
Main circuit
The following supply options are available for the compact starter's main circuit:
● Parallel wiring
● Infeed system for 3RA6
(For additional information, please refer to "
SIRIUS infeed system for 3RA6 (Page 95)".)
● 3-phase busb
ar
(For additional information, please refer to "
3-phase busbar (Page 117)".)
● 8US busbar
adapter
(For additional information, please refer to "
8US busbar adapter (Page 121)".)
Control circuit
The control circuit can be structured as follows:
Table 3-3 Control circuit (configuration)
Compact starter Control system
Compact starter without optional AS-i mounting
module
Parallel wiring to control system (e.g. PLC)
Compact starter (24 V) with optional
AS-i mounting module
AS-Interface
Examples of how the compact starter can be integrated into the automation environment
 

$6,QWHUIDFH
$6,QWHUIDFH
6 
(76
3%31
$6 L /LQN
 )
352),%86352),QHW

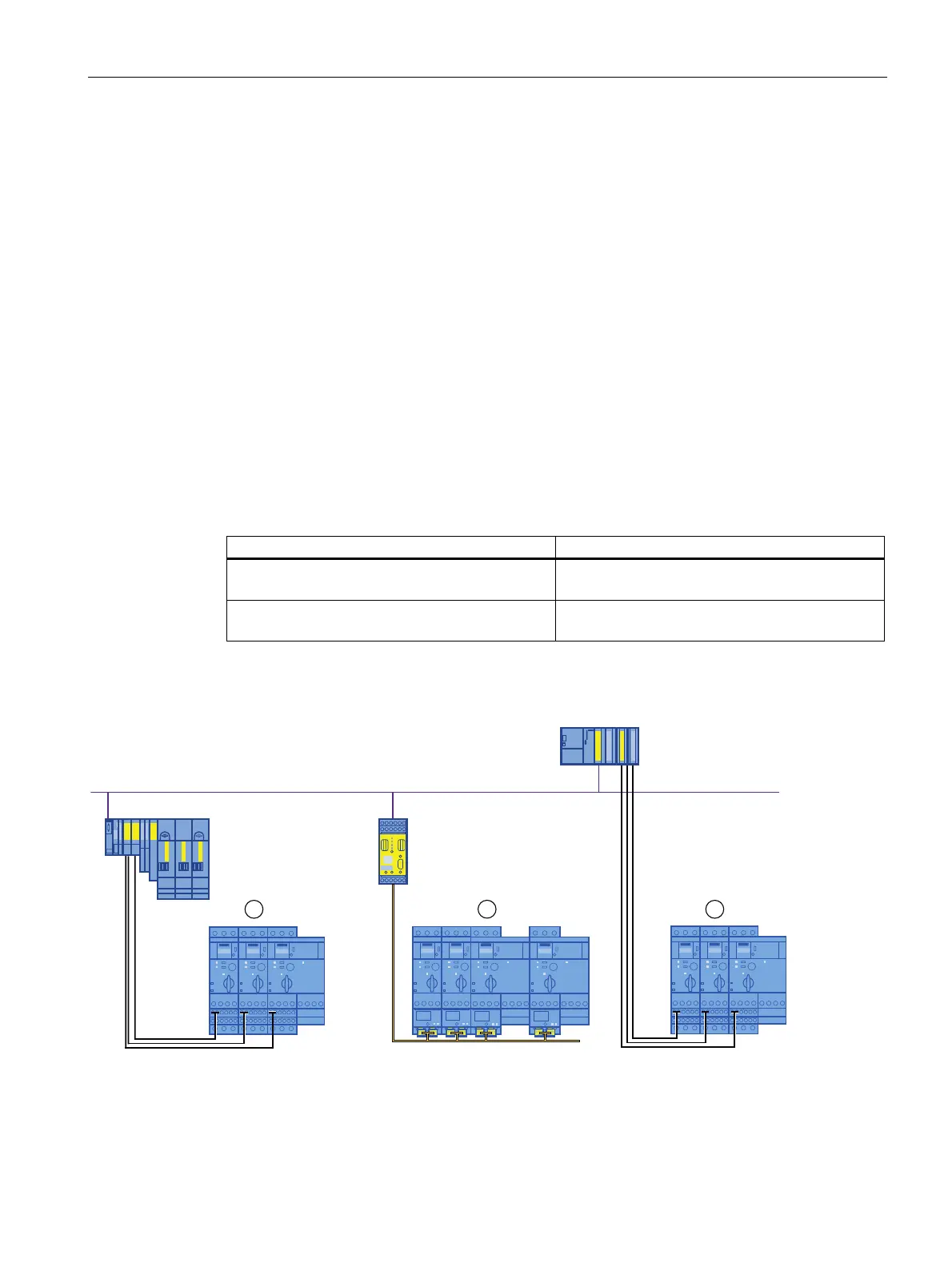

Figure 3-1 Integration into the automation environment
(1) 3RA6 compact starter without AS-i mounting module
(2) 3RA6 compact starter with AS-i mounting module
