Accessories
12.3 SIRIUS infeed system for 3RA6
SIRIUS 3RA6 Compact Starter
108 System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
12.3.6 Removing the accessories for a SIRIUS infeed system for 3RA6
Requirements
DANGER
Danger, high voltage!
Electrical voltage can result in electric shocks or burns.
Before starting work, disconnect the system and devices from the power supply.
● The compact starters and circuit breakers must have been removed from the infeed
system for 3RA6. For additional information on this topic, please refer to "Removing the
compact
starter from a SIRIUS infeed system for 3RA6 (Page 66)".
● Flat-head screwdriver with max. blade wi
dth of 3 mm and total max. length of 120 mm for
levering out the link wedges and releasing the PE tap and PE extension connectors.

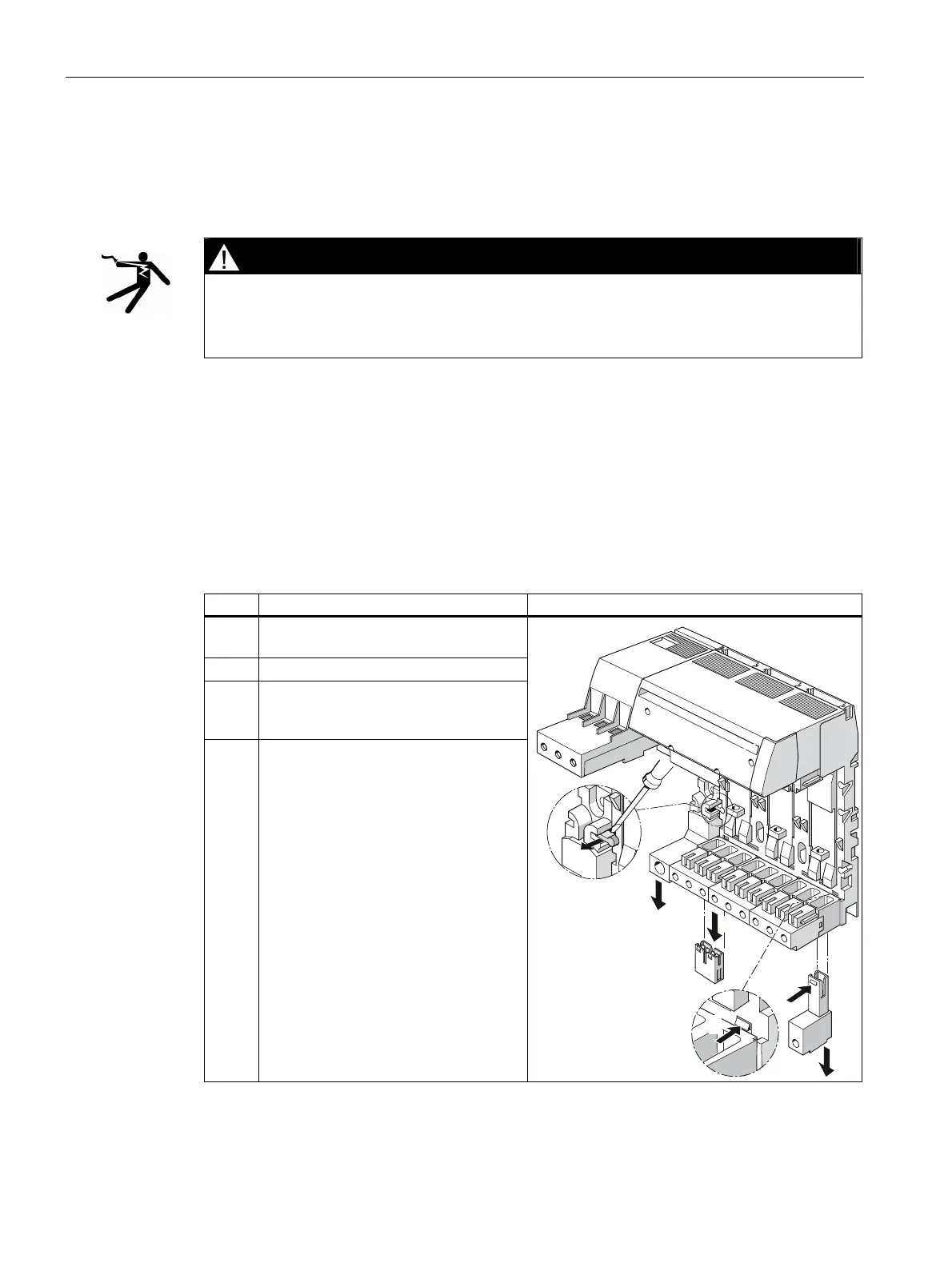

Removing PE accessories
The PE infeed is mounted on the right or left of the base carrier.
Step Instructions Image
1 Use a screwdriver to lever out the link
wedge.
2 Push the PE infeed downwards.
3 Pull the PE extension connector down
and out and then remove the PE infeed
sideways.
4 Press the clip on the PE tap backwards
and then pull the PE tap down and out
of the infeed or extension module.
1
2
3
4
4
4
