Siemens SIRIUS Series System Manual

Dimension drawings
15.2 SIRIUS infeed system for 3RA6
SIRIUS 3RA6 Compact Starter
166 System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
3RA6830-5AC







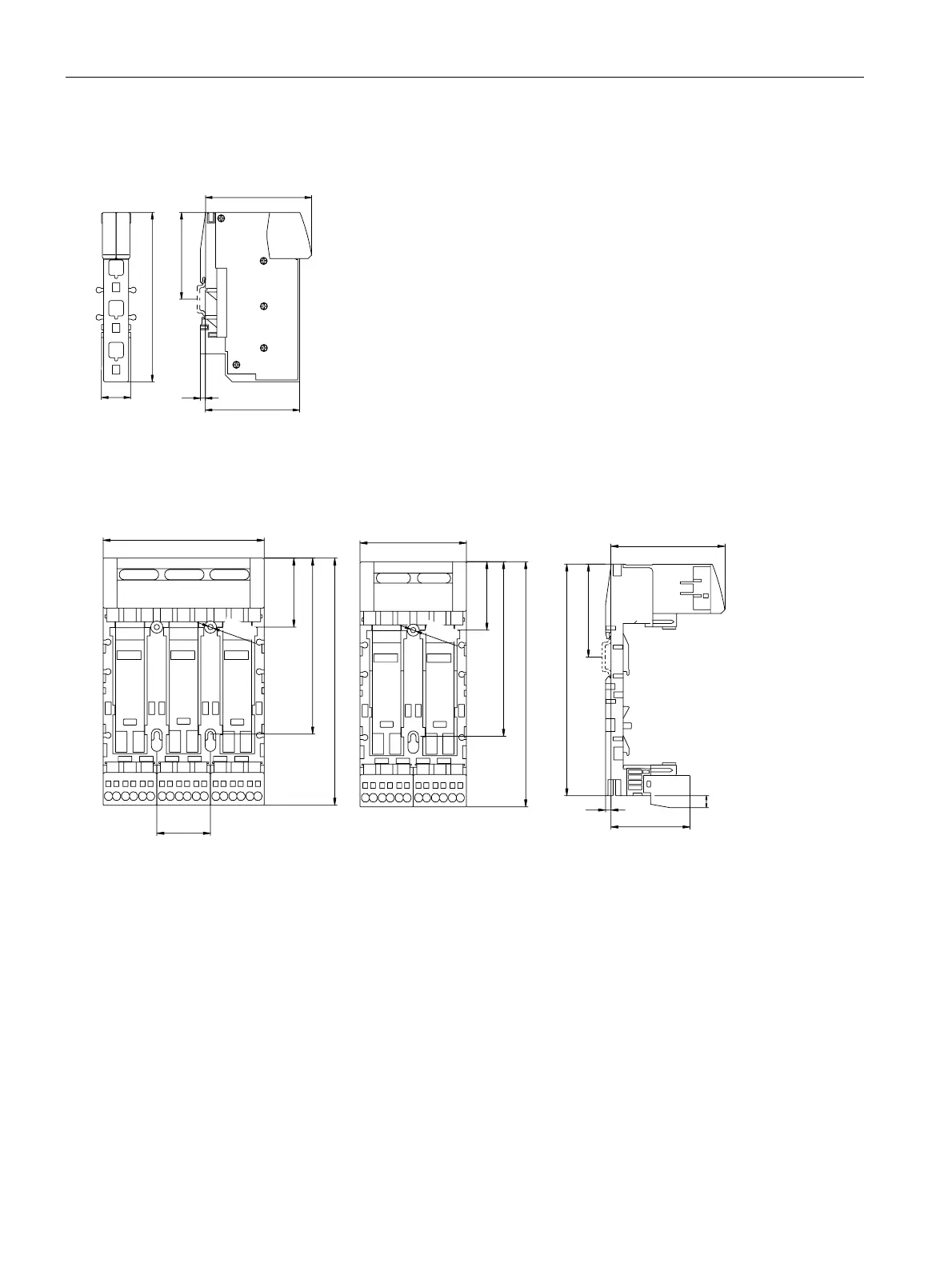

Figure 15-7 Dimension drawing of spring-loaded infeed
3RA6823-0AC, 3RA6822-0AC
97
10
79
197
67
5
45
148
58
208
135
Ø 4,5
148
90
58
208
Ø 4,5
Figure 15-8 Dimension drawing of extension blocks featuring outgoing terminals with spring-loaded connection technology
