Accessories
12.2 External auxiliary switch block
SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
93
12.2.3 Connecting the auxiliary switch block for compact starter
The terminals on the auxiliary switch block are available with screw-type or spring-loaded
connection technology.
For additional information on the connection systems, please refer to "
Connecting terminal
blocks (Page
73)".
Pin assignments

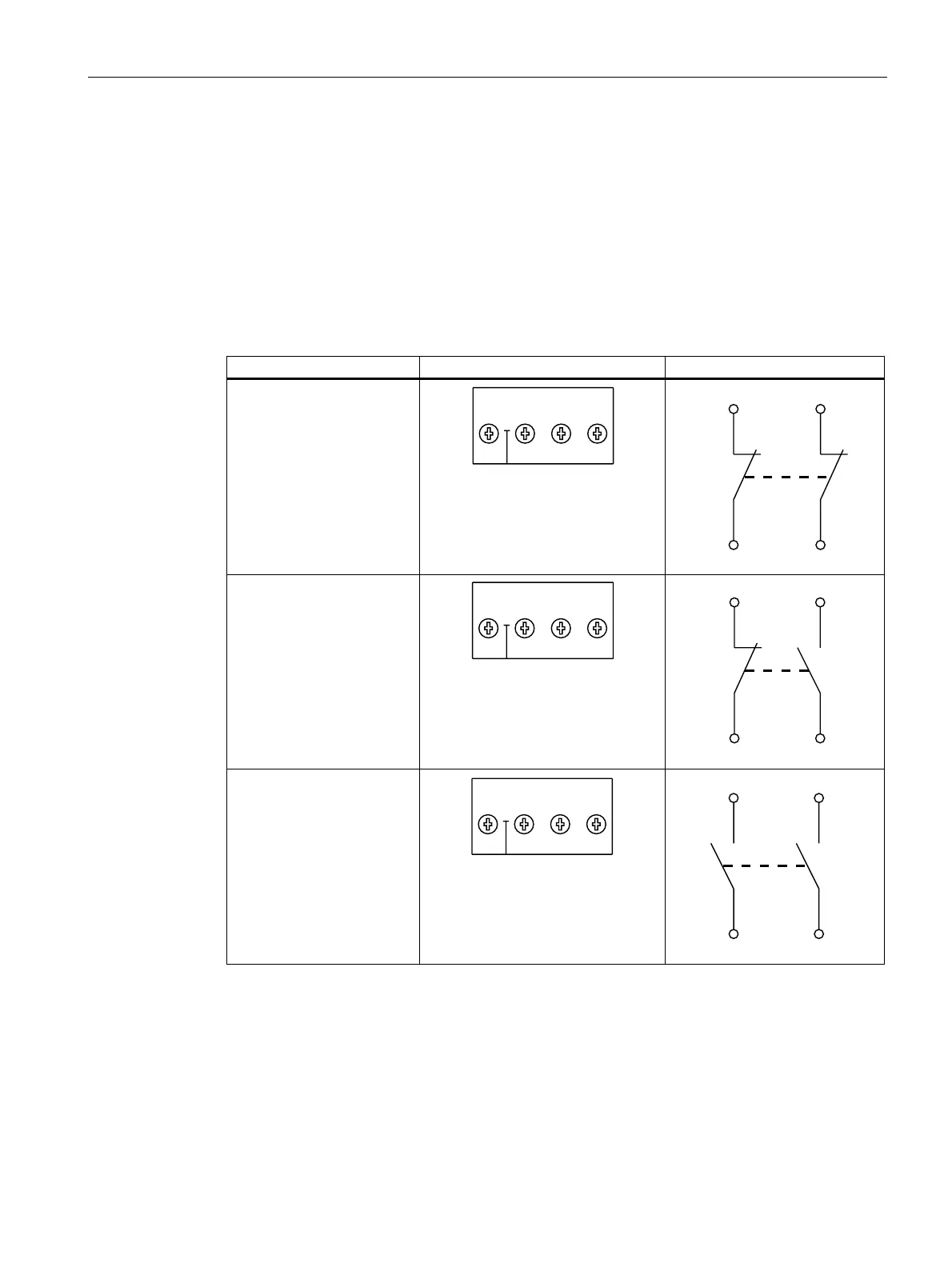

Table 12-1 Pin assignments on the auxiliary switch block for compact starter
Auxiliary switch block View Meaning
2 NC contacts
.1N C
.2NC .1NC
.2NC
1 NO contact + 1 NC
contact
.1N C
.2NC .3NO
.4NO
2 NO contacts
.3NO
.4NO .3NO
.4NO
