Siemens SIRIUS Series System Manual

Accessories
12.7 Door-coupling rotary operating mechanism
SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
131
FD   1

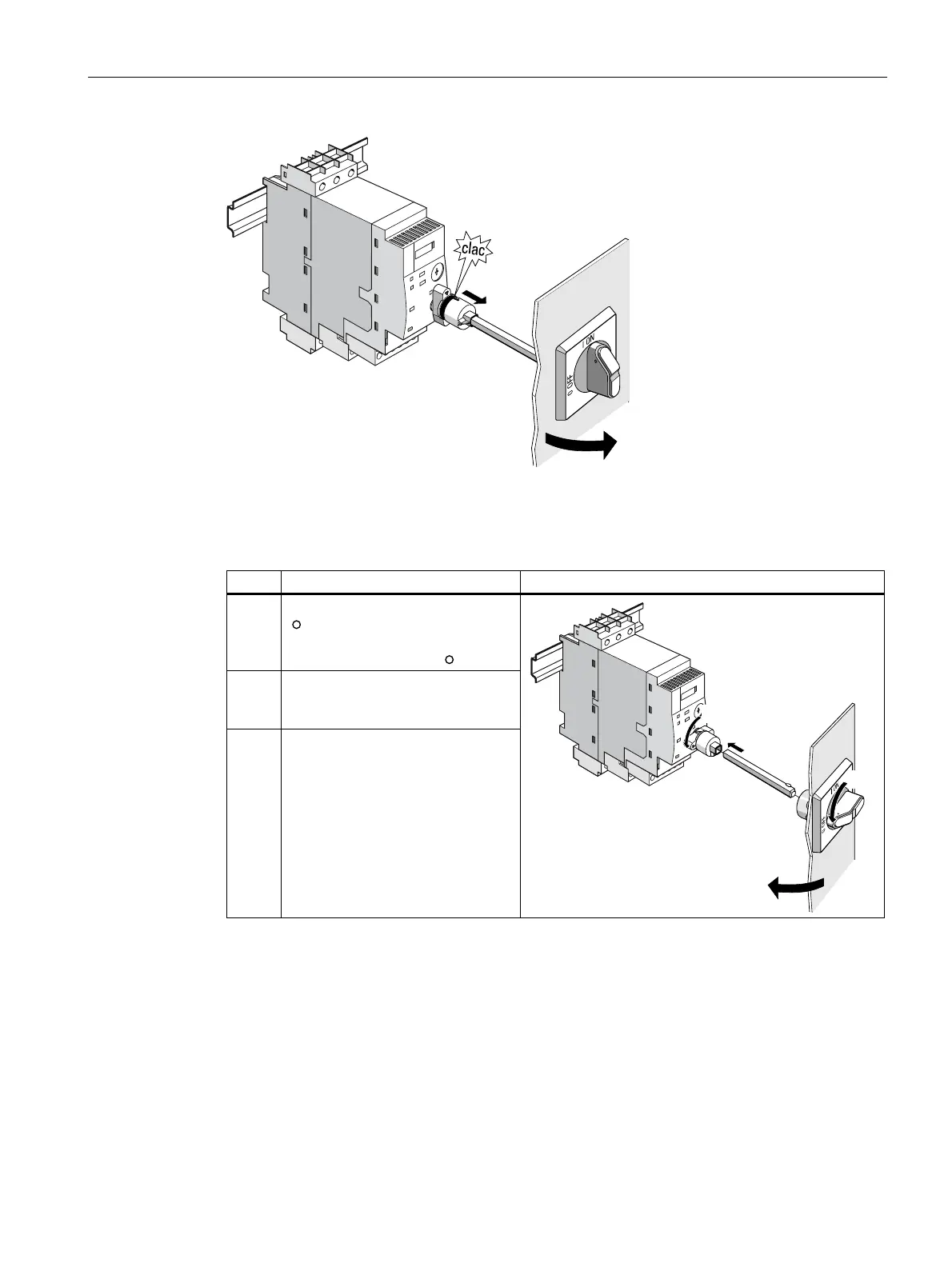

Figure 12-10 Door-coupling rotary operating mechanism; operating information
The extension shaft then needs to be attached to the compact starter and door-coupling
rotary operating mechanism as described below:
Step Instructions Image
1 Switch off the compact starter
(
OFF) and turn the rotary switch
of the door-coupling rotary
operating mechanism to
OFF.
2 Attach the extension shaft cap to
the rotary switch and then insert
the extension shaft into the cap.
3 Close the control cabinet door.
3
2
1
1
