Accessories
12.3 SIRIUS infeed system for 3RA6
SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
113
Openings for test probes
On the infeed system with screw-type connection technology, the test probes are attached to
the terminal screws.
On the infeed system with spring-loaded connection technology, all terminals are equipped
with special test probe openings.

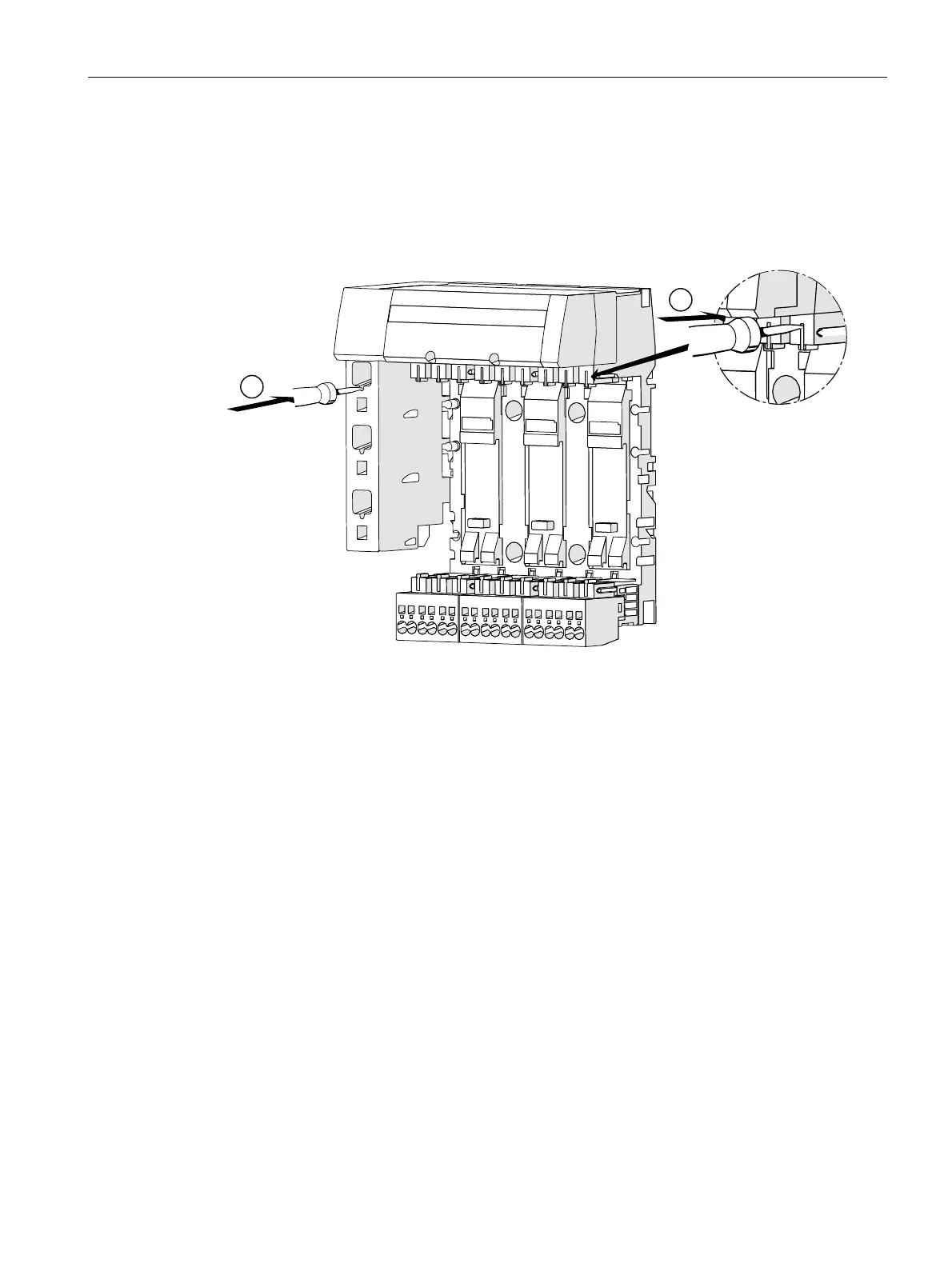

Figure 12-6 Test probe openings on the infeed system
Openings for test probes on
(1) The spring-loaded infeed
(2) The extension blocks
