Installation/Removal
8.1 Installing the SIRIUS 3RA6 compact starter and AS-i mounting module
SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
61
Virtually the same process is used for installing the reversing starter on a level surface as for
the direct starter. However, in this case 2 additional adapters just need to be snapped onto
the reversing starter and a single lug is used for surface mounting.

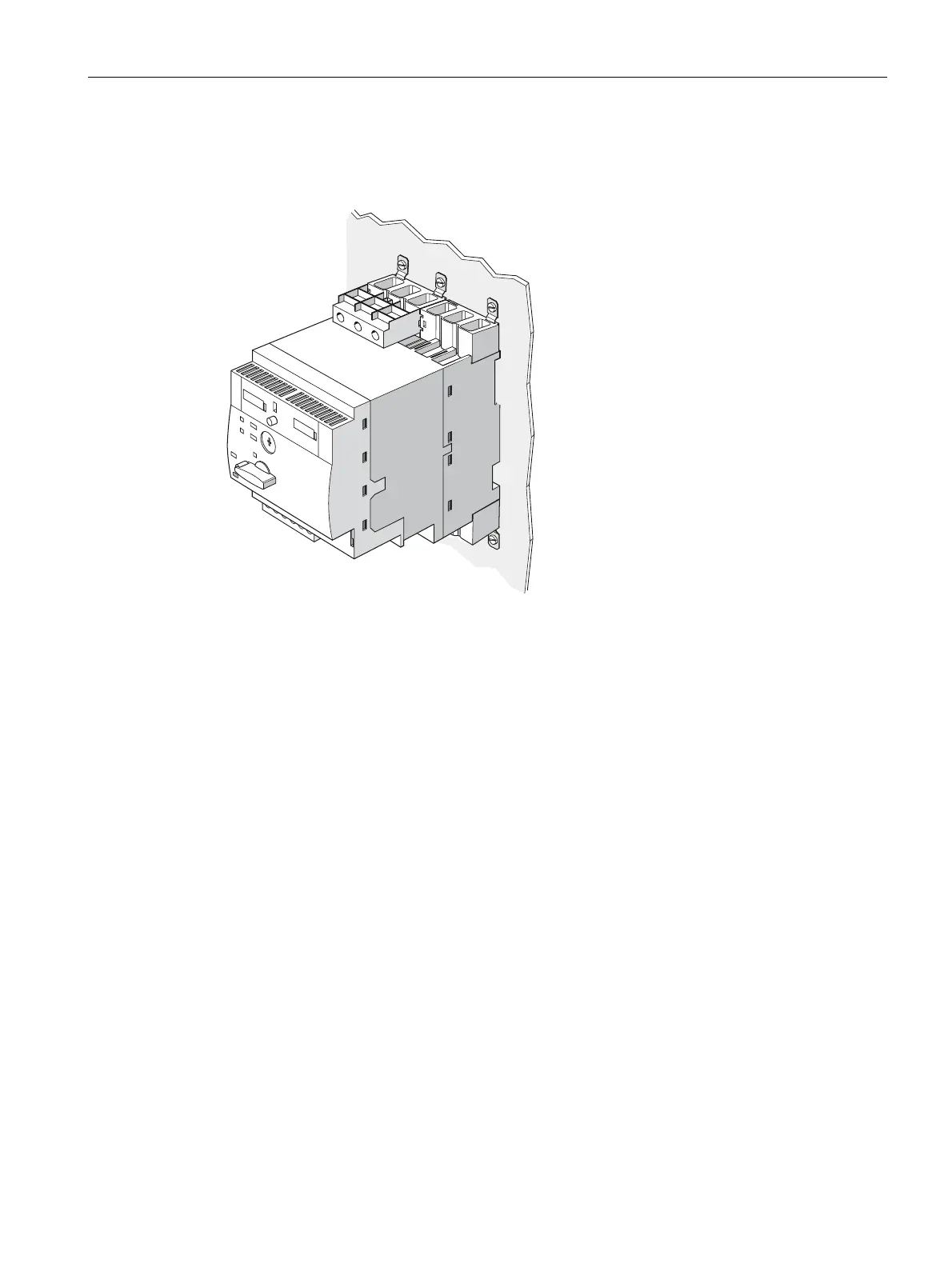

Figure 8-1 Installing a 3RA62 compact starter on a level surface (screw fastening)
