8.1 Installing the SIRIUS 3RA6 compact starter and AS-i mounting module
SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
63
8.1.4 Installing the AS-i mounting module
Requirements
NOTICE
There is a risk of damage to the AS-i mounting module.
If you install the AS-i mounting module on a compact starter that has a control voltage of
more than 24 V, the AS-i mounting module will be supplied with too much power. This will
damage the AS-i mounting module.
Only install the AS-i mounting module on a compact starter with a control voltage of 24 V.
NOTICE
There is a risk of damage to the AS-i mounting module.
When installing the AS-i mounting module, please observe the ESD regulations, as
electrostatic charging can damage it.
● The auxiliary and control conductor terminal blocks must be removed from the compact
starter (24 V) (for information on removing the auxiliary and control conductor terminal
blocks, please refer to "
Installing/Removing auxiliary and control conductor terminal
blocks (Pag
e 135)").
● The co
mpact starter must be switched off (actuator set to
OFF position).
Procedure

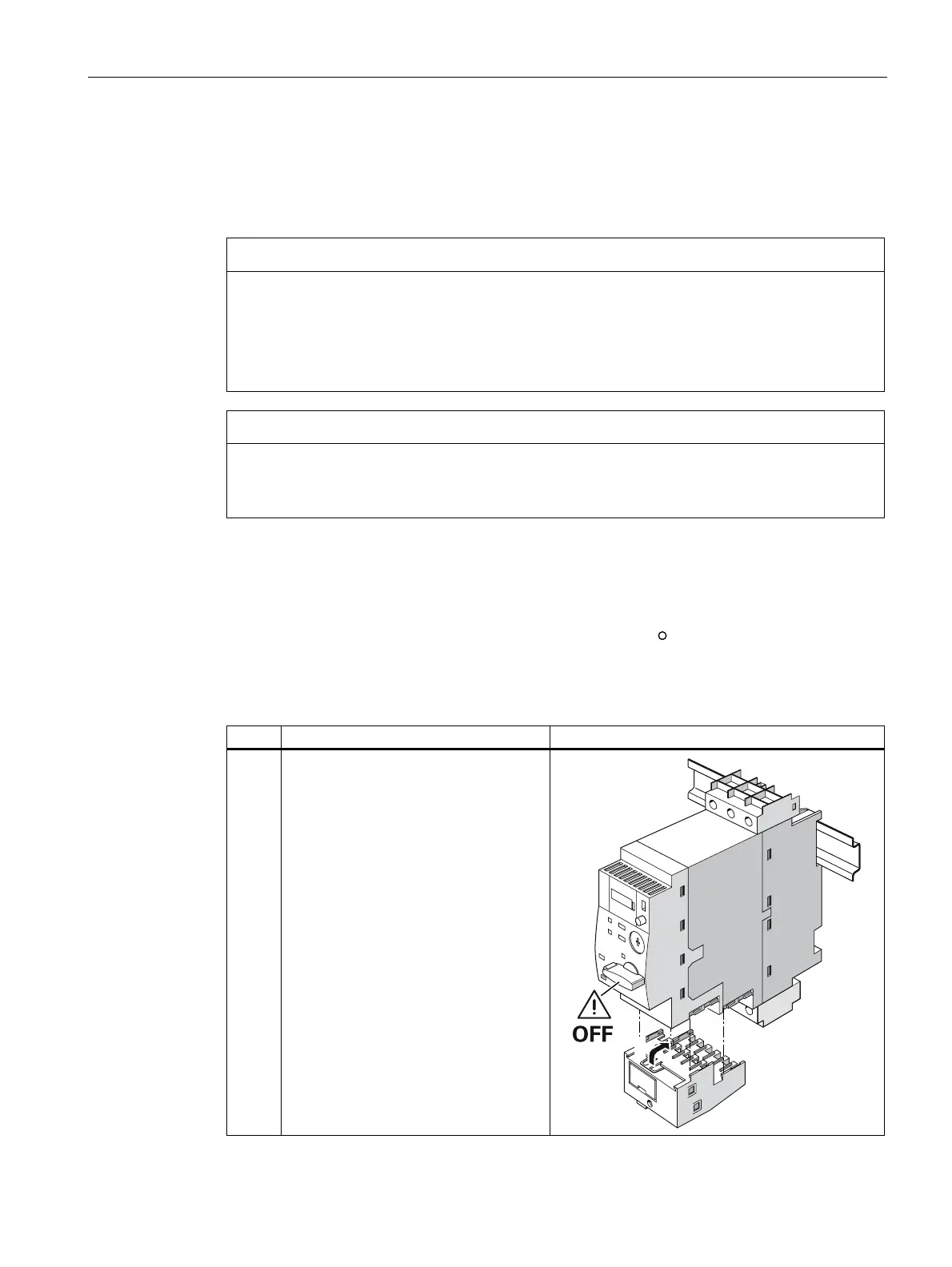

Step Instructions Image
1 Insert the AS-i mounting module into the
mechanically coded guiderail on the
device from the bottom and then push it
back until you hear it engage.
1
