Connecting
9.5 Disconnecting terminal blocks
SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
79

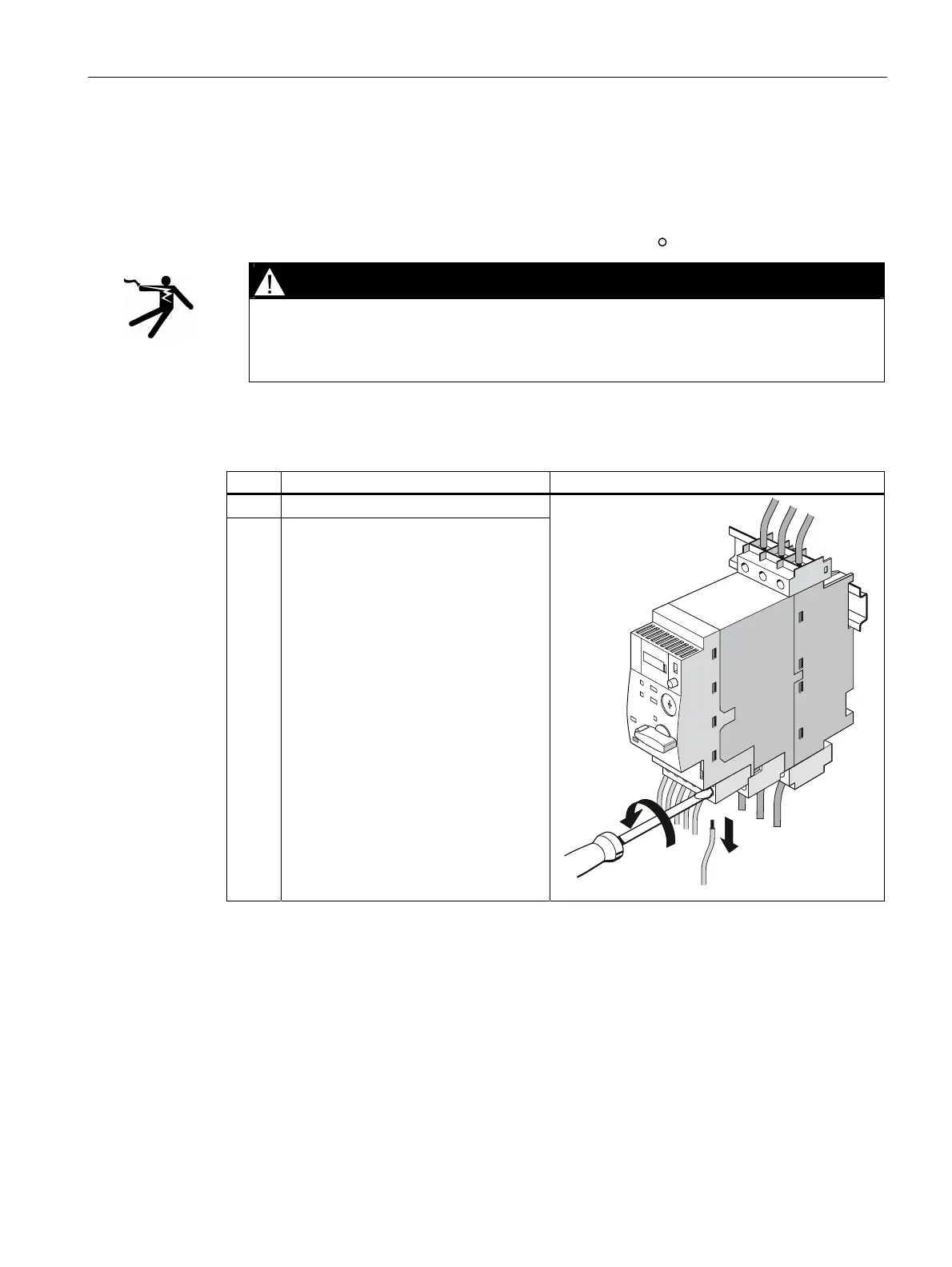

9.5 Disconnecting terminal blocks
Requirements
● The compact starter must be switched off (actuator set to OFF position).
DANGER
Danger, high voltage!
Electrical voltage can result in electric shocks or burns.
Before starting work, disconnect the system and devices from the power supply.
Procedure for screw terminals
Step Instructions Image
1 Undo the screw of the screw terminal.
2 Remove the cable from the unscrewed
screw terminal.
1
2
