Service
13.2 Installing/Removing auxiliary and control conductor terminal blocks
SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
135
13.2 Installing/Removing auxiliary and control conductor terminal blocks
Installing auxiliary and control conductor terminal blocks on the compact starter
The auxiliary and control conductor terminals are mechanically coded to prevent mix-ups.
The terminals are marked as follows:
$
B

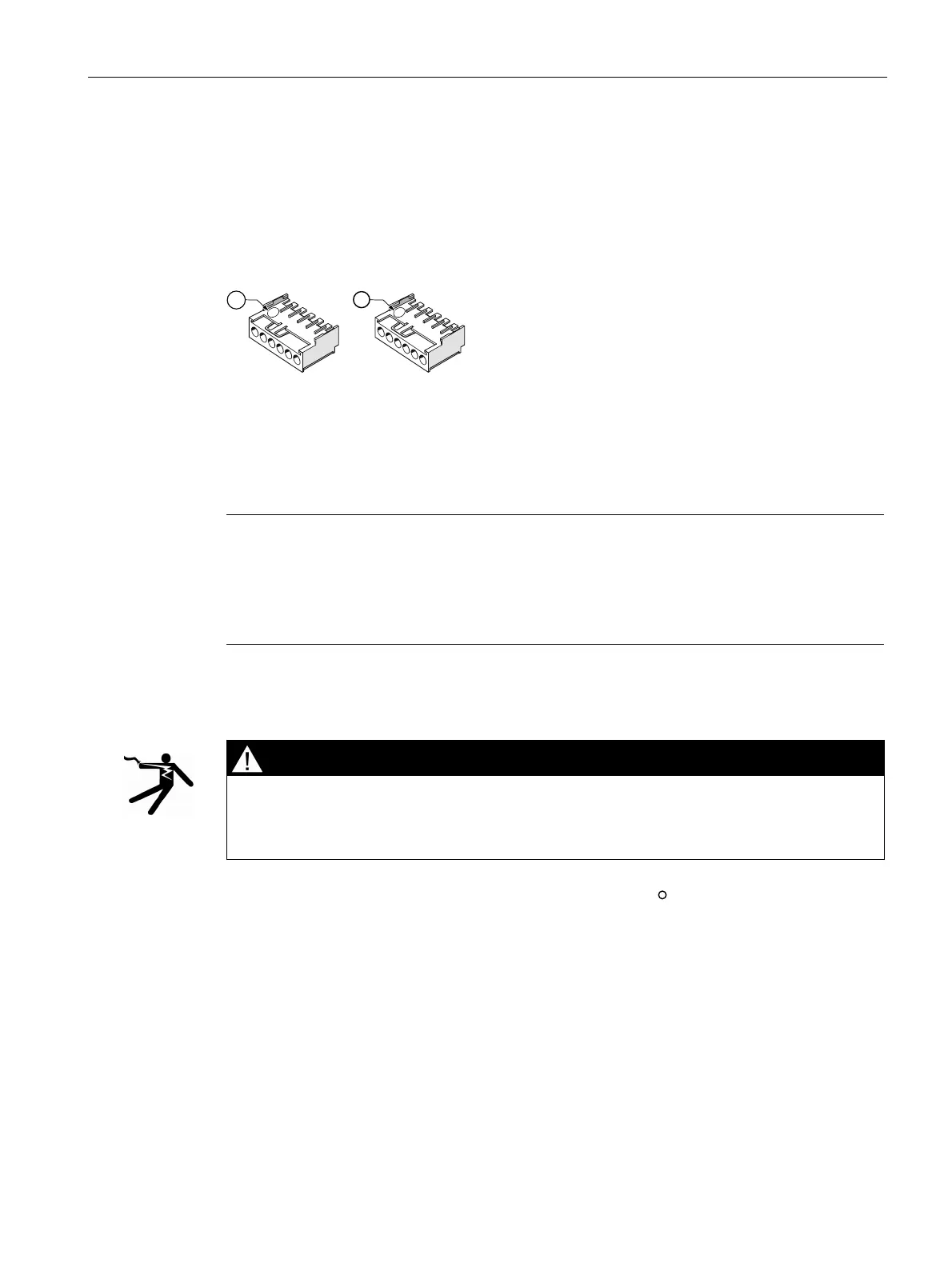

Figure 13-1 Coding of auxiliary and control conductor terminals
① A: Top/front mounting position on compact starter
② B: Bottom/rear mounting position on compact starter
Note
The auxiliary and control conductor terminal blocks can only be installed in the following
order because of how they are arranged:
1. Lower/rear auxiliary circuit terminal (B)
2. Top/front control circuit terminal (A)
Requirements
DANGER
Danger, high voltage!
Electrical voltage can result in electric shocks or burns.
Before starting work, disconnect the systems and devices from the power supply.
● The compact starter must be switched off (actuator set to OFF position).
