Siemens SIRIUS Series System Manual

System description
3.2 System configuration
SIRIUS 3RA6 Compact Starter
16 System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
3.2.1 System configuration without optional AS-i mounting module
Configuration
The compact starter is connected to the control system via parallel wiring. Control takes
place via the following terminals:
● Direct starter: A1+, A2-
● Reversing starter: A1+, A2/B2-, B1+
View
SIRIUS
WARNING
SIRIUS
WARNINGWA
RNING
SIRIUS
WARNING
SIRIUS

0
0
0
0

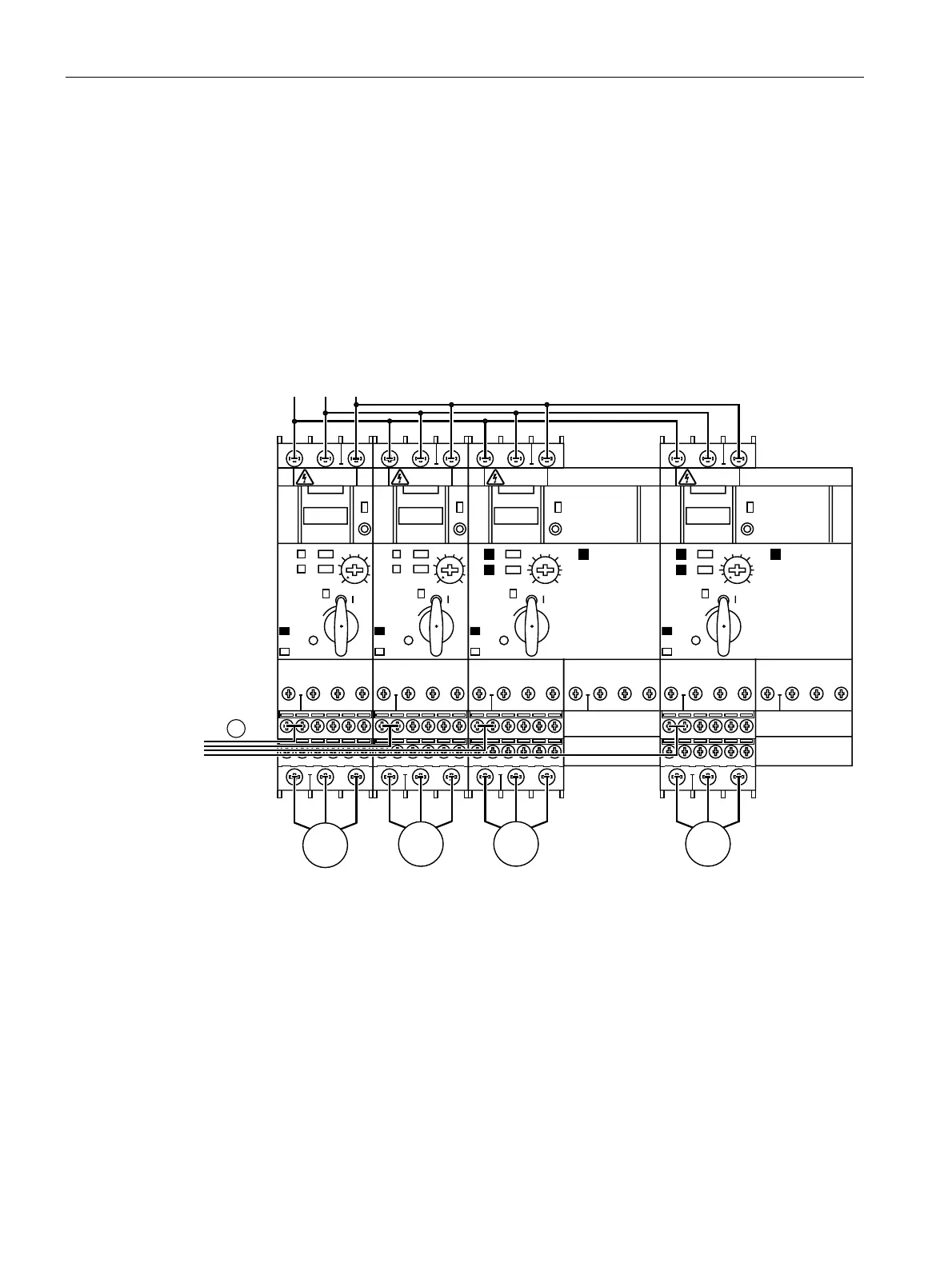

Figure 3-2 SIRIUS 3RA6 compact starter without AS-i mounting module (system configuration)
(1) Connection to control system (e.g. PLC)
