12.2 External auxiliary switch block
SIRIUS 3RA6 Compact Starter
94 System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
Conductor cross-sections

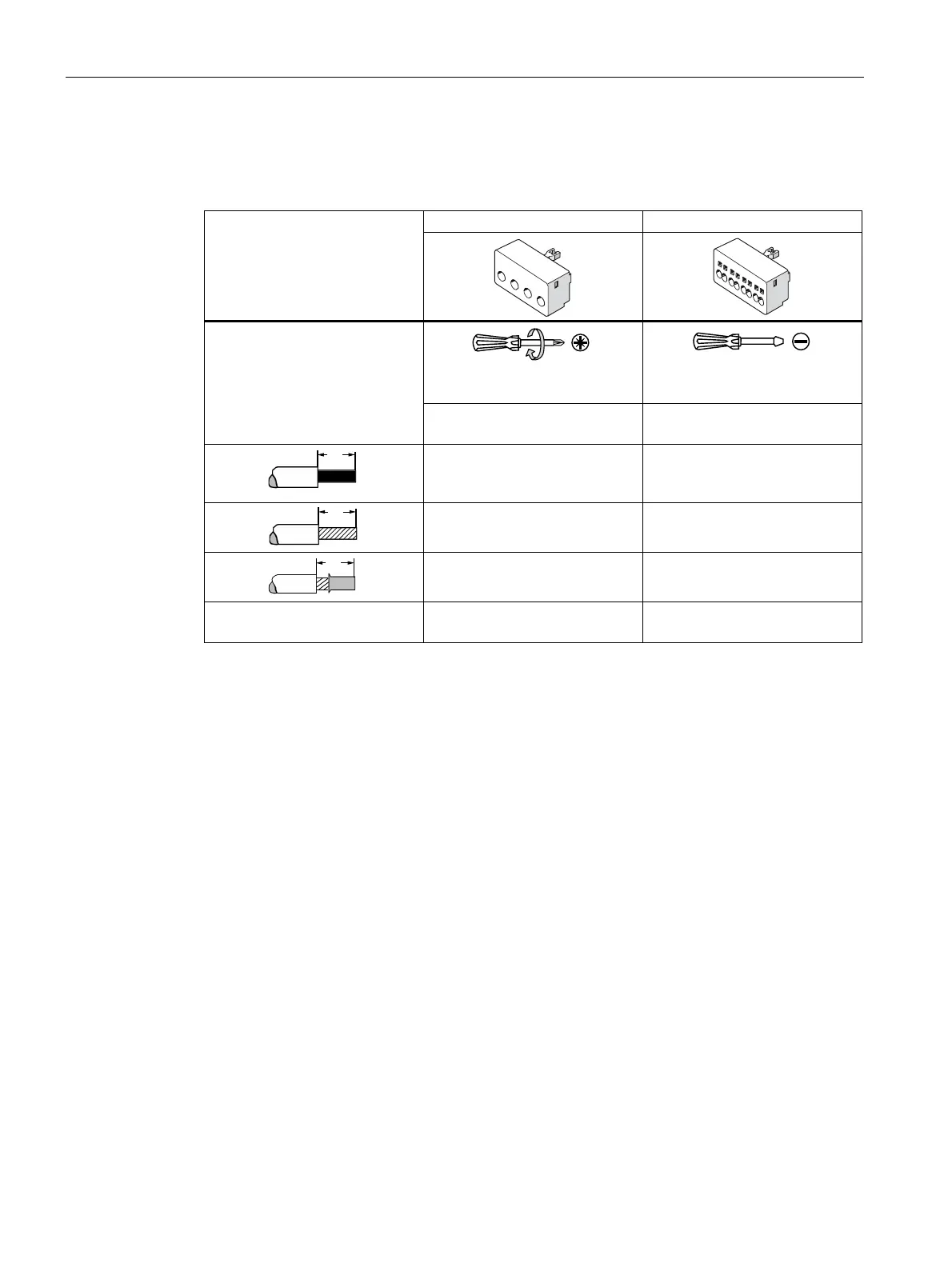

Table 12-2 Conductor cross-section of the terminals on the auxiliary switch block for compact starter
3RA691.-1A 3RA691.-2A
∅ 6 mm/PZ 2
8WA2 807
(2.5 x 0.4) mm
0.8 ... 1.2 Nm
(7 to 10.3 lb·in)
-

2 x (0.5 ... 1.5) mm
2
2 x (0.75 ... 2.5) mm
2
max. 2 x (1 ... 4) mm
2
2 x (0.25 ... 2.5) mm
2

- 2 x (0.25 ... 2.5) mm
2

2 x (0.5 ... 1.5) mm
2
2 x (0.75 ... 2.5) mm
2
2 x (0.25 ... 1.5) mm
2
AWG 2 x (20 to 16)
2 x (18 to 14)
2 x (24 to 14)
